FOX 883-09-153 3.0 Live Valve Rear Shocks for 19-20 Ford Raptor 0-1"

Vehicle Fitment

• 2019-2020 Ford F-150 Raptor (Rear Shocks, 0-1" Lift/Stock Ride Height) - 4WD, All Engines
• Live Valve semi-active shock system integrates with factory electronics

Features

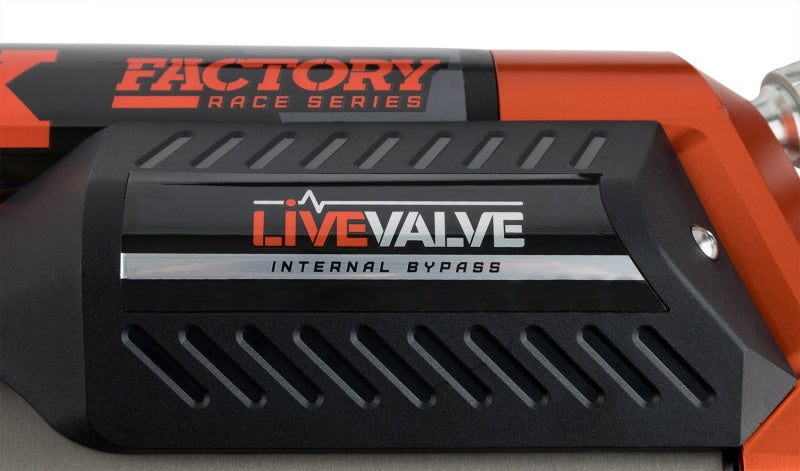

• FOX Factory Race Series 3.0 Live Valve internal bypass rear shocks

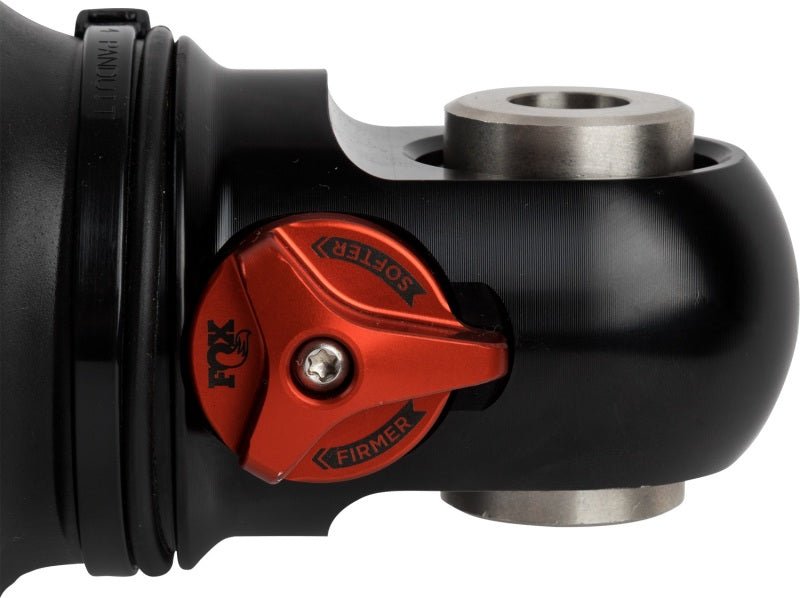

• Quick Switch Technology (QS3) for rebound and compression adjustment
• Live Valve semi-active adaptive damping based on vehicle sensors

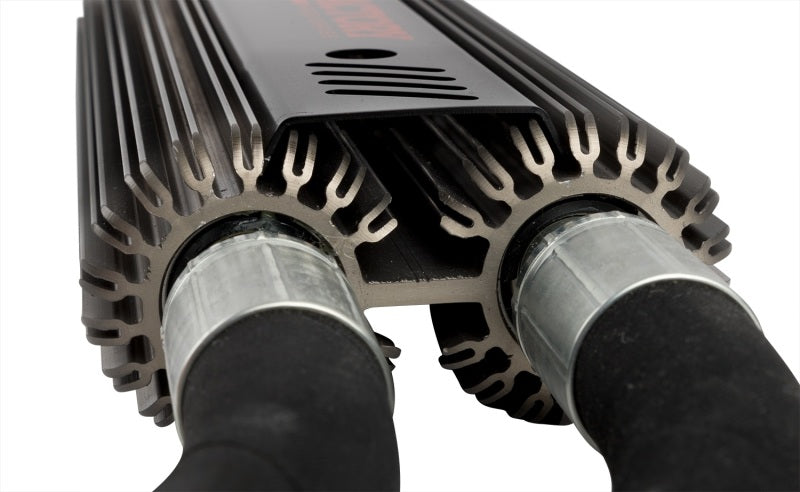

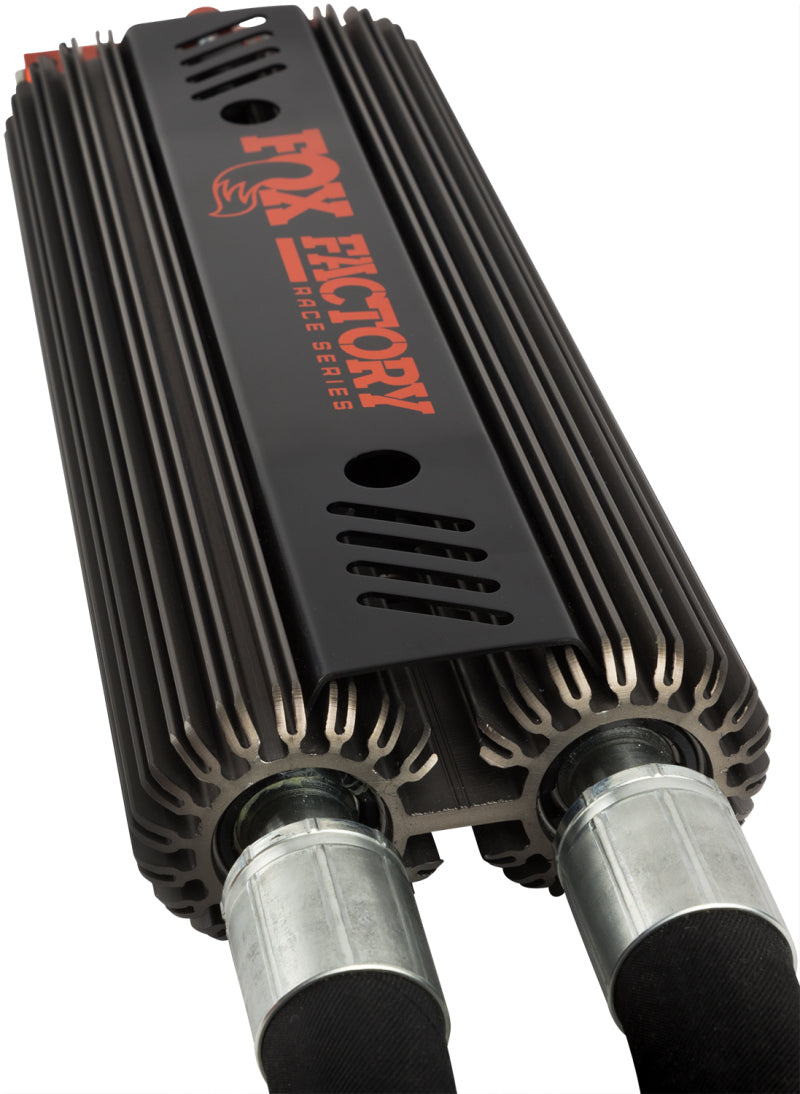

• External piggyback reservoir with cooling fins to reduce heat fade
• 3.0" impact-extruded and CNC-machined 6061-T6 aluminum bodies
• 7/8" hard chrome-plated 17-4 H900 stainless steel shaft for strength
• Application-specific valving tuned for Raptor suspension dynamics

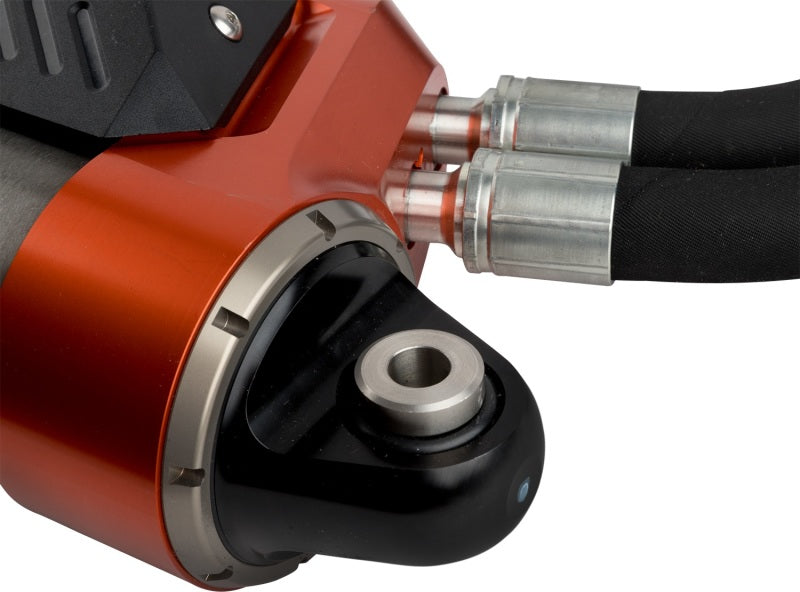

• PTFE-lined spherical bearings for smooth articulation and reduced friction

Specifications

• Position: Rear (driver & passenger)
• Rear Lift Height: 0-1"
• Body Diameter: 3.0"
• Extended Length: 31.15"
• Compressed Length: 18.98"
• Shock Travel: 12.17"
• Mounts: Eyelet top & bottom
• Reservoir: Piggyback with external cooling fins
• Adjustability: Live Valve + QS3 rebound/compression

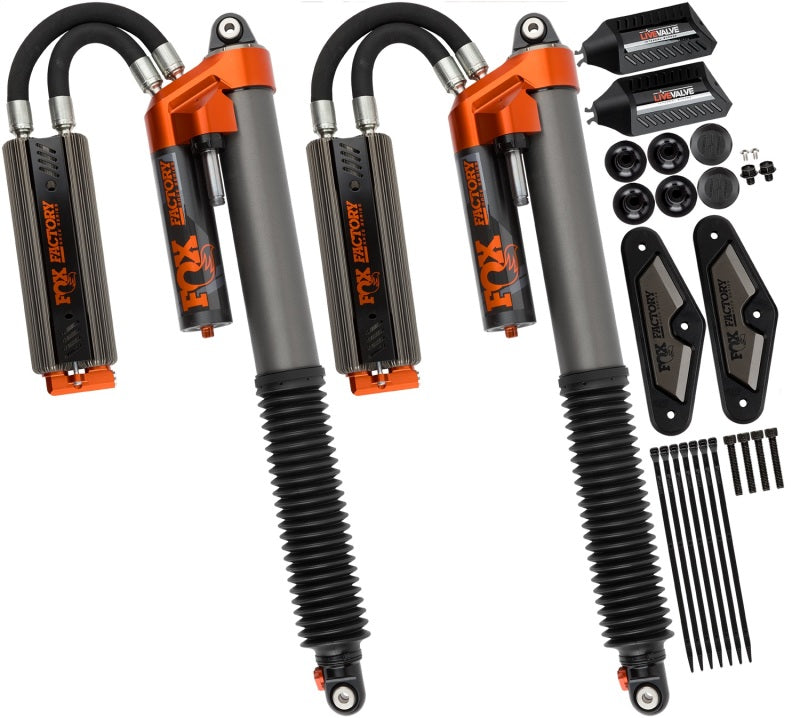

Included Components

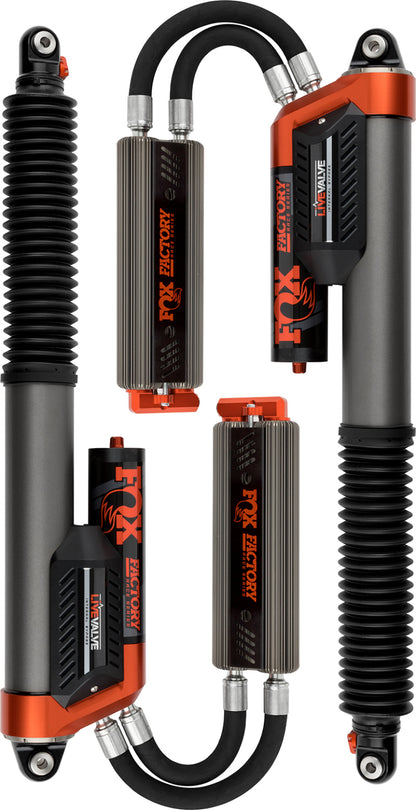

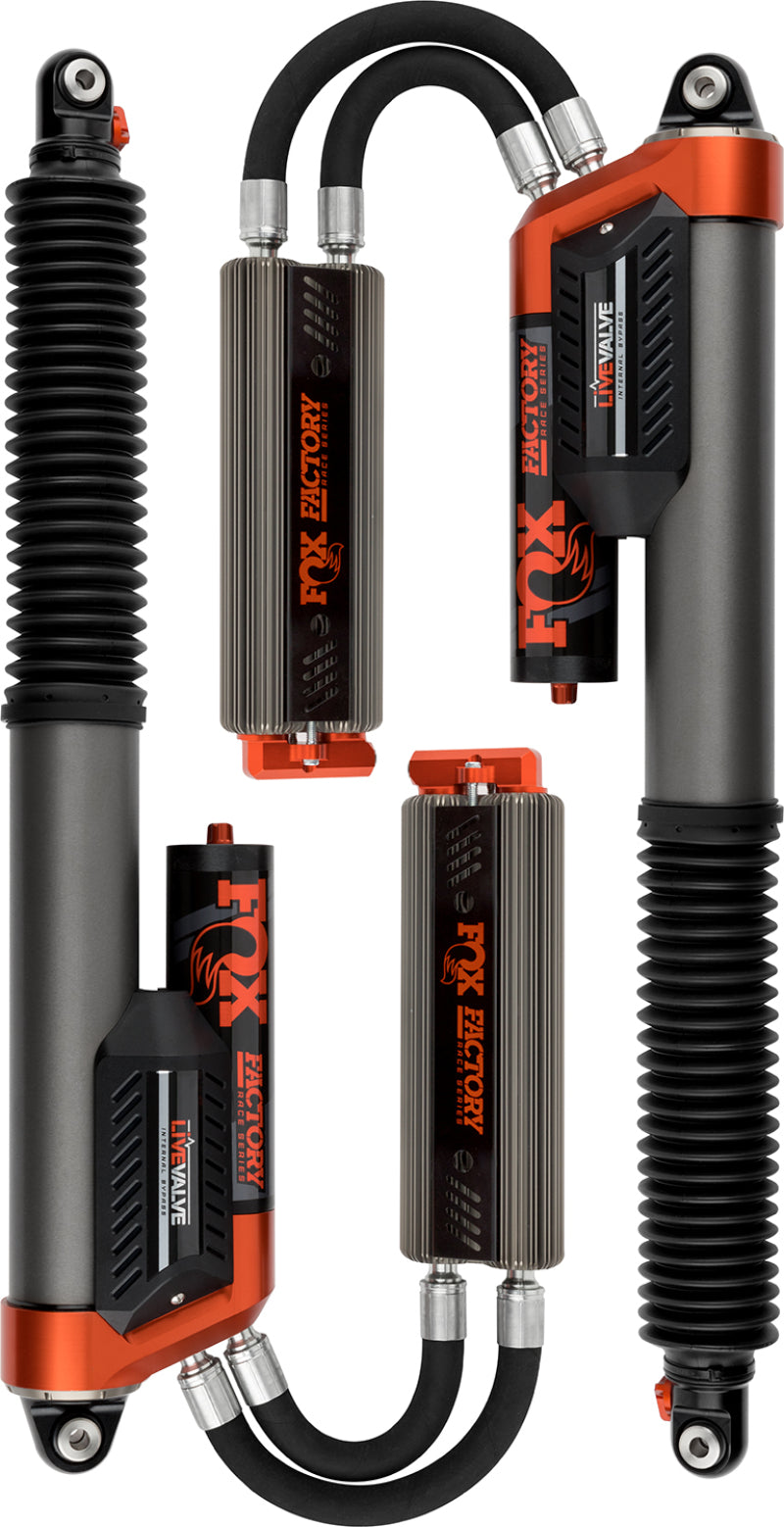

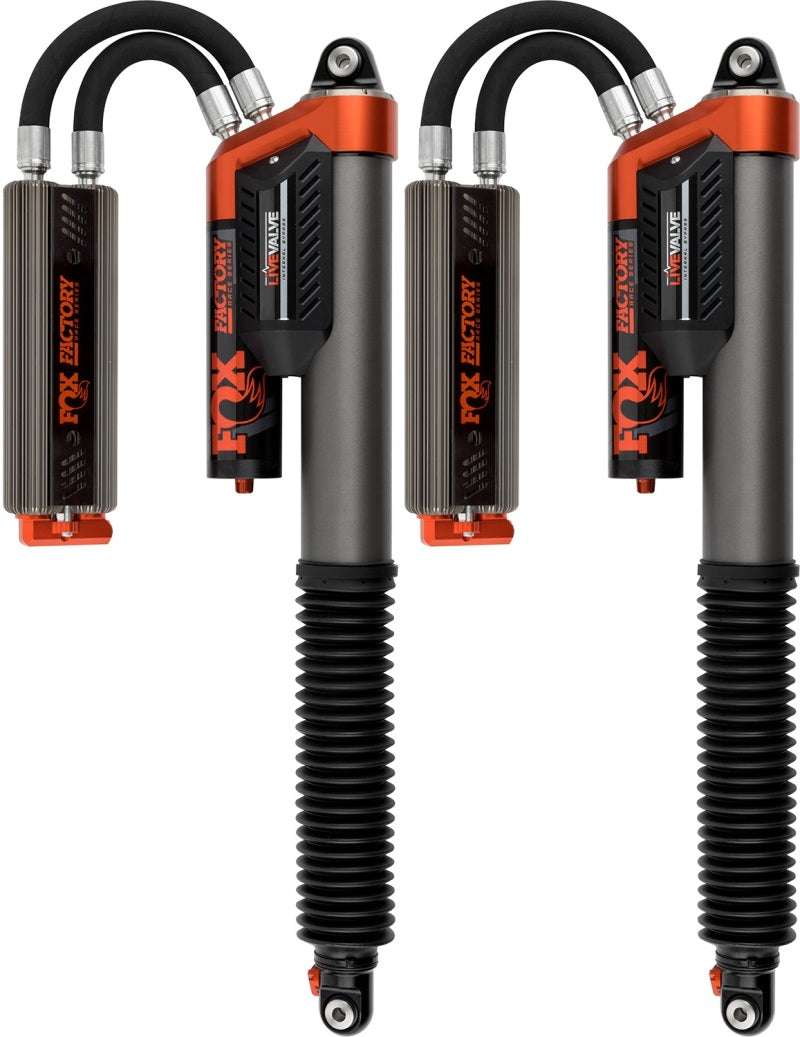

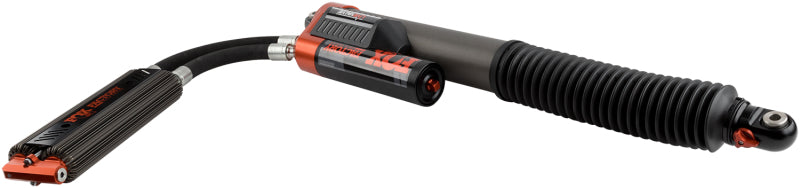

• 2x FOX 883-09-153 Factory Race Series 3.0 Live Valve rear shocks
• Installation instructions
• Note: Mounting hardware not included

Product Description

The FOX 883-09-153 Factory Race Series 3.0 Live Valve Rear Shocks are high-performance rear suspension upgrades designed for 2019-2020 Ford F-150 Raptor trucks. These shocks combine FOX's advanced internal bypass technology with Live Valve semi-active damping that adapts in real time to inputs from vehicle sensors and accelerometers, helping maximize comfort, handling, and bottom-out resistance on varied terrain. Quick Switch Technology (QS3) allows independent adjustment of rebound and compression for further tuning of ride quality and performance.

Built with rugged 3.0" impact-extruded and CNC-machined 6061-T6 aluminum bodies and external piggyback reservoirs with cooling fins, these shocks are tuned specifically for the Raptor's rear suspension dynamics. PTFE-lined spherical bearings and hard chrome-plated shafts enhance durability and smooth articulation, while the adaptive Live Valve system works with factory electronics to adjust damping characteristics on-the-fly. Designed to fit stock ride height or up to approximately 1" of lift, the FOX 883-09-153 rear shocks provide superior off-road capability without compromising everyday ride comfort.
