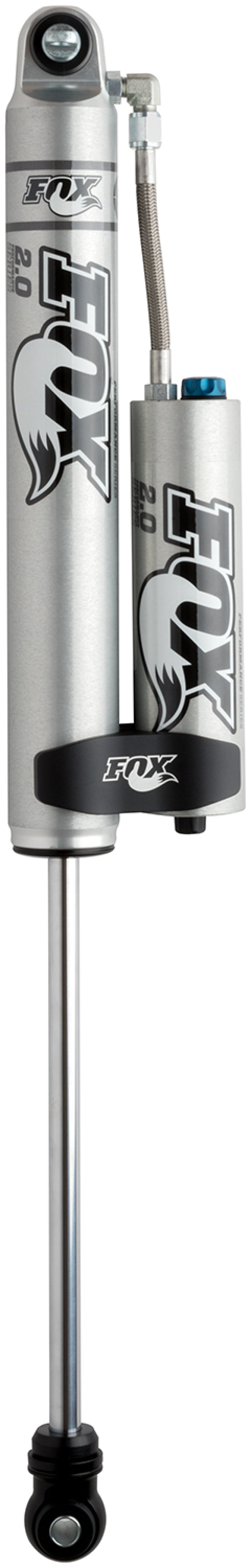

FOX 985-26-113 for Rear Shock w/CD 4-6" & 3.5-4. Lift 84-06 Jeep Wrangler TJ

Vehicle Fitment

• 1984-2001 Jeep Cherokee XJ (Rear, 4WD, all trims, 3.5-4.5" lift)
• 1997-2006 Jeep Wrangler TJ (Rear, 4WD, all trims, 4-6" lift)

Features

• Tuned for 3.5-6" lifted Cherokee XJ and Wrangler TJ
• 2.0" impact-extruded 6061-T6 aluminum shock body
• Remote reservoir for increased fluid and heat capacity
• Internal Floating Piston (IFP) mono-tube design
• 8-click LSC compression adjuster (CD adjuster)
• Race-developed high-flow damping piston
• Black anodized CNC billet reservoir clamp
• Quiet nitrile rubber bushings - smooth articulation

Specifications

• Position: Rear
• Body Diameter: 2.0" aluminum
• Collapsed Length: ~15.4"
• Extended Length: ~25.0"
• Travel: ~9.6"
• Top Mount: BP2 eyelet
• Bottom Mount: ES3 sleeve
• Adjuster: 8-click low-speed compression (CD)
• Lift Range: 3.5-6" depending on model
• Reservoir Type: Remote external
• Seal System: Redundant scraper & wiper

Included Components

• 1x FOX 985-26-113 Rear Reservoir Shock
• 1x CNC-machined billet reservoir clamp
• 2x Pre-installed rubber bushings
• 2x Steel washers
• 1x Upper shock nut

Product Description

The FOX 985-26-113 Performance Series 2.0 Reservoir Rear Shock is designed for serious off-road builds on Jeep Cherokee XJ and Wrangler TJ platforms. With lift capability from 3.5" to 6", it provides superior damping performance suited for daily driving and hardcore trail use.

Built from a lightweight, clear-anodized 6061-T6 aluminum body and featuring a remote reservoir with IFP technology, this shock offers increased fluid volume and improved heat dissipation to resist fade. The 8-click low-speed compression adjuster allows fine-tuning of ride firmness - ideal for varying loads and terrain.

Installation is simple with OEM-style eyelet mounts and complete with bushings, washers, clamp, and nut. Ideal for off-road enthusiasts who demand adjustable, race-quality rear suspension performance backed by FOX's 1-year limited warranty.
