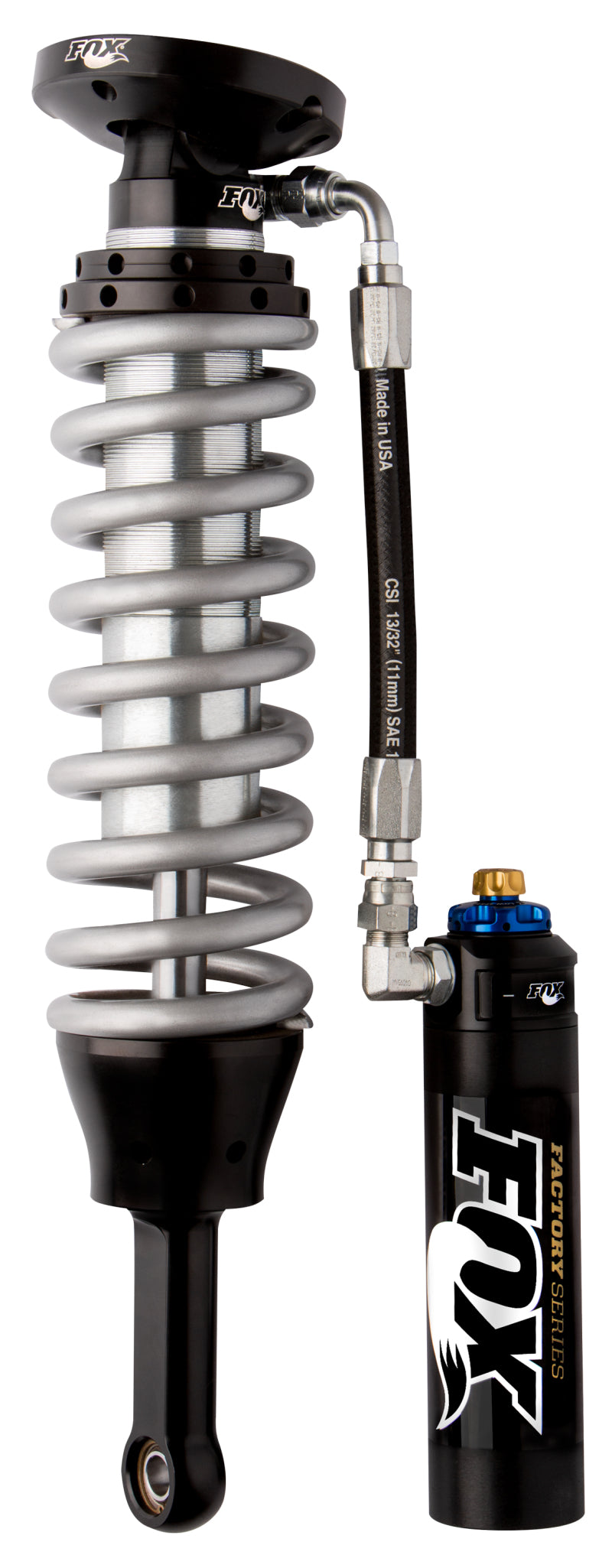

FOX 880-06-409 2.5 Coilover Shocks w/Res/Adjust for 95-04 Toyota Tacoma 2WD/4WD

Vehicle Fitment

• 1995-2004 Toyota Tacoma (All Trims, 4WD & 6-Lug RWD, 2.7L I4 / 3.4L V6)

Features

• FOX Factory Race Series 2.5" coilover shocks with remote reservoirs
• Dual Speed Compression (DSC) adjusters for 12 low-speed and 10 high-speed settings
• Adjustable ride height providing 0-3" front lift
• Pre-set to level vehicle out of the box
• External reservoirs enhance oil capacity and heat dissipation
• Black anodized, CNC-machined 6061-T6 billet aluminum components
• Durable zinc-plated seamless alloy body with double-clear coating
• Application-specific valving for optimized performance

Specifications

• Shock Type: Coilover with remote reservoir
• Body Diameter: 2.5 inches
• Lift Range: 0-3 inches (front)
• Travel: 5.49 inches
• Compressed Length: 14.55 inches
• Extended Length: 20.04 inches
• Reservoir Type: Remote with DSC adjusters
• Material: Zinc-plated seamless alloy body
• Finish: Black anodized CNC-machined aluminum components
• Mounting: Top mount - factory style; Bottom mount - eyelet

Included Components

• 2x FOX 880-06-409 2.5 Factory Series Coilover Shocks with Remote Reservoirs
• 2x Coil Springs (pre-installed)
• 2x Reservoir Mounting Brackets
• 1x Installation Hardware Kit
• 1x Installation Guide

Product Description

The FOX 880-06-409 2.5 Factory Series Coilover Shocks with Remote Reservoirs are engineered to deliver exceptional performance and control for your 1995-2004 Toyota Tacoma. Designed for off-road enthusiasts and daily drivers alike, these coilovers provide a significant upgrade over stock suspension systems.

Featuring a race-proven 2.5-inch diameter body and external reservoir, these shocks offer increased oil capacity and improved heat dissipation, ensuring consistent damping performance in the most demanding conditions. The Dual Speed Compression (DSC) adjusters allow for 12 low-speed and 10 high-speed compression settings, enabling precise tuning for various terrains and driving styles. Adjustable ride height provides up to 3 inches of front lift, accommodating larger tires and enhancing ground clearance. Pre-set to level your vehicle right out of the box, these coilovers are compatible with aftermarket upper control arms (required) and install easily without the need for cutting or welding.

Whether navigating rugged trails or cruising city streets, the FOX 880-06-409 coilovers provide the durability, comfort, and performance needed to elevate your driving experience.
