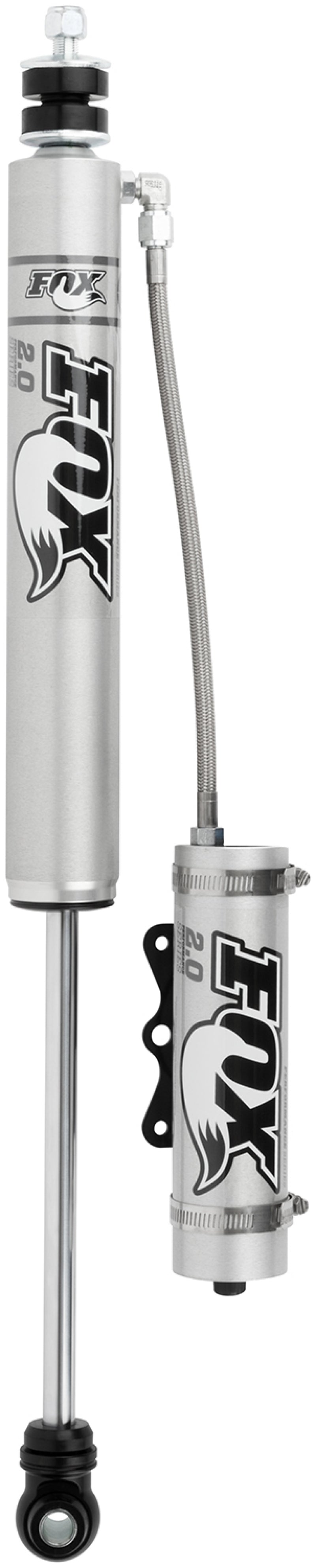

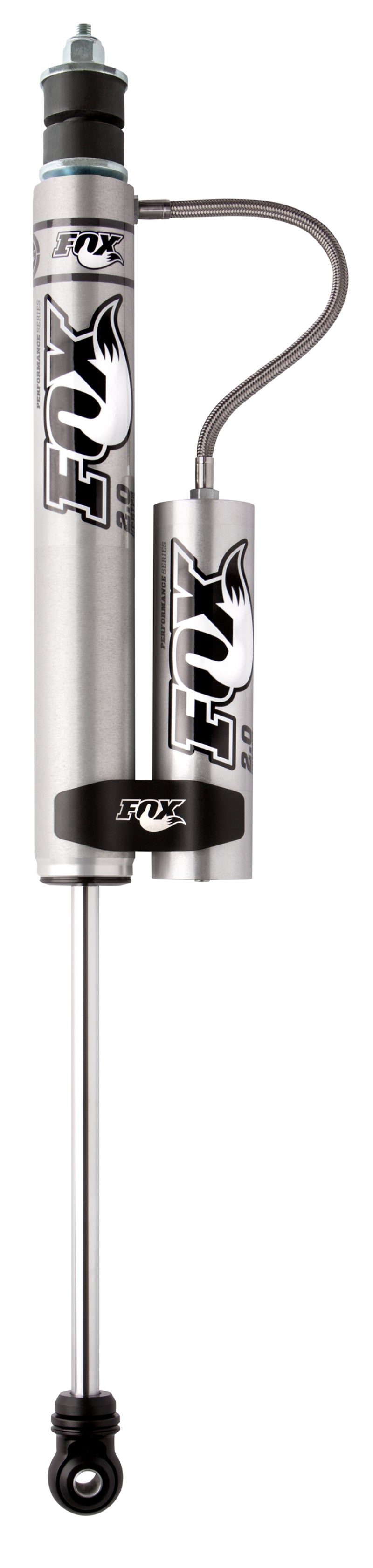

FOX 985-24-025 2.0 Performance Series Reservoir Shock 1994-2013 Dodge Ram 2500

Vehicle Fitment

• 1994-2013 Dodge Ram 2500 4WD (Front, 4-6" Lift)
• 1994-2012 Dodge Ram 3500 4WD (Front, 4-6" Lift)
• 2006-2008 Dodge Ram 1500 4WD (Front, 4-6" Lift)

Features

• 2.0" impact-extruded 6061-T6 aluminum body for superior heat dissipation
• Clear anodized finish for enhanced durability and corrosion resistance
• Remote reservoir design increases oil and nitrogen capacity
• Race-developed high-flow piston design for improved damping performance
• Application-specific valving to maximize performance
• Redundant sealing pack system (main seal, wiper seal, scraper seal)
• Quiet nitrile rubber bushings for increased suspension articulation
• Easy bolt-on installation with no modifications required

Specifications

• Extended Length: 28.87 inches
• Collapsed Length: 17.25 inches
• Travel: 11.62 inches
• Top Mount: SM3
• Bottom Mount: ES7
• Reservoir Type: Remote
• Body Material: 6061-T6 aluminum
• Reservoir Material: Smooth bore 6061-T6 aluminum
• Reservoir Finish: Hard anodized
• Shaft: 5/8" hard chrome plated heat-treated alloy steel

Included Components

• 1x FOX 985-24-025 2.0 Performance Series Reservoir Shock
• 1x Reservoir mounting bracket
• 1x Hardware kit (washers, bushings, nuts)
• 1x Installation instructions

Product Description

The FOX 985-24-025 2.0 Performance Series Reservoir Shock is engineered to enhance the suspension performance of your 1994-2013 Dodge Ram 2500/3500 4WD or 2006-2008 Ram 1500 4WD with a 4-6" lift. Featuring a 2.0" impact-extruded 6061-T6 aluminum body, this shock dissipates heat more effectively than conventional steel shocks, ensuring consistent performance under demanding conditions.

The remote reservoir design increases oil and nitrogen capacity, reducing the risk of shock fade during prolonged use. The race-developed high-flow piston and application-specific valving provide improved damping performance, delivering a smooth and controlled ride both on and off the road. Installation is straightforward, utilizing factory mounting locations with no modifications required.
