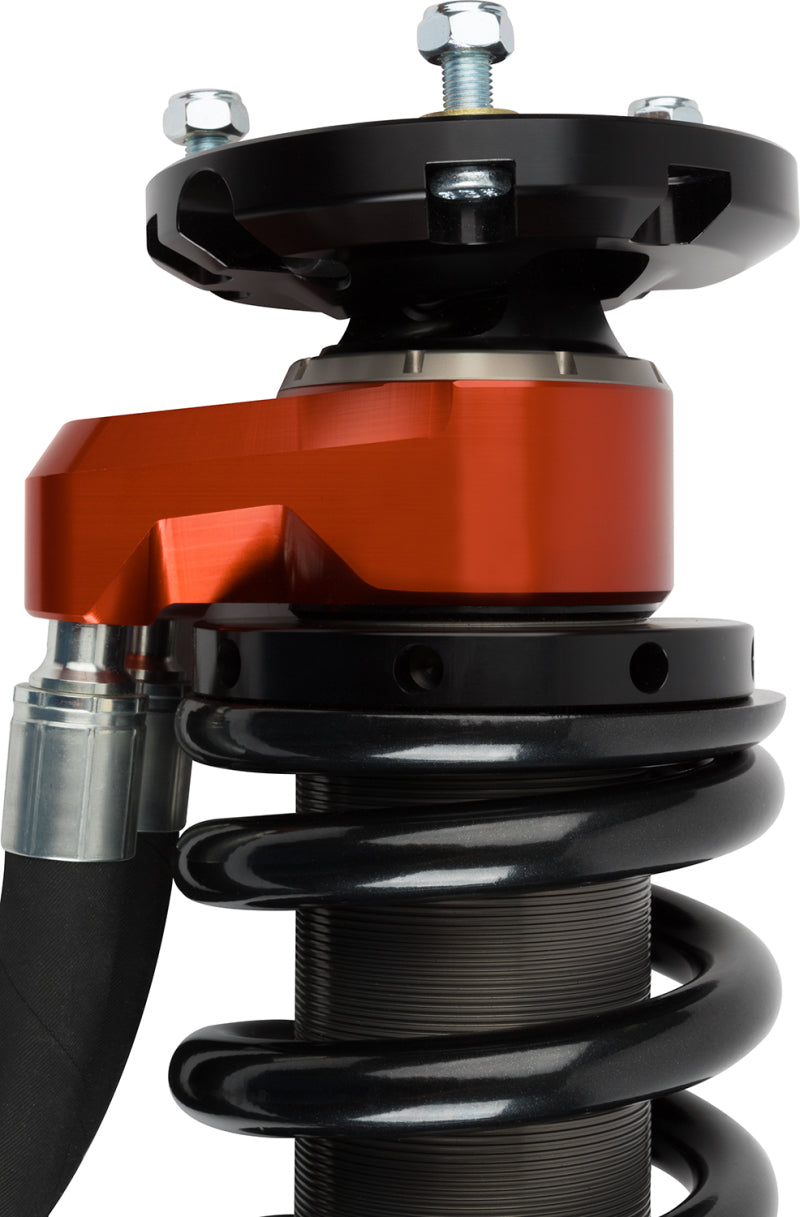

FOX 883-06-153 3.0 Live Valve Coilovers for 2019-2020 Ford Raptor

Vehicle Fitment

• 2019-2020 Ford F-150 Raptor (All Trims, 4WD, 3.5L V6 EcoBoost)

Features

• FOX 3.0 Factory Race Series coilovers with Live Valve technology
• Position-sensitive damping adapts to terrain in real-time

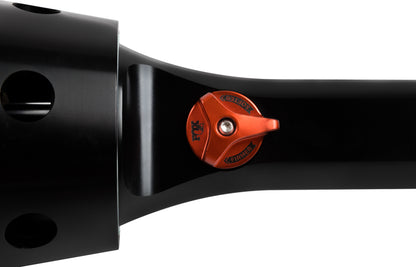

• Quick Switch 3 (QS3) adjusters for compression and rebound tuning
• Hard-anodized 3.0" aluminum body for durability and corrosion resistance

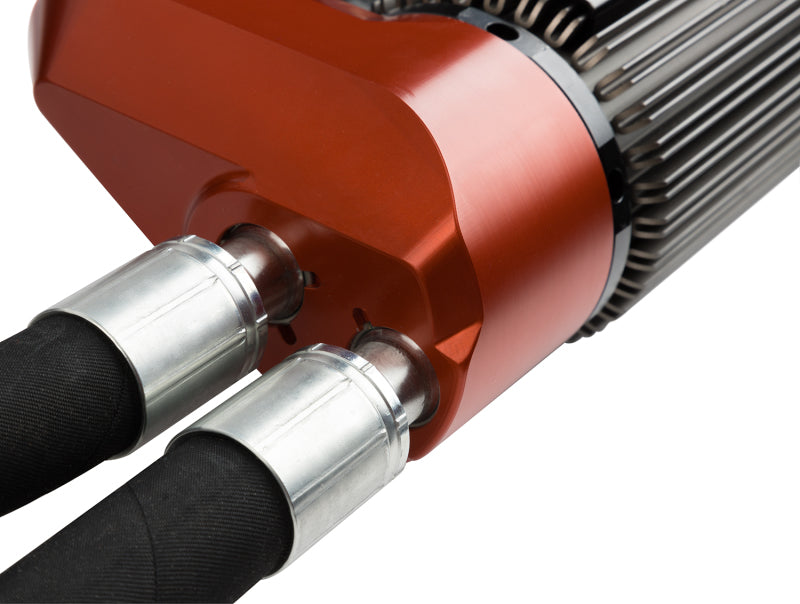

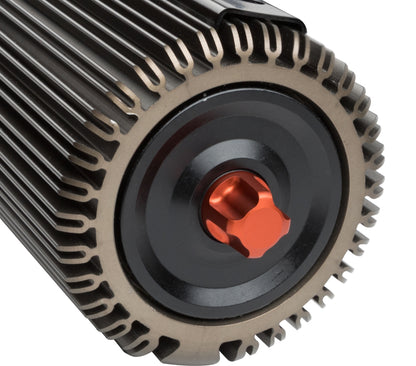

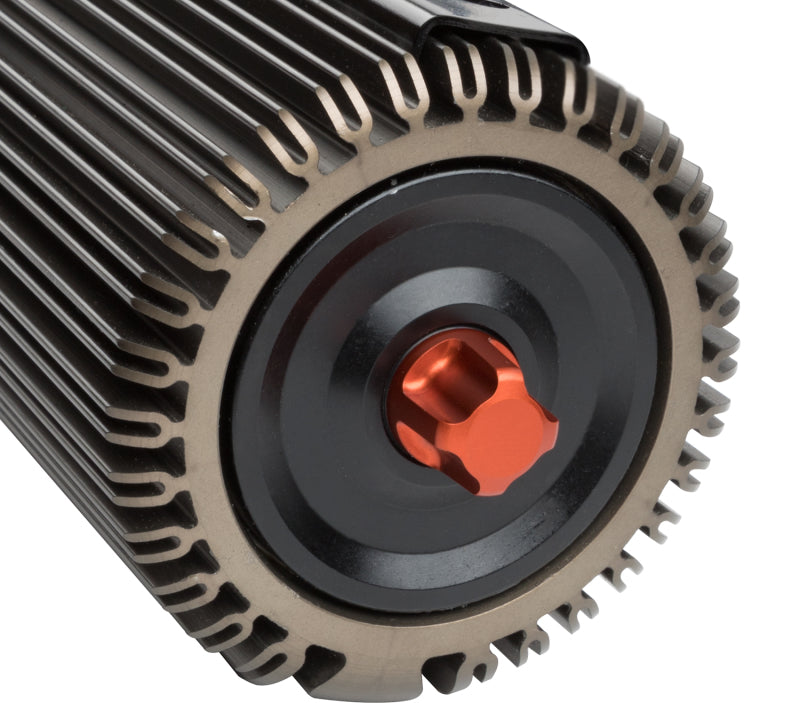

• Finned remote reservoir with recirculating bridge for enhanced heat dissipation
• 7/8" hard chrome-plated, heat-treated alloy steel shaft for strength
• Black anodized CNC-machined 6061-T6 billet aluminum components
• Designed for 0-2" front lift without requiring additional suspension modifications

Specifications

• Extended Length: 28.49 inches
• Compressed Length: 20.60 inches
• Travel: 7.89 inches
• Body Diameter: 3.0 inches
• Top Mount: OEM-style eyelet
• Bottom Mount: Eyelet
• Spring Rate: 3.75" x 14" heavy-duty racing spring (front)
• Reservoir Type: Remote, finned aluminum with recirculating bridge
• Adjuster Type: Quick Switch 3 (QS3) for compression and rebound
• Material: CNC-machined 6061-T6 billet aluminum components

Included Components

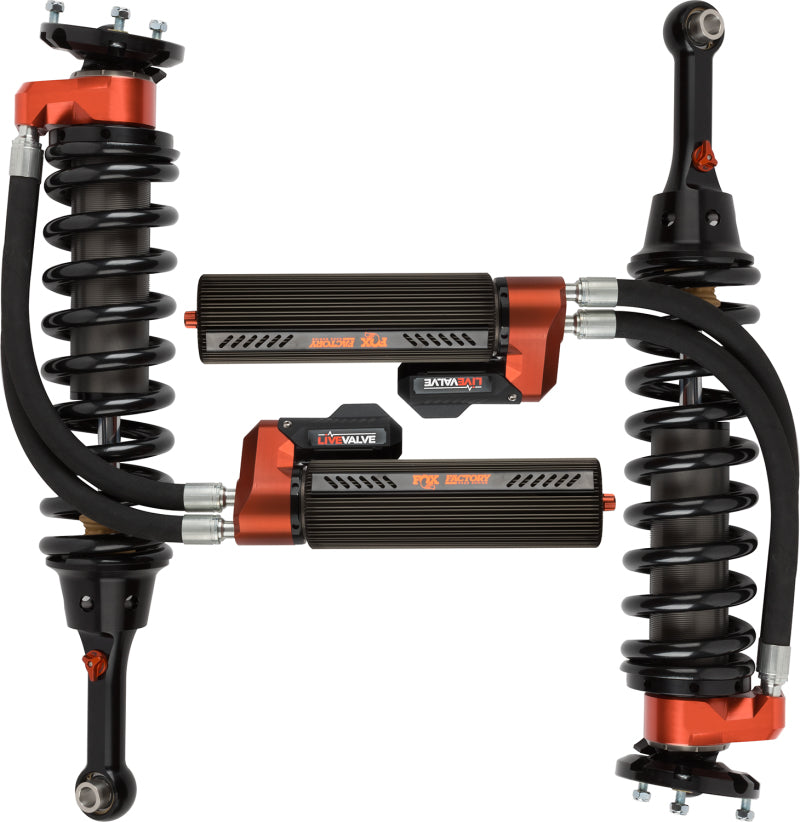

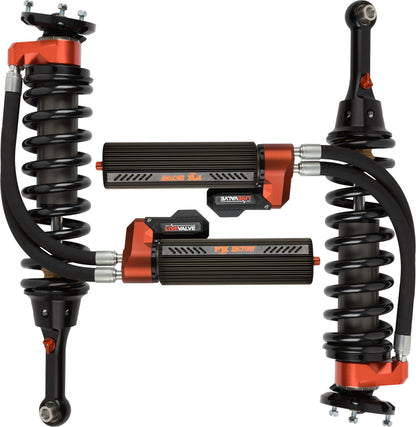

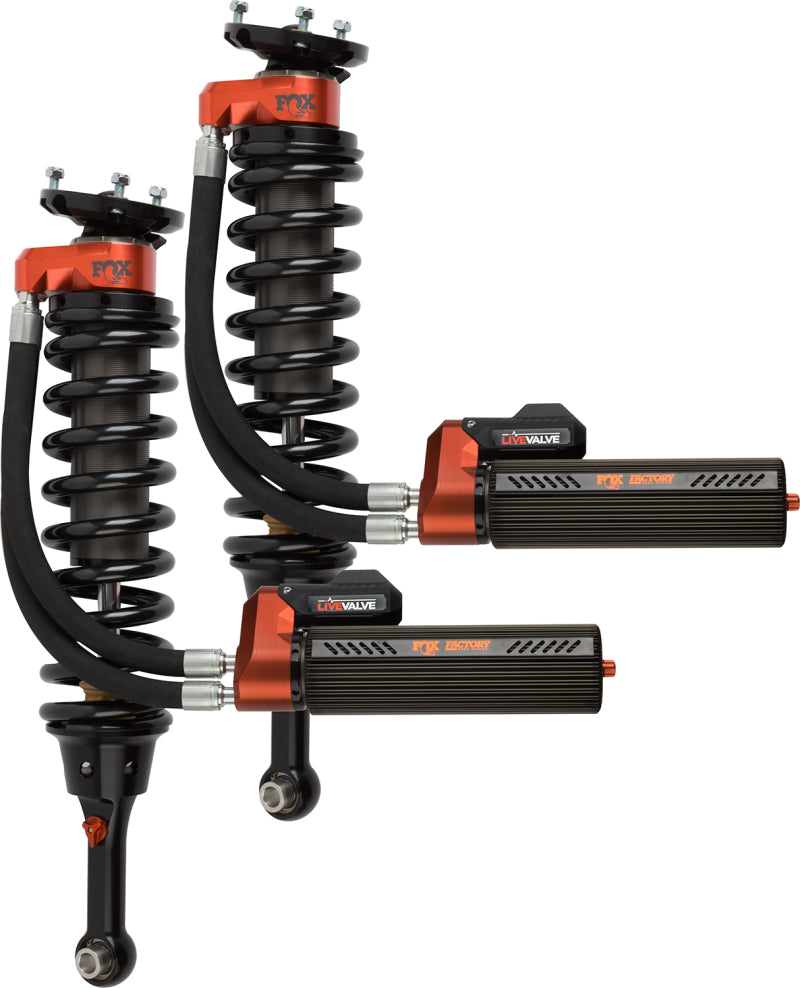

• 2x FOX 883-06-153 3.0 Factory Race Series coilovers with Live Valve technology
• 2x 3.75" x 14" heavy-duty racing springs (front)
• All necessary hardware and installation instructions

Product Description

The FOX 883-06-153 3.0 Live Valve Coilovers are engineered to provide exceptional performance and control for your 2019-2020 Ford F-150 Raptor. Featuring FOX's Live Valve technology, these coilovers adapt to terrain in real-time, offering a smooth and controlled ride over various surfaces. The Quick Switch 3 (QS3) adjusters allow for on-the-fly tuning of compression and rebound, enabling you to optimize the suspension for on-road comfort or off-road performance.

Constructed with a hard-anodized 3.0" aluminum body, these coilovers are designed for durability and corrosion resistance. The finned remote reservoir with a recirculating bridge enhances heat dissipation, maintaining consistent damping performance during extended off-road use. The 7/8" hard chrome-plated, heat-treated alloy steel shaft ensures strength and longevity, while the black anodized CNC-machined 6061-T6 billet aluminum components provide precision and reliability.

Installation is straightforward, with no additional suspension modifications required. These coilovers are designed for a 0-2" front lift, maintaining the vehicle's stance while improving suspension performance. Whether you're navigating rugged trails or cruising on highways, the FOX 883-06-153 coilovers deliver the durability, comfort, and performance needed to elevate your driving experience.
