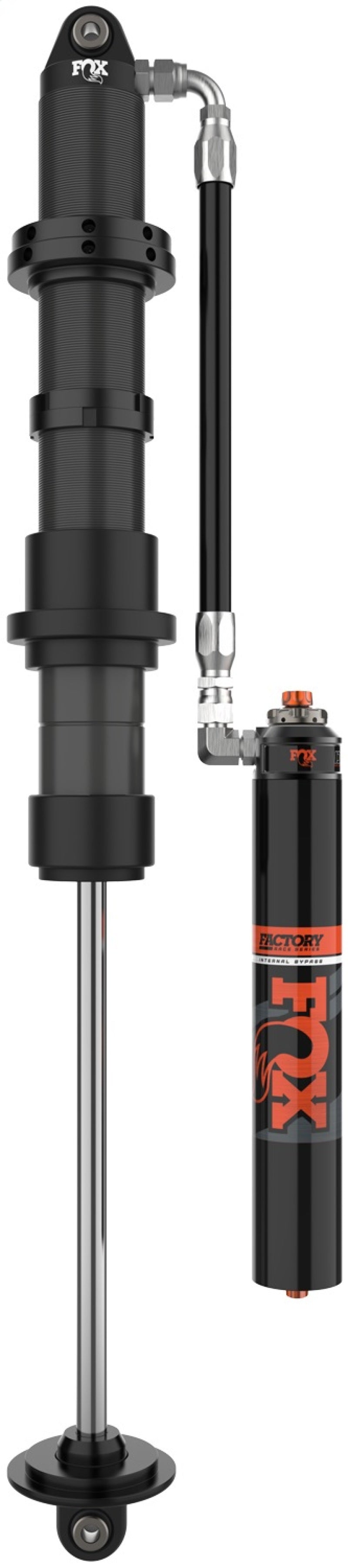

FOX 981-30-604-3 Factory Race 3.0 x 16 Coil-Over Internal Bypass Remote Shock

Vehicle Fitment

• Universal fitment for off-road vehicles requiring 3.0" diameter coil-over shocks

Features

• 3.0" diameter shock body for increased fluid capacity and heat dissipation
• Internal Bypass technology for position-sensitive damping
• Dual Speed Compression (DSC) Adjuster for fine-tuning damping characteristics
• Remote reservoir design for improved cooling and performance
• Dual-coated body with FOX Grey Cerakote® protective ceramic coating over zinc-plated basecoat for enhanced corrosion resistance
• Hard chrome-plated 7/8" 17-4 H900 stainless steel shaft for durability
• 6061-T6 hard-anodized billet aluminum 9-port high-flow piston for improved flow and performance
• High-temp Viton redundant sealing pack system for reliability in extreme conditions

Specifications

• Extended Length: 41.49 inches
• Collapsed Length: 25.40 inches
• Travel: 16.09 inches
• Reservoir Size: 2.55" x 14.00"
• Reservoir Hose Length: 18.00 inches
• Mounting: 1/2" bolt x 1-1/2" mounting width
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Spring Compatibility: Designed for use with 3.75" ID coil springs

Included Components

• 1x FOX 981-30-604-3 Coil-Over Internal Bypass Remote Shock
• Pre-installed Dual Speed Compression (DSC) Adjuster
• Remote reservoir with hose
• Mounting hardware
• Installation instructions

Product Description

The FOX 981-30-604-3 Factory Race 3.0 x 16 Coil-Over Internal Bypass Remote Shock with DSC Adjuster is engineered for high-performance off-road vehicles requiring superior suspension control. Its 3.0" diameter shock body increases fluid capacity, enhancing heat dissipation and overall performance. The Internal Bypass technology provides position-sensitive damping, adapting to varying terrain conditions for optimal ride quality.

Equipped with a Dual Speed Compression (DSC) Adjuster, this shock allows for fine-tuning of damping characteristics to suit specific driving preferences and conditions. The remote reservoir design improves cooling efficiency, maintaining consistent performance during extended use. Constructed with durable materials and advanced sealing systems, the FOX 981-30-604-3 is built to withstand the rigors of off-road environments.

Installation is straightforward, utilizing standard 1/2" bolts and eyelet mounts. The shock is compatible with 3.75" ID coil springs, offering flexibility in spring selection to achieve desired ride height and performance. Whether tackling rugged trails or navigating challenging terrains, the FOX 981-30-604-3 provides the suspension performance needed to handle demanding off-road conditions.
