FOX 883-06-212 2.5 Factory Front Coil-Over w/Reservoir for 21-25 Ford Bronco 4DR

Vehicle Fitment

• 2021-2025 Ford Bronco 4-Door (Base, Big Bend, Black Diamond, Outer Banks, Badlands, Wildtrak)
• 2021-2025 Ford Bronco 4-Door Sasquatch Package

Fitment Notes

• 4-Door models ONLY - does NOT fit 2-Door models (use 883-06-209 for 2-Door)
• Base/Standard models: 3" to 4" front lift (4-4.5" with some configurations)
• Sasquatch models: 2" to 3" front lift (3-3.5" with some configurations)
• Requires aftermarket upper control arms (UCAs) - NOT included
• NOT compatible with Bronco Raptor
• Compatible with OEM wheels and tires
• Reservoirs strategically mounted to clear aggressive tires and aftermarket skid plates
• Direct bolt-on installation - no cutting or welding required
• Professional installation recommended
• Pair with FOX 883-06-213 rear coilovers for complete front/rear upgrade
• Supersedes previous part number 883-06-195

Features

• Performance Elite Series with race-proven FOX technology
• 2.5" impact-extruded CNC-machined 6061-T6 aluminum body
• Hard anodized finish for superior corrosion resistance

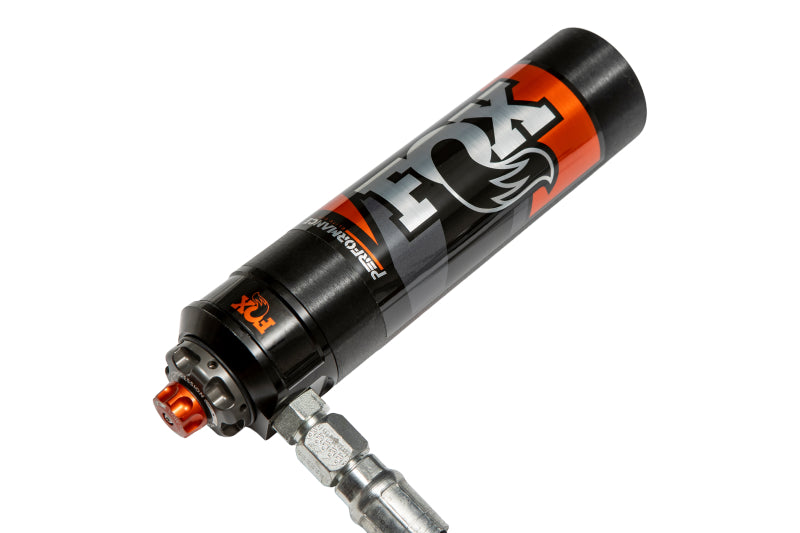

• External reservoir increases oil and nitrogen capacity
• Dual Speed Compression (DSC) adjuster for tunable damping
• Adapt shocks for load, environment, and driving style
• Progressive wound Eibach coil springs for optimal IFS compliance
• 20% more suspension travel than stock shocks
• Ride height preload ring for easy height adjustment
• High-flow aluminum piston for consistent damping
• Redundant sealing pack system prevents leaks

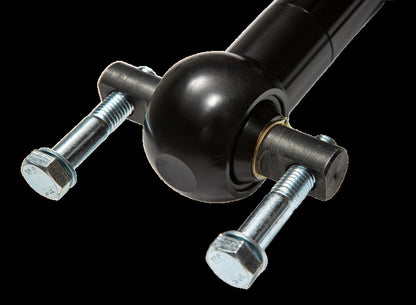

• PTFE-lined spherical bearings for smooth operation
• JM92 Advanced Suspension Fluid for temperature stability
• Fully rebuildable and serviceable

Specifications

• Part Number: 883-06-212
• Brand: FOX Racing Shox
• Series: Performance Elite Series
• Type: Coil-Over with Remote Reservoir
• Position: Front
• Body Diameter: 2.5"
• Extended Length: 24.26"
• Compressed Length: 18.79"
• Shock Travel: 5.47"
• Max Recommended Length at Ride Height: 22.50"
• Shaft Diameter: 7/8"
• Shaft Material: Hard Chrome Plated Heat-Treated Alloy Steel
• Body Material: 6061-T6 Aluminum
• Body Finish: Hard Anodized
• Components: Black Anodized CNC-Machined 6061-T6 Billet Aluminum
• Spring Type: Progressive Wound Eibach Racing Spring
• Top Mount: OEM Style
• Bottom Mount: Bolt-On
• Adjustability: Dual Speed Compression (DSC)
• Reservoir: External Remote Reservoir
• Sealing: Redundant Pack System (Main, Wiper, Scraper Seals)
• Bearings: PTFE-Lined Heat-Treated Alloy Steel Spherical
• Fluid: JM92 Advanced Suspension Fluid
• Quantity: Pair (2 Front Coilovers)
• Warranty: FOX 1-Year Limited Warranty
• Country of Origin: USA

Included Components

• Front Coil-Over Shocks with Integrated Springs (Pair)
• Remote Reservoirs (2)
• Reservoir Mounting Hardware and Clamps
• All Necessary Installation Hardware

Product Description

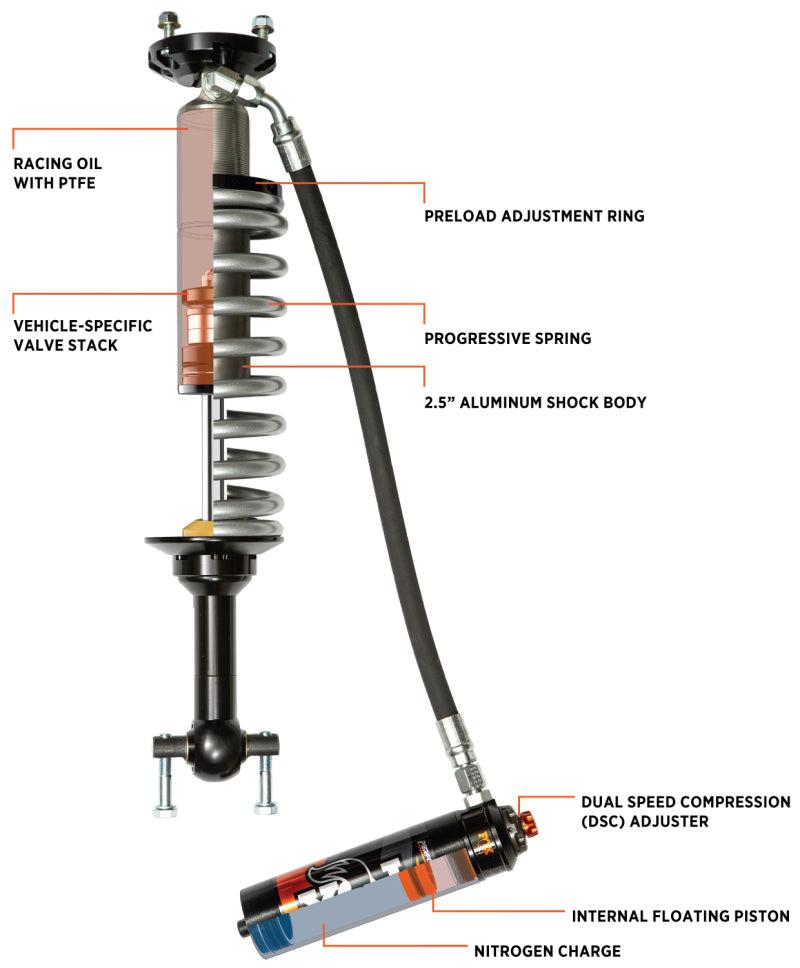

The FOX 883-06-212 Performance Elite Series 2.5 Front Coilovers deliver race-proven suspension technology to your 2021+ Ford Bronco 4-Door. Designed and engineered by off-road enthusiasts, these coilovers enhance comfort, maximize articulation, and provide 20% more suspension travel than stock shocks. The 2.5-inch impact-extruded aluminum bodies and external reservoirs efficiently dissipate heat by increasing internal oil capacity, while the Dual Speed Compression (DSC) adjusters allow you to quickly adapt damping for load, environment, and driving style. Progressive wound Eibach springs were specifically chosen to complement the Bronco's IFS design, unlocking the entire range of usable travel in both jounce and droop positions for a uniquely soft ride with superior control through rough terrain. The reservoirs are strategically mounted to clear aggressive mud tires and leave space for aftermarket skid plates and bumpers. Base 4-Door models receive 3" to 4" of lift while Sasquatch-equipped models receive 2" to 3" of lift. Note: Aftermarket upper control arms are required for proper suspension geometry at lifted ride heights. FOX is an OEM supplier to Ford and provides the factory shocks for the Bronco Raptor, ensuring the same level of quality and performance in this aftermarket application. Backed by FOX's 1-Year Limited Warranty.
