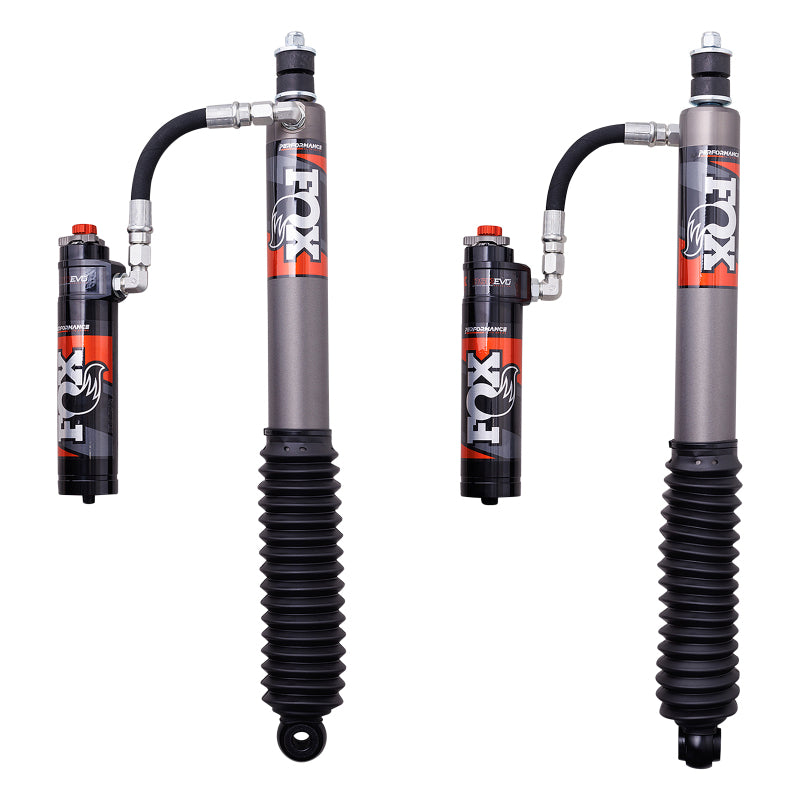

FOX 883-26-236 2.5 Performance Elite Rear Shocks for 2024-2026 Land Cruiser/GX55

Vehicle Fitment

• 2024-2026 Lexus GX550 (All trims, RWD/4WD, Rear, 0-2 inch lift)
• 2024-2026 Toyota Land Cruiser 250 Series (All trims, 2WD/4WD, Rear, 0-2 inch lift)
• 2025-2026 Toyota 4Runner (All trims, RWD/4WD, Rear, 0-2 inch lift)

Fitment Notes

• Rear shock application.
• Designed for vehicles with 0-2 inches of rear lift according to FOX's application catalog.
• The Toyota Land Cruiser application is specifically the 250 Series platform.
• 2025-2026 Toyota 4Runner fitment is separately applicable from the 2024-2026 Land Cruiser and Lexus GX550 applications.
• Verify the vehicle's exact suspension configuration and lift height before installation.

Features

• Performance Elite Series 2.5-inch shock design
• Application-specific damping for Toyota and Lexus chassis
• Rear external-reservoir configuration

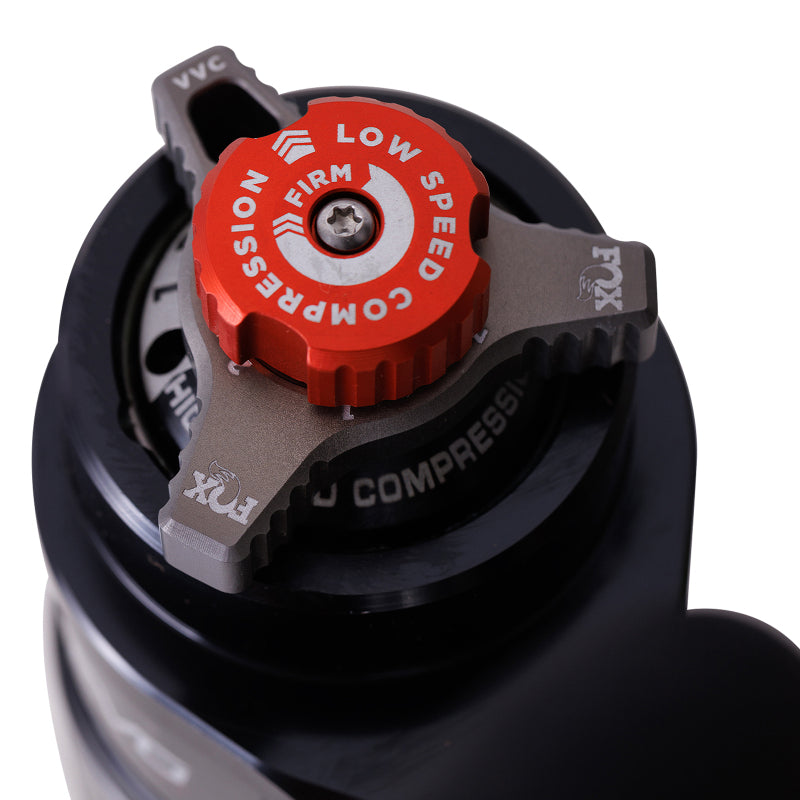

• Dual Speed Compression Evolution (DSC EVO) adjuster
• Variable Valve Control (VVC) high-speed compression circuit
• 2.5-inch aluminum shock body for improved heat dissipation
• External reservoir increases oil capacity and thermal capacity
• Designed to improve suspension articulation and control
• Adjustable compression damping for changing terrain and vehicle loads
• Serviceable and rebuildable Performance Elite construction
• Vehicle-specific mounting configuration

Specifications

• Brand: FOX
• Part Number: 883-26-236
• Series: Performance Elite
• Shock Diameter: 2.5 inches
• Position: Rear
• Lift Range: 0-2 inches
• Travel: 9.55 inches
• Extended Length: 25.85 inches
• Compressed Length: 16.30 inches
• Top Mount: Stem Top
• Bottom Mount: Eyelet

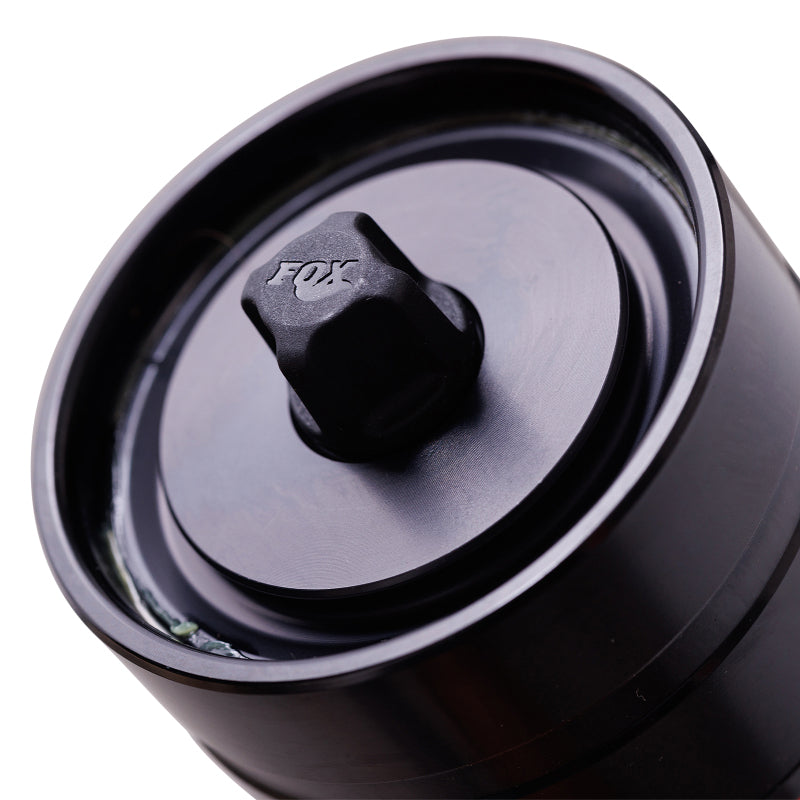

• Reservoir: External
• Adjustment: Dual Speed Compression Evolution (DSC EVO)
• High-Speed Circuit: Variable Valve Control (VVC)
• Quantity: Pair

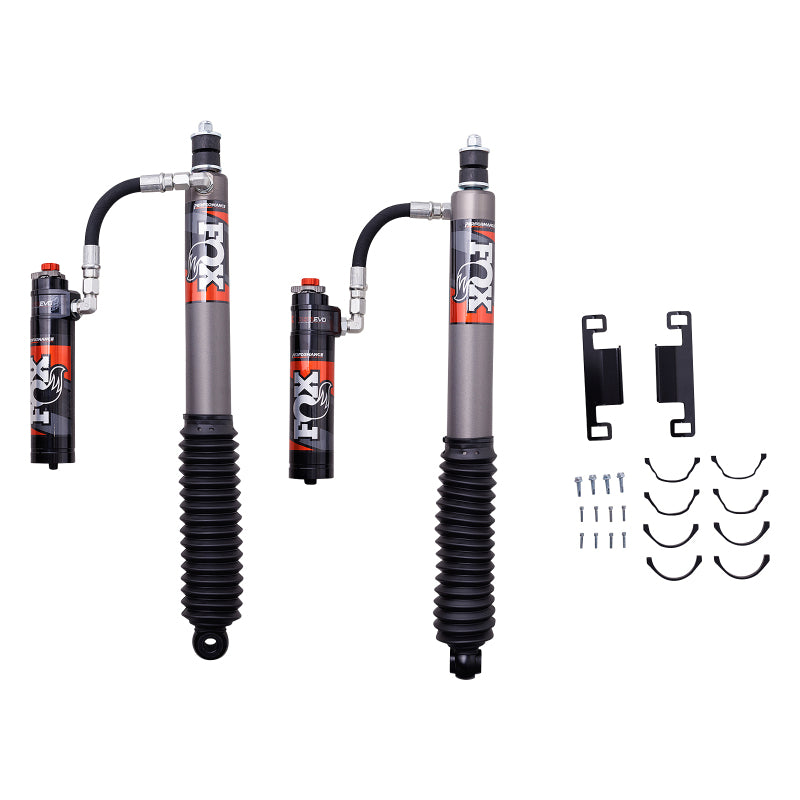

Included Components

• 2x FOX Performance Elite Series 2.5 rear shocks
• 1x Mounting hardware set
• 1x Reservoir clamp set

Product Description

The FOX 883-26-236 Performance Elite Series 2.5 rear shocks are application-specific reservoir shocks engineered for the 2024-2026 Lexus GX550, 2024-2026 Toyota Land Cruiser 250 Series, and 2025-2026 Toyota 4Runner. The shocks are designed for rear suspension configurations with approximately 0-2 inches of lift and provide increased damping control, suspension articulation, and thermal capacity for demanding on-road and off-road use.

The 2.5-inch aluminum shock bodies use an external reservoir to increase oil capacity and improve heat management. Each shock incorporates FOX's Dual Speed Compression Evolution (DSC EVO) adjustment system with Variable Valve Control on the high-speed circuit, allowing compression damping to be tuned for terrain, vehicle load, and driving conditions while maintaining small-bump sensitivity.

The 883-26-236 uses a stem-top and eyelet-bottom mounting configuration with 9.55 inches of travel, a 25.85-inch extended length, and a 16.30-inch compressed length. This is a rear shock pair rather than a complete suspension system, so the vehicle's exact model, drivetrain, suspension configuration, and lift height should be confirmed before installation.
