FOX 883-06-248 Performance Elite 2.5 Front Coilover Kit 1.5-3in Lift 4Runner GX5

Vehicle Fitment

• 2024-2026 Toyota 4Runner (SR5 / TRD Sport / Off-Road / Pro / Platinum / Trailhunter)
• 2024-2026 Toyota Land Cruiser 250 Series (1958 / Base / First Edition)
• 2024-2026 Lexus GX550 (Premium / Overtrail / Luxury trims)

Fitment Notes

• Front suspension coilover shock application (Performance Elite Series)
• Designed for 1.5-3.0 inch front lift setups
• Compatible with OEM upper mounting points and eyelet lower mounts
• Requires proper alignment after installation
• Not a rear shock or full 4-corner kit

Features

• FOX Performance Elite Series 2.5-inch aluminum shock body
• External reservoir design increases oil capacity and cooling efficiency

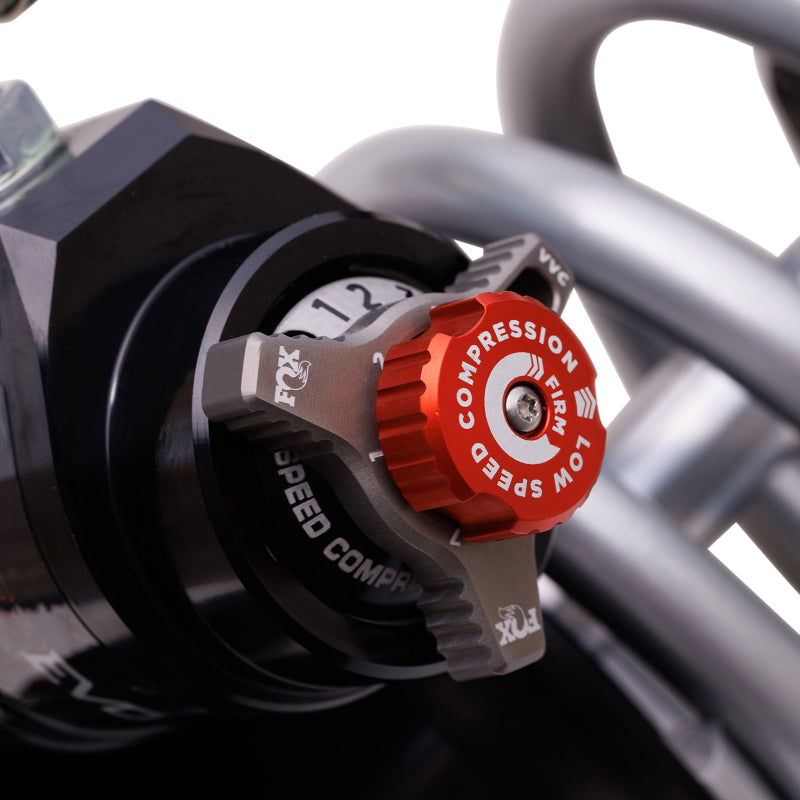

• DSC EVO (Dual Speed Compression) adjuster for independent tuning
• VVC (Variable Valve Control) for improved high-speed impact absorption
• 7/8-inch hard-chromed steel shaft for high strength and durability
• Type III hard-anodized finish for corrosion and wear resistance
• Vehicle-specific damping calibration for factory and lifted setups
• Redundant sealing system (main seal, wiper seal, scraper seal)

Specifications

• Part Number: 883-06-248
• Brand: FOX
• Series: Performance Elite
• Position: Front (left/right pair when sold as kit)
• Travel: 6.74 inches
• Extended Length: 24.38 inches
• Compressed Length: 17.64 inches
• Mount Type: OEM top mount / eyelet bottom mount
• Lift Range: 1.5-3.0 inches

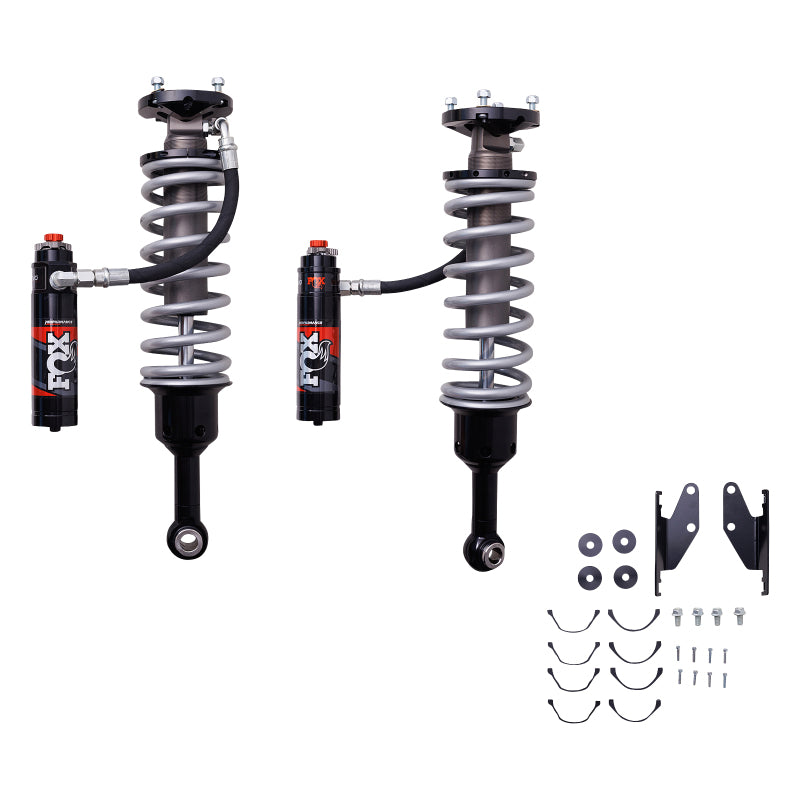

Included Components

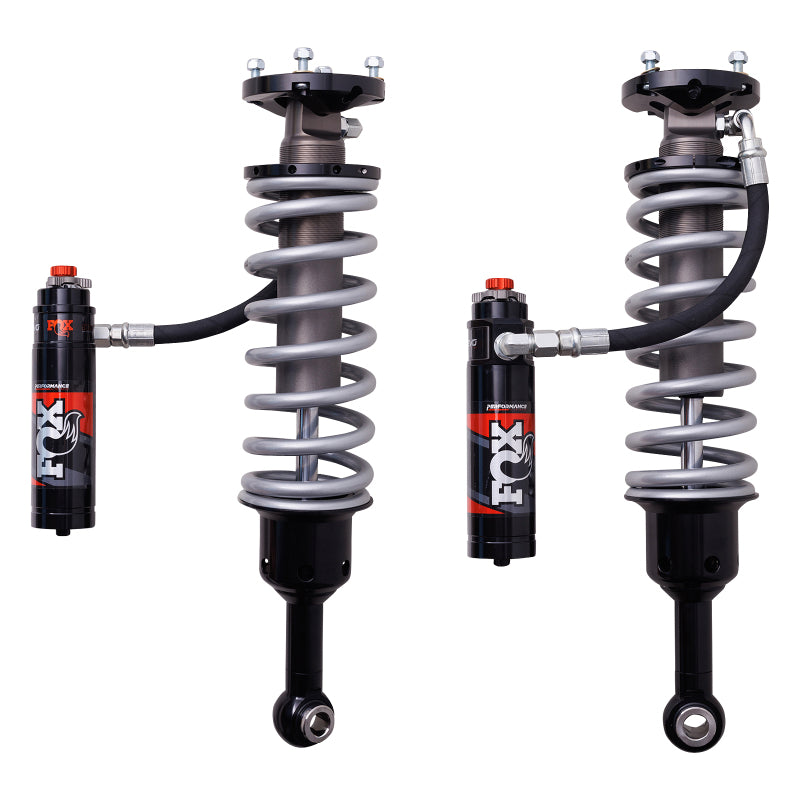

• 2x FOX Performance Elite 2.5 front coilover shocks (883-06-248)
• 1x External reservoir hardware assemblies (pre-attached)
• 1x Sealing system components (factory pre-installed)

Product Description

The FOX 883-06-248 Performance Elite 2.5 front coilover kit is engineered for modern Toyota and Lexus SUV platforms including the 4Runner, Land Cruiser 250 Series, and GX550. It is designed to improve both on-road comfort and off-road capability by replacing the factory front suspension with a high-performance adjustable coilover system.

Featuring a 2.5-inch CNC-machined aluminum body, external reservoir, and FOX's advanced DSC EVO compression adjustment system, this setup allows precise tuning of both high-speed and low-speed damping. The VVC technology further enhances control by improving response over sharp impacts without sacrificing small-bump comfort.

This coilover system is ideal for vehicles running mild to moderate lifts (1.5-3 inches), especially those equipped with aftermarket bumpers, winches, or overlanding gear. It delivers improved ride stability, reduced body roll, and enhanced suspension articulation for demanding terrain while maintaining daily driving comfort.
