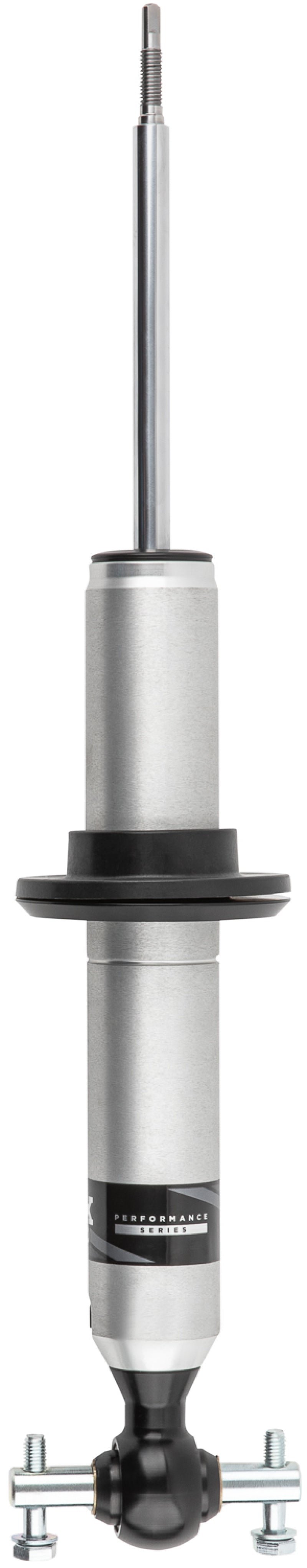

FOX 985-62-013 Perf. Series 2.0 Snap-Ring Coil-Over Strut for 21-25 Ford F-150

Vehicle Fitment

• 2021-2025 Ford F-150 (4WD, all trims, front strut, 0-2.5" lift; excludes Tremor)

Features

• Snap-ring coil-over with preset 0", 1.25", 1.875", 2.5" ride-height options
• Tuned for lifted F-150 front suspension
• 2.0" impact-extruded 6061-T6 aluminum body (clear-anodized)
• Internal Floating Piston (IFP) mono-tube design for consistent damping
• Includes spring seat - reuses factory coil spring and upper mounts
• Race-developed high-flow piston and valving
• 5/8" hard-chrome heat-treated alloy steel shaft
• Black-anodized CNC-machined billet bottom bar-pin mount
• Redundant seals: main, wiper, scraper
• Heavy-duty spherical bearing for articulation

Specifications

• Position: Front
• Body diameter: 2.0" aluminum
• Compressed length: 16.85"
• Extended length: 22.50"
• Travel: 5.65"
• Top mount: Stem (uses factory mount)
• Bottom mount: Bar-pin
• Lift adjustment: 0-2.5" via snap-ring
• Reservoir type: Internal Floating Piston (IFP)
• Spring: Factory coil spring required (not included)

Included Components

• 1x FOX 985-62-013 Front Snap-Ring Coil-Over Strut
• 1x Custom-molded spring seat (pre-installed)
• 1x Pre-installed bar-pin bottom mount
• 1x Snap-ring for height adjustment

Product Description

The FOX 985-62-013 Performance Series 2.0 Snap-Ring Coil-Over Strut transforms your front suspension with adjustable lift and factory spring retention for 2021-2025 Ford F-150 trucks. With preset 0", 1.25", 1.875", or 2.5" lift options, this bolt-on strut offers versatility without requiring new springs.

Featuring a lightweight, corrosion-resistant 6061-T6 aluminum body and IFP mono-tube design, it delivers consistent damping and improved performance on all terrains. The race-tuned piston and valving ensure both smooth on-road comfort and controlled off-road handling. Installation is easy - reuse your factory coil spring and upper mount.

Ideal for F-150 owners seeking front-end lift with reliable performance, the 985-62-013 is backed by FOX's 1-year limited warranty. Note: excludes Tremor models.
