FOX 985-26-174 2.0 Perf Rear Shock for 17-25 Ford F-250/F-350 0-1" Lift

Vehicle Fitment

• 2017-2025 Ford F-250 Super Duty (Rear, 4WD, 0-1" Lift)
• 2017-2025 Ford F-350 Super Duty (Rear, 4WD, 0-1" Lift)

Features

• FOX Performance Series 2.0 smooth body rear shock with remote reservoir

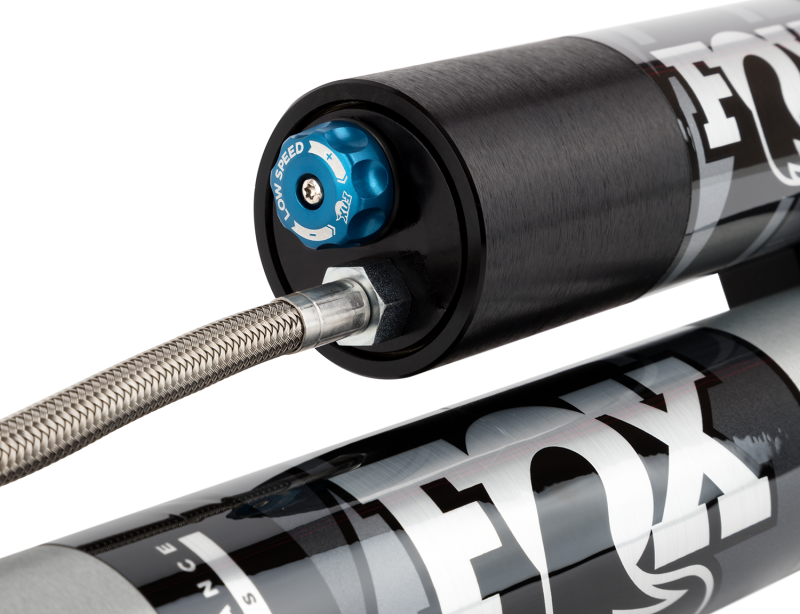

• Adjustable Low-Speed Compression (LSC) damping with multiple settings
• 2.0" impact-extruded 6061-T6 aluminum shock body for superior heat dissipation
• External reservoir increases oil and nitrogen capacity
• Race-developed high-flow piston design for consistent performance
• Application-specific valving tuned for Super Duty rear suspension
• Clear-anodized finish for corrosion resistance and durability
• Quiet nitrile rubber bushings for improved articulation and NVH control

Specifications

• Part Number: 985-26-174
• Series: 2.0 Performance Series
• Position: Rear shock absorber
• Extended Length: ~30.02" (76.2 cm)
• Compressed Length: ~17.85" (45.3 cm)
• Travel: ~12.12" (30.8 cm)
• Body Diameter: 2.0" (50.8 mm)

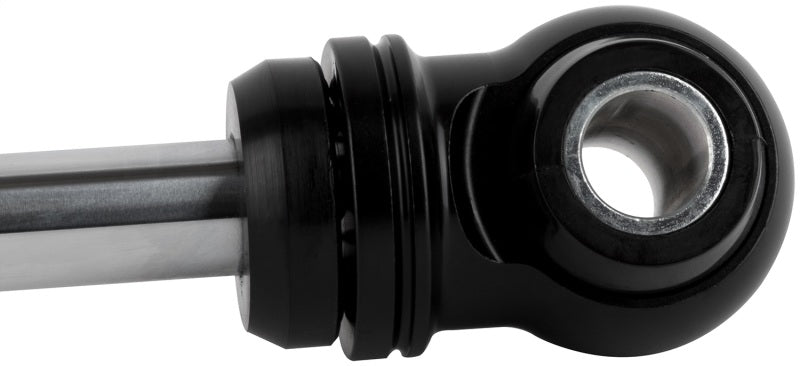

• Mounting: Eyelet top and bottom

Included Components

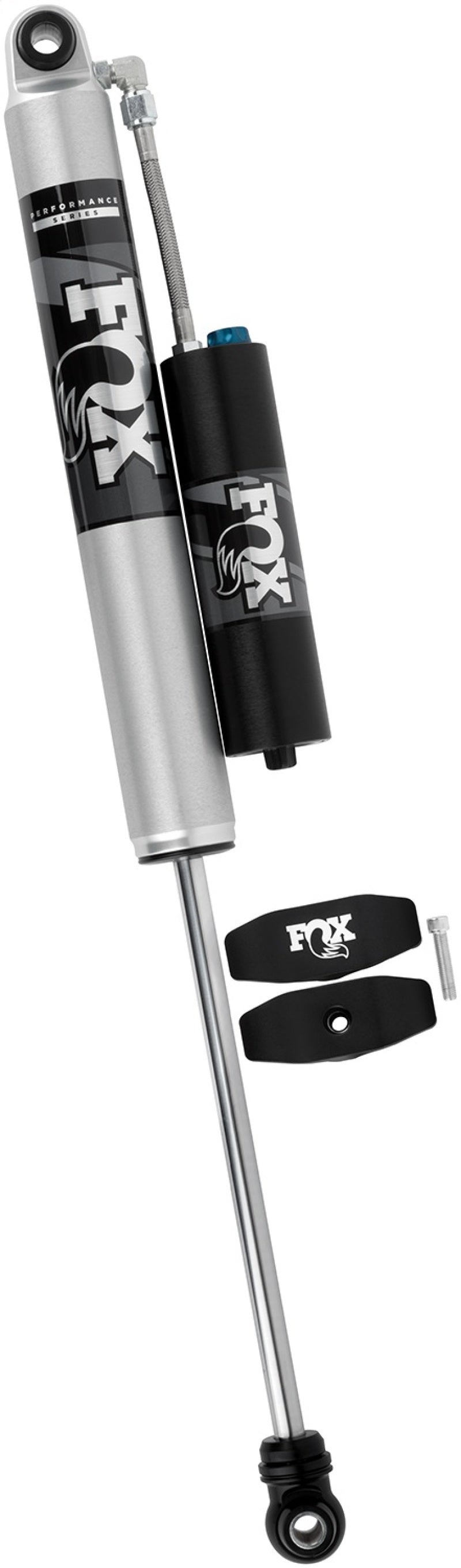

• 1x Rear shock absorber (985-26-174)
• 1x Billet aluminum reservoir clamp
• Installation hardware (washers, bushings, nuts)

Product Description

The FOX 985-26-174 Performance Series 2.0 Rear Shock is a high-performance adjustable suspension upgrade designed for the rear suspension of 2017-2025 Ford F-250 and F-350 Super Duty trucks equipped with 4WD and 0-1" lift heights. Built with a 2.0" impact-extruded 6061-T6 aluminum body and external reservoir, this shock offers superior heat dissipation and consistent damping performance for both off-road trails and everyday driving.

Its Low-Speed Compression (LSC) adjuster lets you fine-tune ride firmness to match load conditions and terrain. Race-developed high-flow piston and application-specific valving deliver predictable handling and enhanced control over stock shocks. Sold individually with included hardware and a billet reservoir clamp, the 985-26-174 is a direct-fit performance upgrade for lifted or stock-height Super Duty rear suspension applications.
