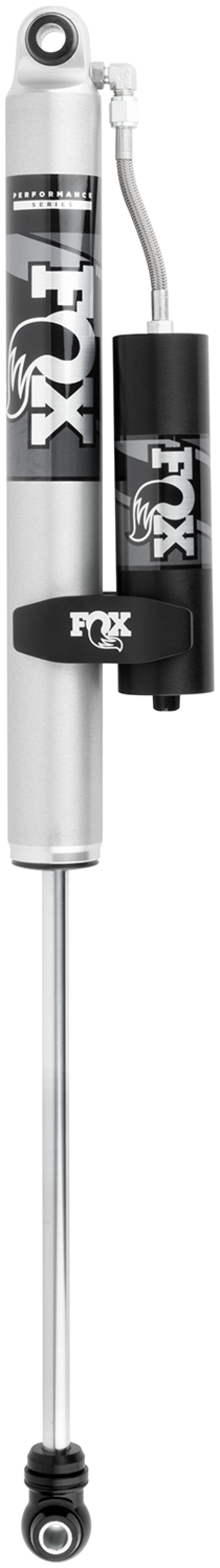

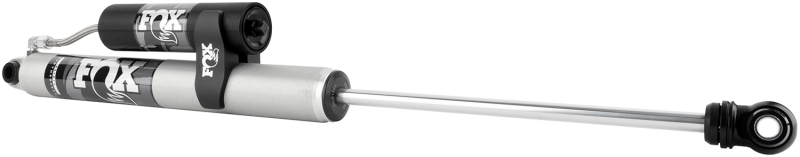

Fox 985-24-149 2.0 Perf Series Rear Reservoir Shock for '17-25 Ford Super Duty

Vehicle Fitment

• 2017-2025 Ford F-250 Super Duty (Rear, 4WD, 1.5-3.5" Lift)
• 2017-2019 Ford F-350 Super Duty (Rear, 4WD, 1.5-3.5" Lift)
• 2020-2025 Ford F-350 Super Duty (Rear, 4WD, 1.5-3.5" Lift)

Features

• Fox 2.0 Performance Series smooth-body rear reservoir shock
• External reservoir increases oil and nitrogen capacity for improved heat management
• Internal Floating Piston (IFP) separates gas from shock oil for consistent damping
• Race-developed high-flow piston and application-specific valving

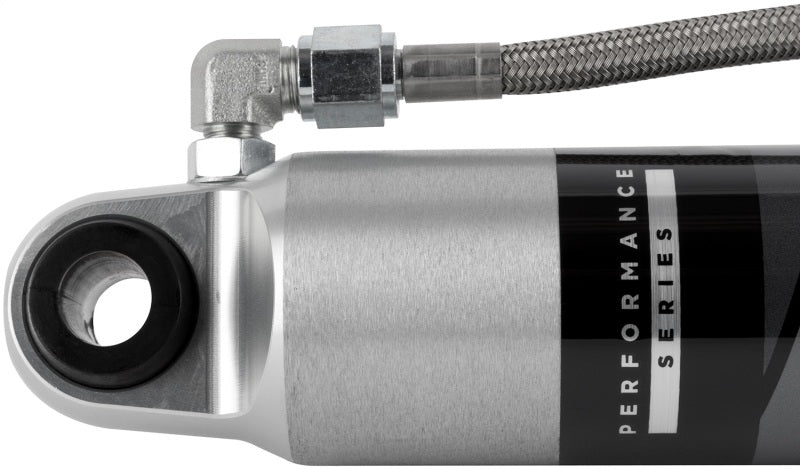

• 2.0" impact-extruded 6061-T6 aluminum body resists corrosion
• Clear-anodized body finish with CNC-machined billet aluminum components
• 5/8" hard chrome-plated, heat-treated alloy steel shaft

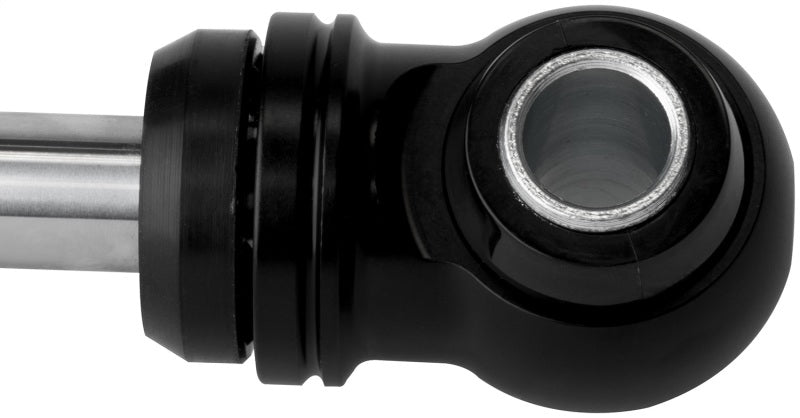

• Quiet nitrile rubber bushings for increased articulation and reduced noise

Specifications

• Part Number: 985-24-149
• Position: Rear (driver or passenger side)
• Extended Length: ~33.45"
• Compressed Length: ~19.85"
• Travel/Stroke: ~13.6"
• Body Diameter: 2.0"
• Reservoir Type: External smooth-body reservoir
• Compatible Lift Range: 1.5-3.5" rear lift applications
• Mount Type: Eyelet top & bottom

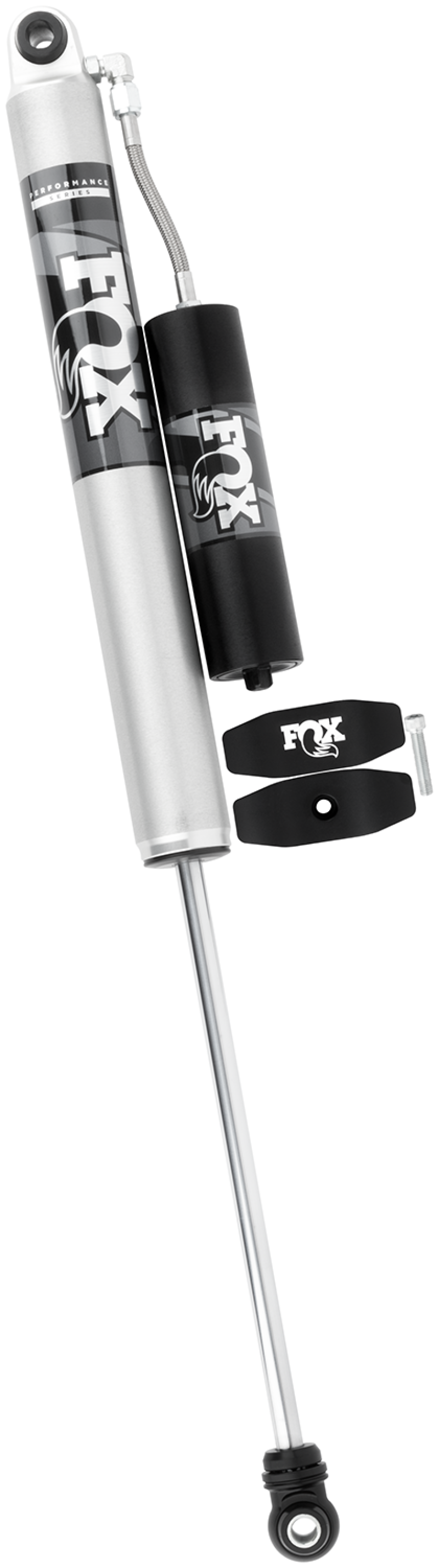

Included Components

• 1x Fox 2.0 Performance Series rear reservoir shock (985-24-149)
• 1x CNC-machined aluminum reservoir clamp

Product Description

The Fox 985-24-149 2.0 Performance Series rear reservoir shock is a high-performance suspension upgrade engineered specifically for lifted Ford Super Duty trucks including F-250 and F-350 models from 2017 through 2025 with rear lift heights in the range of 1.5" to 3.5". Built with an external reservoir that increases oil and nitrogen capacity, this smooth-body shock provides enhanced cooling and consistent damping under demanding driving conditions. The Internal Floating Piston (IFP) design keeps gas separated from shock oil to minimize aeration for reliable performance over rough terrain or extended highway travel.

Constructed with a durable 2.0" impact-extruded aluminum body finished in clear anodizing, the 985-24-149 resists corrosion while efficiently dissipating heat for long service life. Precision-tuned valving paired with a race-developed high-flow piston delivers controlled rebound and improved ride quality whether hauling, towing, or off-roading. Sold individually with a CNC-machined reservoir clamp included, this shock is ideal for Super Duty owners seeking a direct-bolt performance upgrade for rear suspension on lifted trucks.
