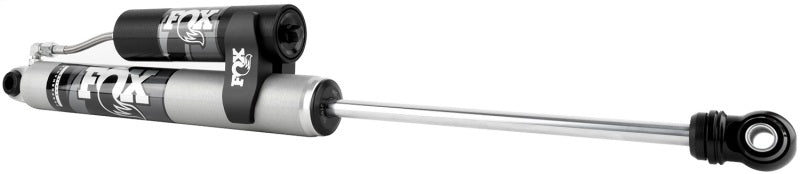

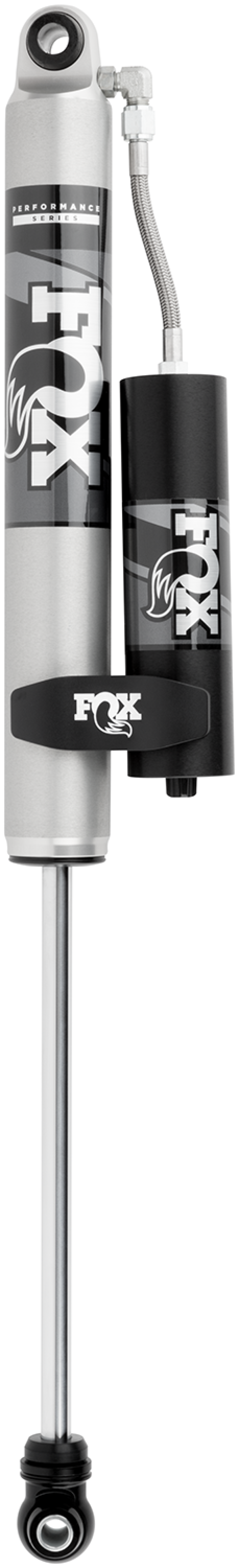

Fox 985-24-174 2.0 Perf Series Rear Reservoir Shock for '17-25 Ford Super Duty

Vehicle Fitment

• 2017-2025 Ford F-250 Super Duty (Rear, 4WD, 0-1" Lift)
• 2017-2025 Ford F-350 Super Duty (Rear, 4WD, 0-1" Lift)

Features

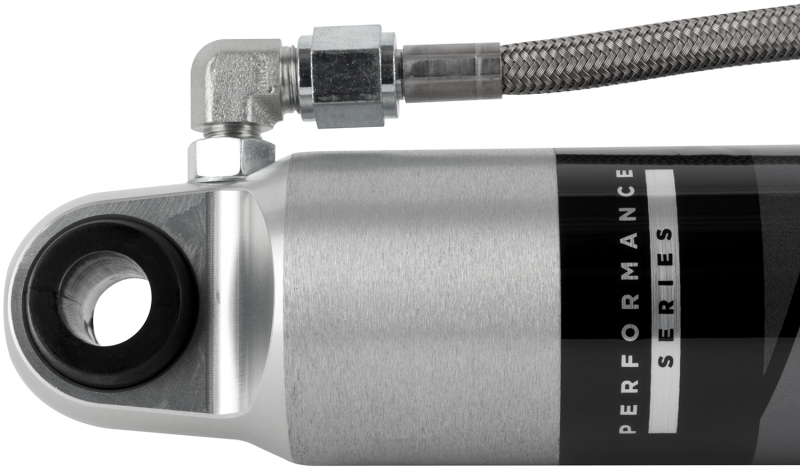

• Fox 2.0 Performance Series smooth-body rear shock with external reservoir
• External reservoir increases oil and nitrogen capacity for improved cooling
• Internal Floating Piston (IFP) separates gas from oil to reduce aeration
• Race-developed high-flow piston for controlled rebound and handling
• Application-specific valving optimized for Super Duty rear suspension
• 2.0" impact-extruded 6061-T6 aluminum body resists corrosion
• Clear-anodized finish and CNC-machined billet components

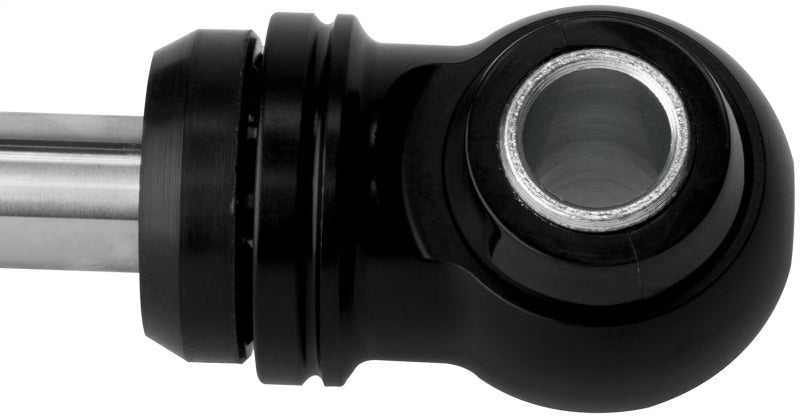

• Quiet nitrile rubber bushings for increased articulation and reduced noise

Specifications

• Part Number: 985-24-174
• Position: Rear (driver or passenger side)
• Extended Length: ~29.95"
• Compressed Length: ~17.85"
• Travel/Stroke: ~12.10"
• Body Diameter: 2.0"
• Reservoir Type: Remote external reservoir
• Compatible Lift Range: 0-1" rear lift applications
• Top & Bottom Mount: Eyelet

Included Components

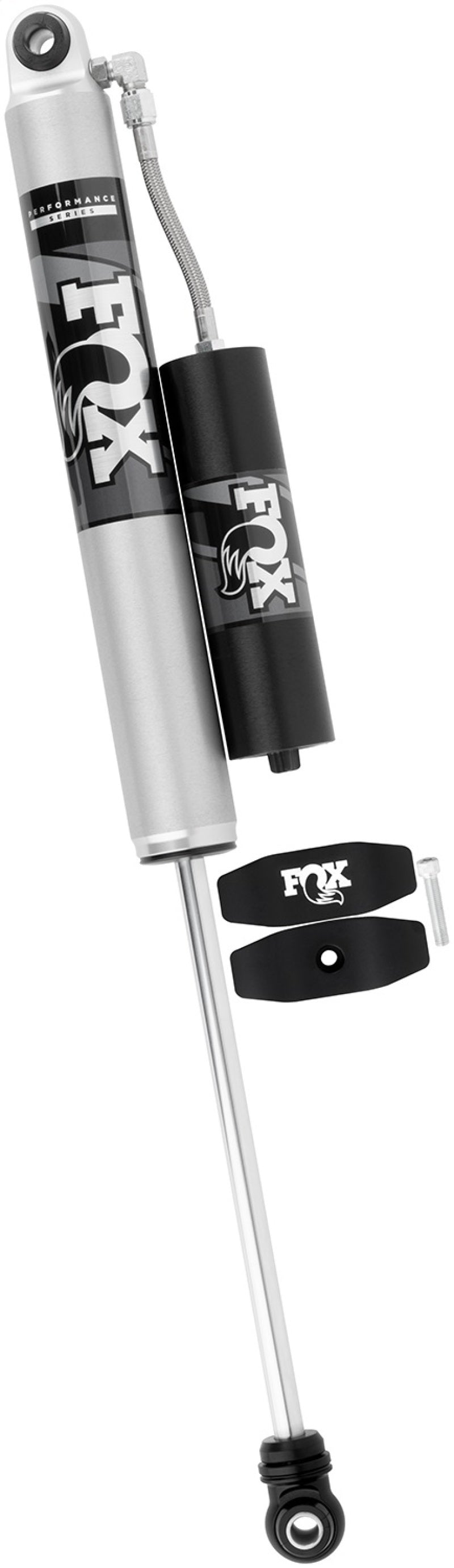

• 1x Fox 2.0 Performance Series rear reservoir shock (985-24-174)
• 1x CNC-machined aluminum reservoir clamp

Product Description

The Fox 985-24-174 2.0 Performance Series rear reservoir shock is engineered to upgrade the rear suspension damping on Ford Super Duty trucks from 2017 through 2025 with stock ride height or up to approximately 1" of lift. Featuring a smooth-body design with an external reservoir, this shock increases oil and nitrogen capacity for enhanced heat dissipation and consistent performance under varied driving conditions. Internal Floating Piston (IFP) technology helps separate gas from shock oil to minimize aeration and provide smooth, predictable damping during highway cruising or off-road use.

Constructed with a lightweight yet durable 2.0" impact-extruded 6061-T6 aluminum body with a clear-anodized finish, the 985-24-174 resists corrosion and efficiently manages heat for long service life. Its race-developed high-flow piston and vehicle-specific valving deliver improved control and handling over stock shocks, while quiet nitrile rubber bushings improve articulation and reduce noise. Sold individually with a billet aluminum reservoir clamp included, this rear shock is ideal for Super Duty owners seeking a direct-fit performance upgrade.
