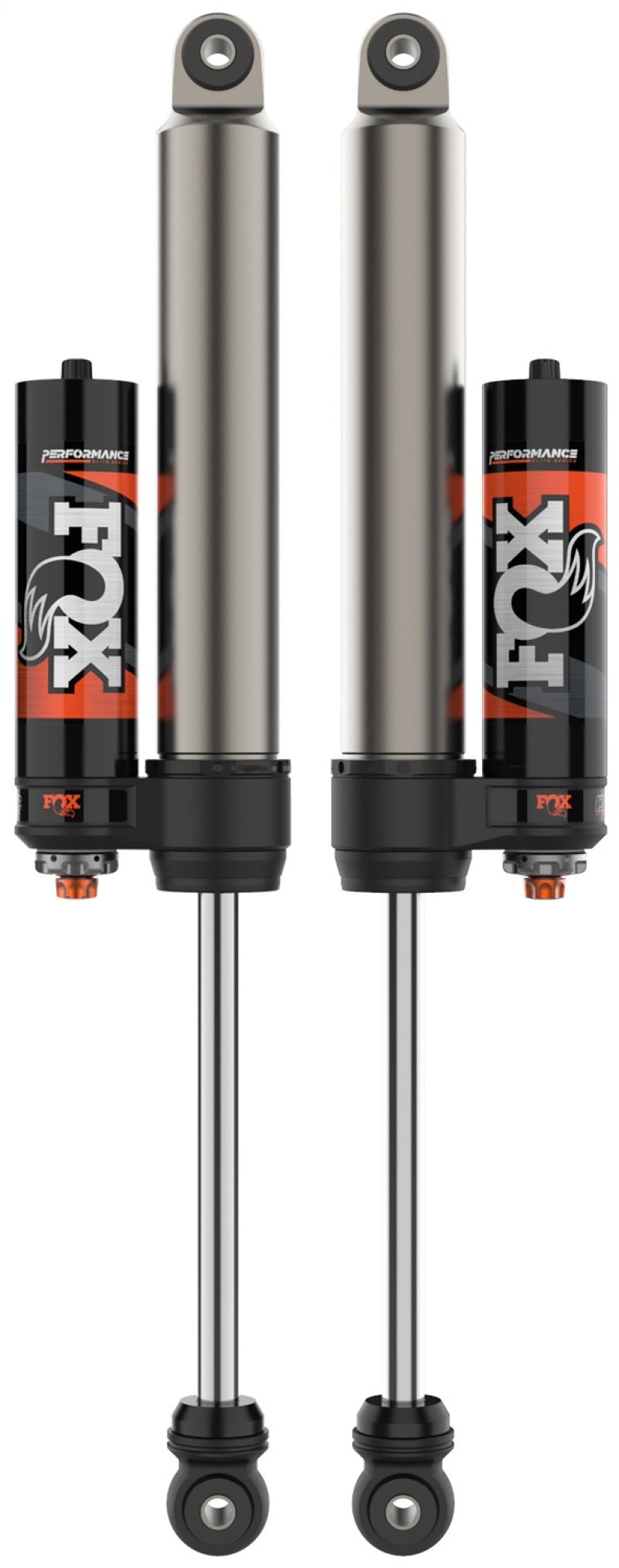

FOX 883-26-102 Perf. Elite 2.5 Rear Shocks w/4-6" Lift for 14-25 Dodge Ram 3500

Vehicle Fitment

• 2014-2025 Ram 3500 (2WD/4WD)

Fitment Notes

• Rear position -- designed for trucks with 4-6" of rear suspension lift
• Single rear wheel (SRW) trucks only
• Does NOT fit air suspension equipped trucks
• Sold as a pair with mounting hardware included
• Direct bolt-on -- factory mounting bolts are reused
• For 0-1.5" lift, use 883-26-065; for 2-3.5" lift, use 883-26-101
• Ram 2500 equivalent at 4-6" lift use: 883-26-067

Features

• Performance Elite Series 2.5 remote reservoir monotube shock
• Dual Speed Compression (DSC) adjuster -- 12 low-speed and 10 high-speed settings
• 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body
• External reservoir increases oil and nitrogen capacity for fade-free performance
• Race-developed high-flow piston with application-specific valving
• 7/8" hard chrome plated heat-treated alloy steel shaft
• PTFE-lined heat-treated alloy steel spherical bearings
• Redundant sealing pack -- main seal, wiper seal, and scraper seal
• Black-anodized CNC-machined 6061-T6 billet aluminum components

Specifications

• Part Number: 883-26-102
• Series: Performance Elite 2.5
• Type: Remote Reservoir Monotube Shock (Pair)
• Position: Rear
• Adjuster: DSC -- Dual Speed Compression
• Body Diameter: 2.5"
• Body Material: 6061-T6 Aluminum, Hard Anodized
• Shaft Diameter: 7/8"
• Extended Length: 31.61"
• Compressed Length: 19.43"
• Travel: 12.18"
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Lift Range: 4-6"
• Warranty: FOX 1-Year Limited

Included Components

• Performance Elite 2.5 rear reservoir shocks (pair)
• Remote reservoir mounting clamps
• Mounting hardware (bushings, washers, nuts)

Product Description

The FOX 883-26-102 is a pair of Performance Elite Series 2.5 rear reservoir shocks designed for 2014-2025 Ram 3500 trucks equipped with 4 to 6 inches of rear suspension lift. Built around a 2.5-inch impact extruded and CNC machined 6061-T6 aluminum body with a hard anodized finish, these shocks deliver race-proven damping performance in a direct bolt-on package.

The external remote reservoir increases oil and nitrogen capacity for consistent fade-free operation under heavy use. FOX's Dual Speed Compression (DSC) adjuster provides independent low-speed and high-speed compression tuning, allowing precise adjustment for terrain, load, and driving style. Application-specific valving paired with a race-developed high-flow piston ensures predictable ride quality from highway cruising to aggressive off-road conditions.
