FOX 883-02-114 2.5 Factory Series Front Coilovers w/4-6" Lift for 14-20 F150 4WD

Vehicle Fitment

• 2014-2020 Ford F-150 4WD (gas engine, all trims)

Fitment Notes

• 4WD only -- does NOT fit 2WD F-150
• Requires aftermarket upper control arms (UCAs) -- not included
• Lift range: 4-6 in. front -- preset at max lift height from factory
• Spring preload adjustable for fine-tuning ride height
• Sold as a pair (2 coilovers)
• Professional installation and alignment required

Features

• 2.5 in. smooth bore seamless alloy reservoir body
• External reservoir -- dissipates heat for consistent damping
• Application-specific valving -- tuned for F-150 4WD
• IFP separates oil from high-pressure nitrogen gas
• Black anodized CNC-machined aluminum components
• Adjustable spring preload and ride height
• Preset at max lift height out of box
• Bolt-on direct fit -- no cutting or welding required
• All necessary washers, bushings, and nuts included
• 1-year limited warranty

Specifications

• Part Number: 883-02-114
• Series: 2.5 Factory Series
• Type: Coilover w/Remote Reservoir
• Position: Front
• Body Diameter: 2.5 in.
• Extended Length: 28.44 in.
• Compressed Length: 22.85 in.
• Travel: 5.59 in.
• Lift Range: 4-6 in.
• Quantity: Pair (2 coilovers)

Included Components

• 2x FOX 2.5 Factory Series front coilovers w/reservoir
• Mounting hardware (washers, bushings, nuts)

Product Description

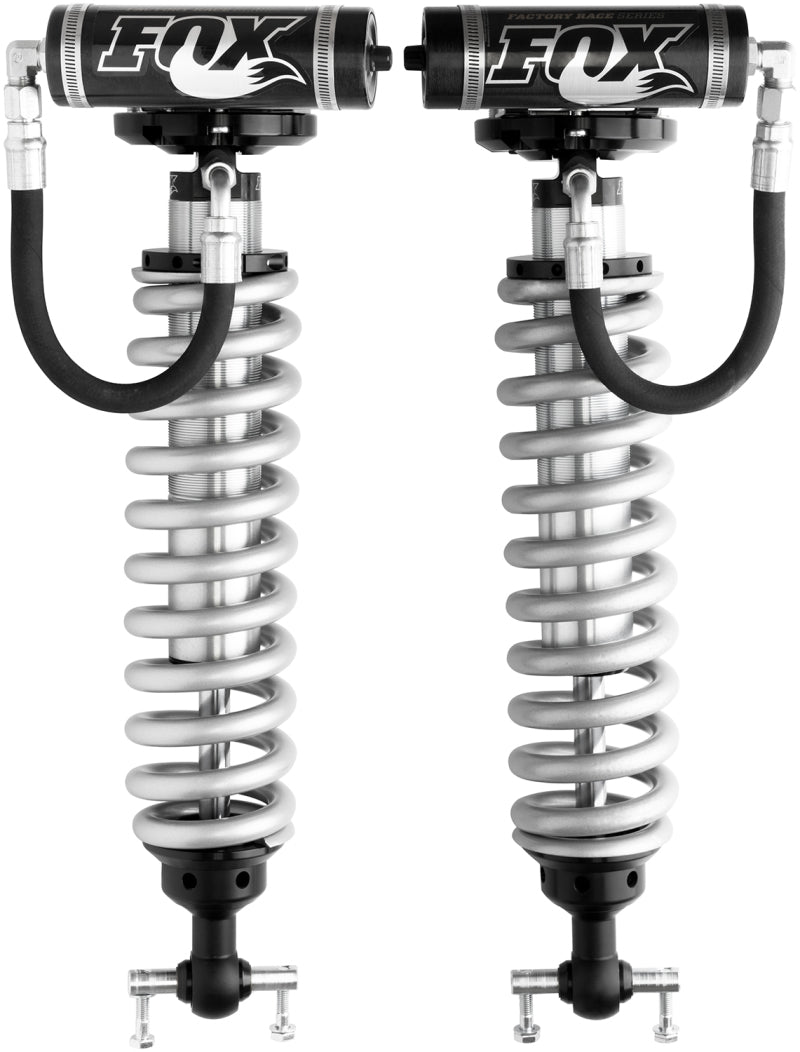

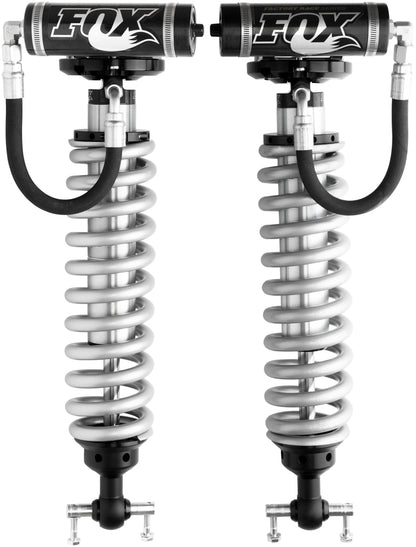

The FOX 883-02-114 is a 2.5 Factory Series front coilover pair for the 2014-2020 Ford F-150 4WD (gas only) with 4-6 inches of front lift. The 2.5-inch external reservoir body dissipates heat faster than conventional steel shocks, delivering consistent damping performance across rough terrain and high-speed off-road driving. Application-specific valving is tuned directly for the F-150 4WD platform, and coilovers arrive preset at the maximum lift height out of the box with adjustable spring preload for fine-tuning.

Requires aftermarket upper control arms (sold separately). 4WD and gas engine only -- not compatible with 2WD or diesel models. Bolt-on installation with no cutting or welding required. Professional installation and alignment required. Backed by FOX's 1-year limited warranty.
