FOX 985-24-169 Perf Series 2.0 IFP Rear Shock 0-1.5" for 14-26 Ram 2500/3500 4WD

Vehicle Fitment

• 2014-2026 Ram 2500 4WD (All trims, 5.7L HEMI V8 / 6.4L HEMI V8 / 6.7L Cummins I6 Diesel)
• 2014-2026 Ram 3500 4WD SRW (All trims, 6.4L HEMI V8 / 6.7L Cummins I6 Diesel)

Fitment Notes

• 4WD only -- does not fit 2WD models
• For 0-1.5" rear lift
• Rear position only
• Sold individually -- order two for a complete rear pair
• Reuses factory shock mounting bolts
• Shock boots and roost shields sold separately
• Mounting plates sold separately

Features

• 2.0" smooth body design
• Impact-extruded 6061-T6 aluminum body
• Black anodized CNC-machined components
• Internal Floating Piston (IFP) monotube design
• Race-developed high-flow piston
• Application-specific valving
• Nitrogen-charged gas chamber
• Improved heat dissipation over steel
• Corrosion-resistant aluminum body

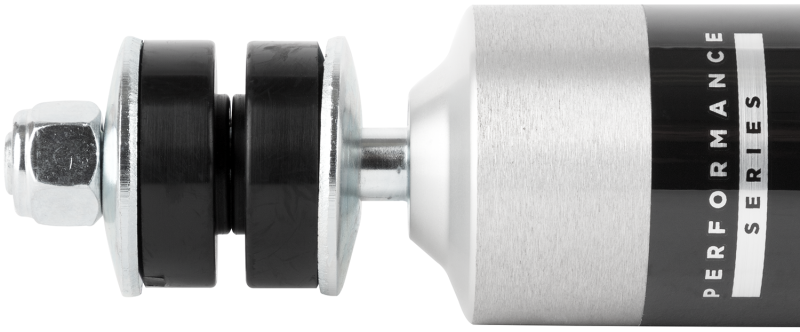

• SM3 top mount

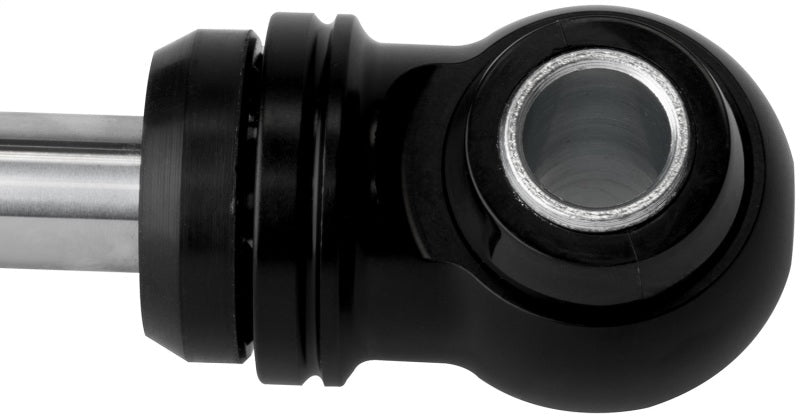

• ES7 bottom mount
• Bolt-on installation
• FOX limited 1-year warranty

Specifications

• Series: Performance 2.0
• Position: Rear
• Body size: 2.0"
• Body material: 6061-T6 aluminum
• Reservoir type: Internal Floating Piston (IFP)
• Extended length: 24.650"
• Collapsed length: 15.550"
• Shock stroke: 9.100"
• Top mount: SM3
• Bottom mount: ES7
• Lift range: 0-1.5"
• Drivetrain: 4WD
• UPC: 00714686861380
• Warranty: 1-year limited

Included Components

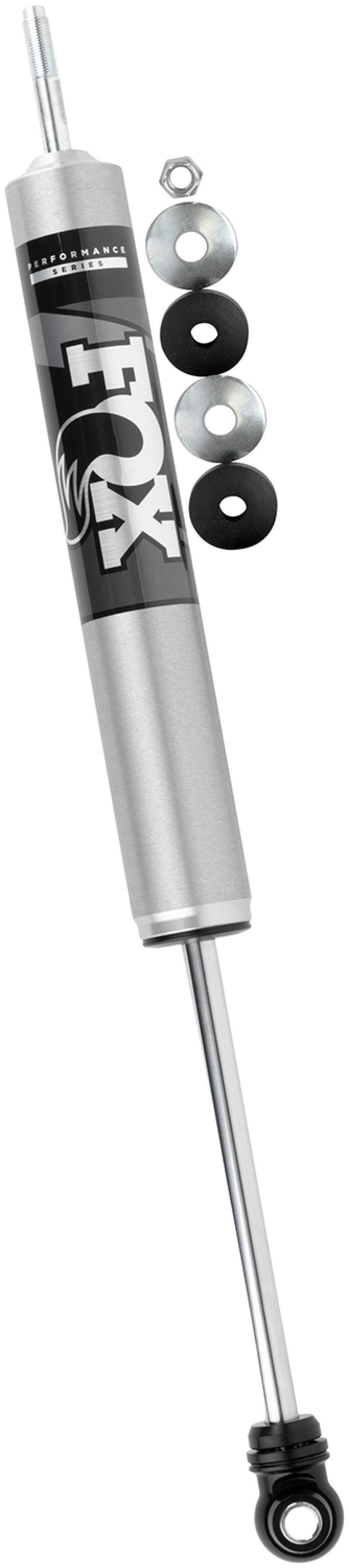

• 1x FOX Performance Series 2.0 rear shock
• 1x Factory hardware kit (washers, bushings, nuts)

Product Description

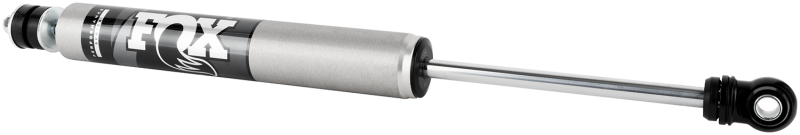

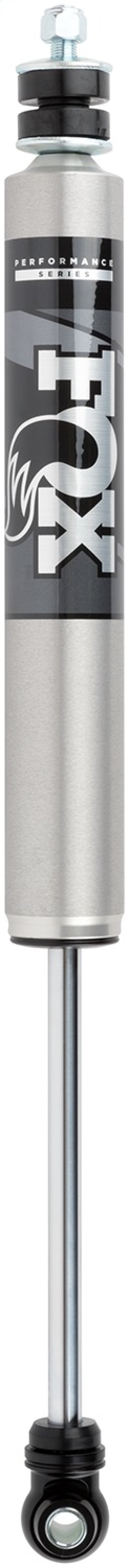

The FOX 985-24-169 Performance Series 2.0 Smooth Body IFP rear shock delivers race-proven damping to 2014-2026 Ram 2500 and 3500 4WD trucks running stock to 1.5" of rear lift. The 2.0" impact-extruded 6061-T6 aluminum body dissipates heat far faster than steel and resists corrosion in any climate, while inside the body, FOX's race-developed high-flow piston design pairs with application-specific valving tuned for the heavy-duty chassis. The Internal Floating Piston (IFP) monotube design isolates shock oil from the high-pressure nitrogen gas charge, eliminating cavitation and fade under sustained load.

Each shock is a direct bolt-on replacement using factory mounting bolts, with SM3 top mount and ES7 bottom mount geometry matched to the OEM Ram 2500/3500 HD platform. 4WD only -- does not fit 2WD models. Sold individually; order two for a complete rear pair. Backed by FOX's limited 1-year warranty against defects in materials and workmanship.
