FOX 985-26-191 Front Adj Resi Shock for 11-19 Silverado/Sierra 2500/3500

Vehicle Fitment

• 2011-2019 Chevy Silverado 2500 HD (front, 1.5-3.5in lift, 2WD/4WD)
• 2011-2019 Chevy Silverado 3500 HD (front, 1.5-3.5in lift, 2WD/4WD)
• 2011-2019 GMC Sierra 2500 HD (front, 1.5-3.5in lift, 2WD/4WD)
• 2011-2019 GMC Sierra 3500 HD (front, 1.5-3.5in lift, 2WD/4WD)
• Position: Front
• Fitment confirmed through 2019 from trusted current sources. 2025 coverage unconfirmed at time of listing.

Features

• FOX 2.0 Performance Series smooth body reservoir shock with LSC adjuster

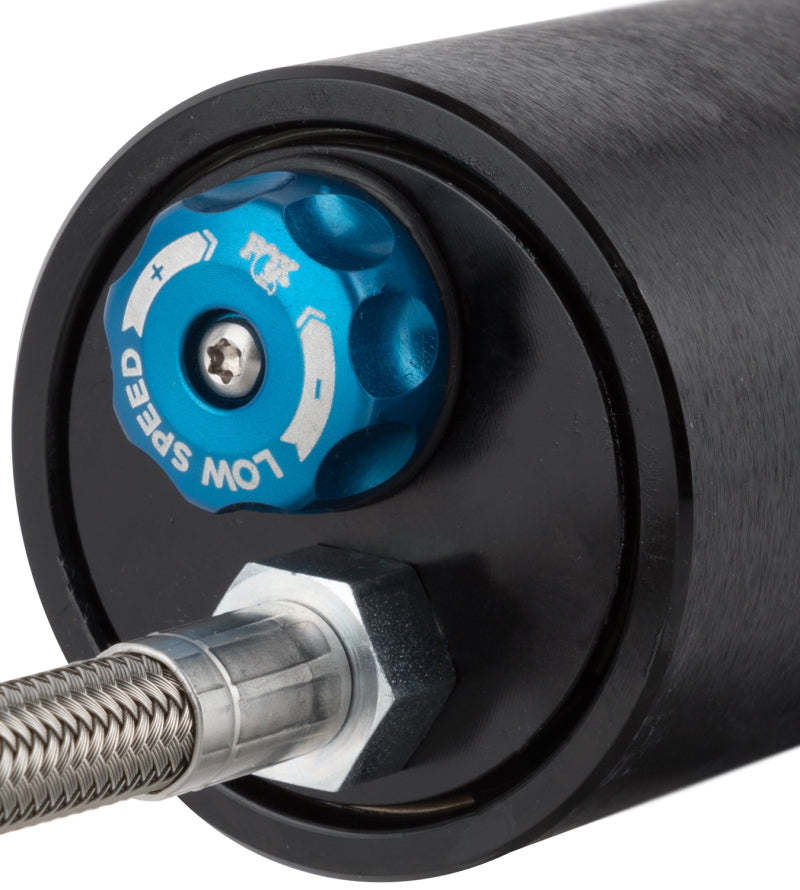

• Low-speed compression adjustability allows ride tuning for load, terrain, and comfort
• External reservoir increases oil and nitrogen capacity for improved damping consistency
• Vehicle-specific tuning for GM 2500HD/3500HD applications
• 2.0in impact-extruded 6061-T6 aluminum body helps dissipate heat faster than steel
• Clear-anodized body resists corrosion
• Race-developed high-flow piston design
• Monotube construction supports consistent on-road and off-road control
• Includes aluminum reservoir clamp
• Direct-fit front shock configuration for lifted HD truck applications

Specifications

• Position: Front
• Shock type: 2.0 Performance Series reservoir smooth body shock
• Adjustment type: LSC/compression adjustable
• Body diameter: 2.0in
• Front lift compatibility: 1.5-3.5in
• Travel: 7.12in
• Extended length: 20.28in
• Collapsed length: 13.18in

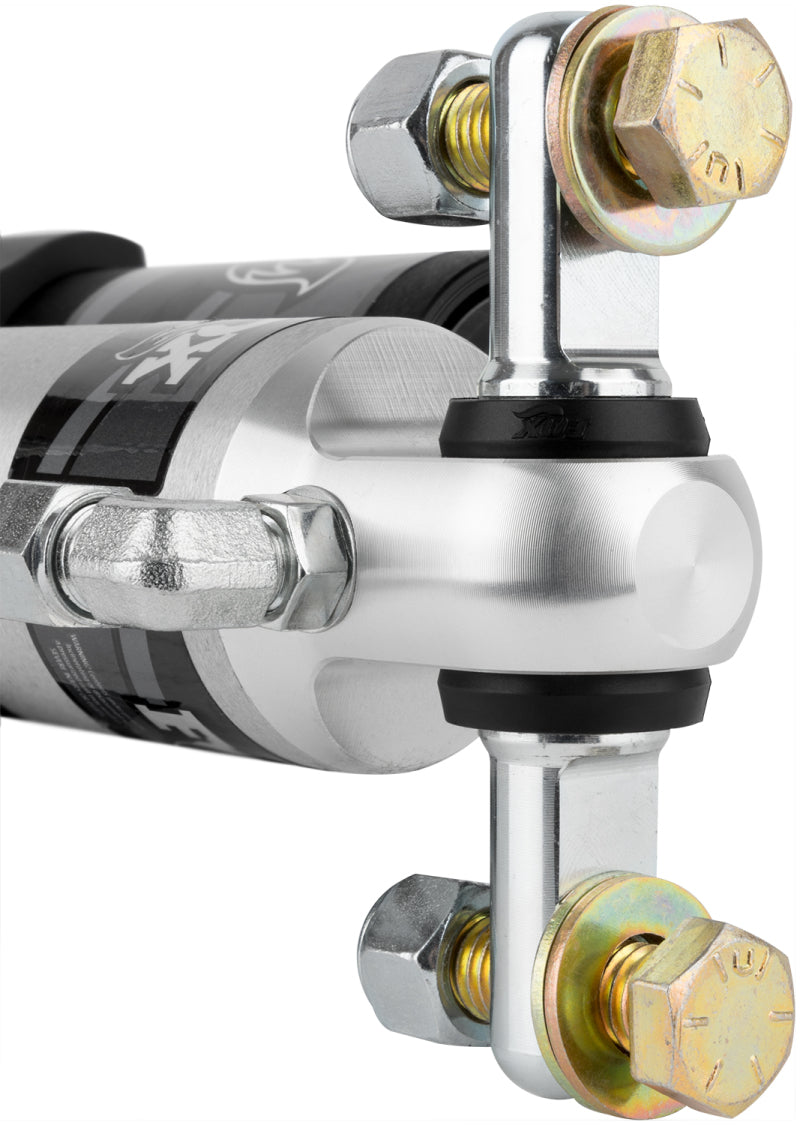

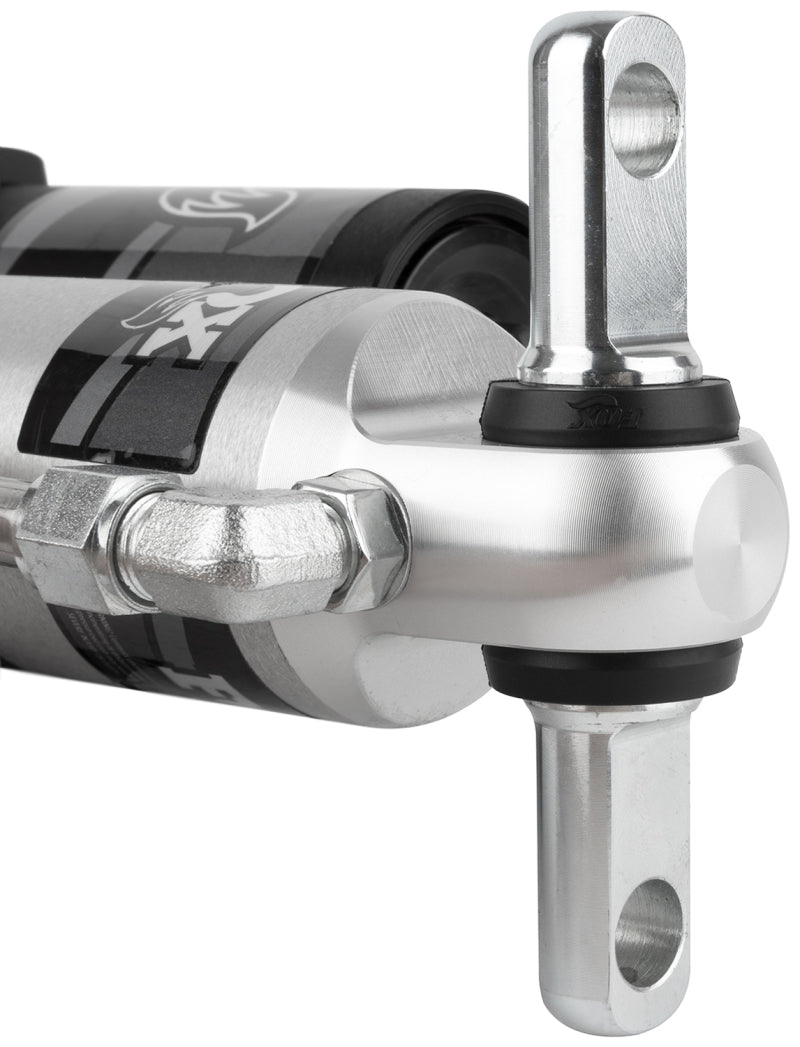

• Upper mount: Bar pin

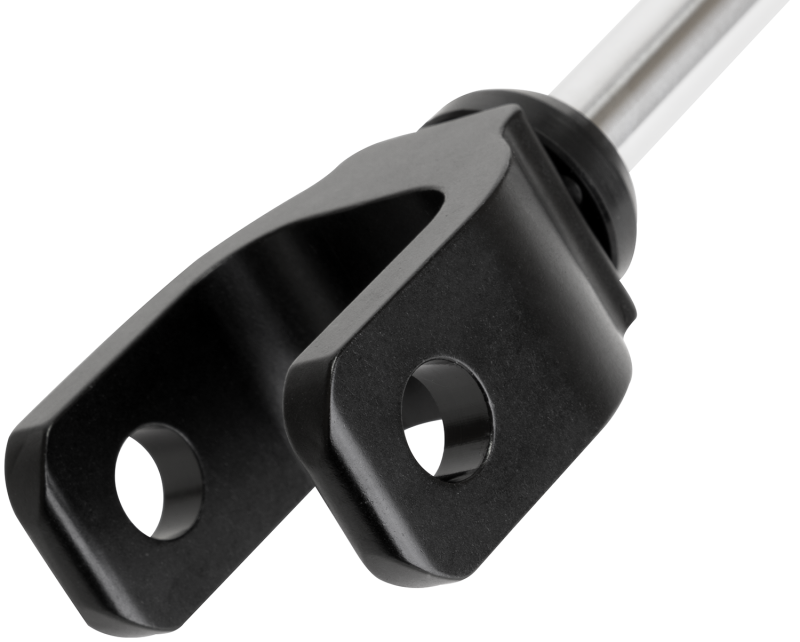

• Lower mount: Clevis
• Quantity: 1x shock sold individually

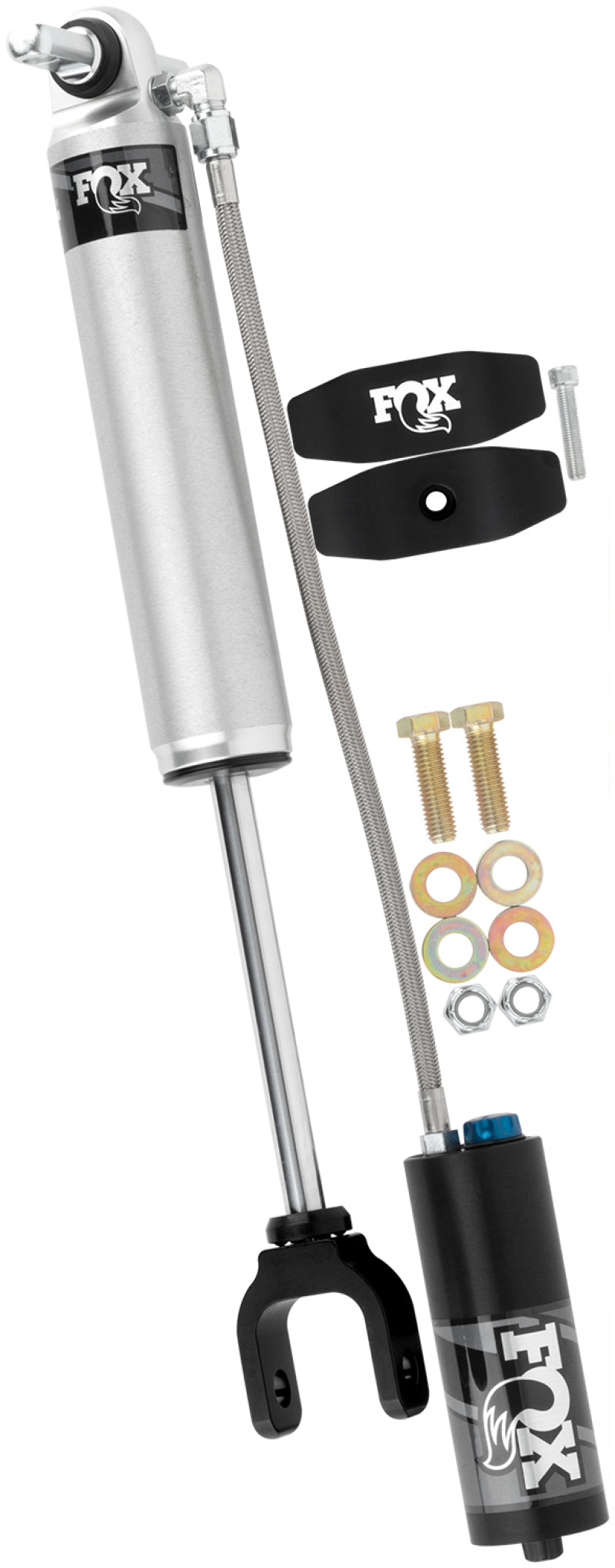

Included Components

• 1x Front adjustable reservoir shock
• 1x Aluminum reservoir clamp
• 1x Mounting hardware pack

Product Description

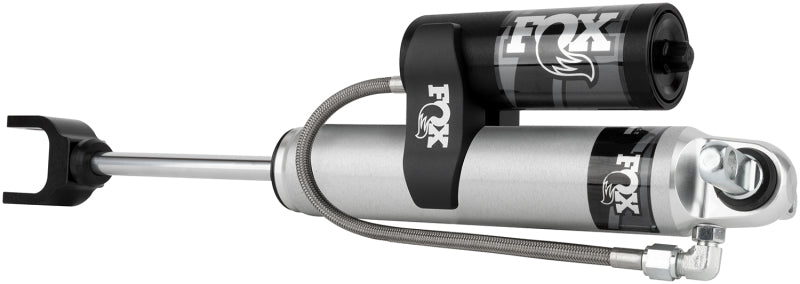

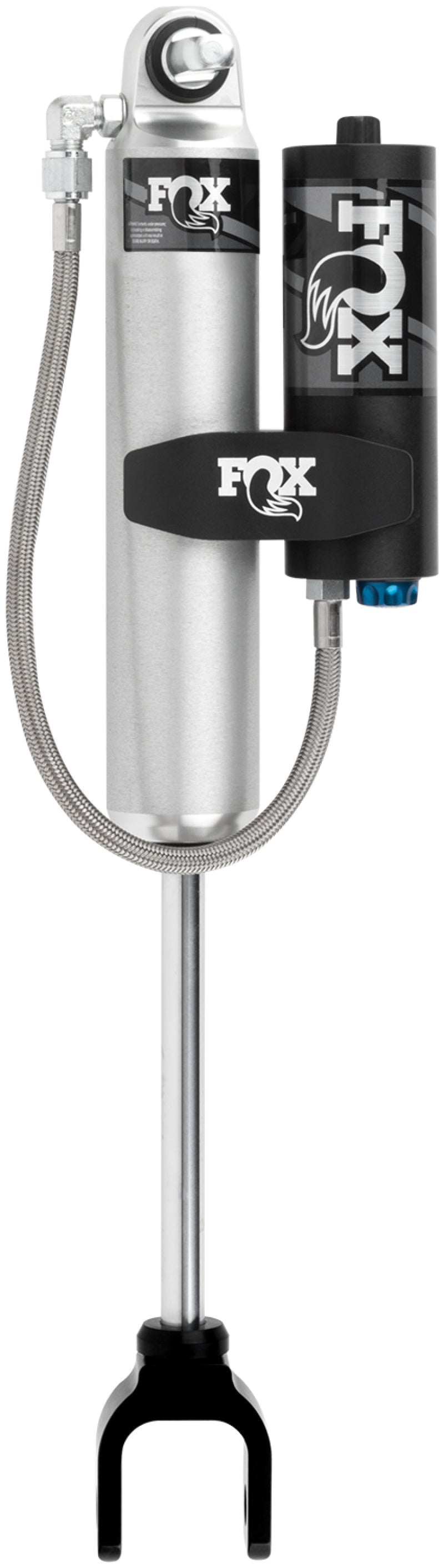

The FOX 985-26-191 is a 2.0 Performance Series front smooth body reservoir shock with low-speed compression adjustment for 2011-2019 Chevy Silverado and GMC Sierra 2500 HD and 3500 HD trucks. It is designed for drivers who want stronger front-end damping control, improved heat management, and added tuning flexibility over a standard non-adjustable shock. The external reservoir increases fluid and gas capacity, while the LSC adjuster allows the shock to be tuned for changing terrain, ride preferences, and vehicle load.

Verified trusted-source data supports front fitment for 2011-2019 GM 2500HD and 3500HD applications with 1.5 to 3.5 inches of front lift. The lift amount applies to the front only; rear lift is not provided by this part number. Cross-validated specs include 7.12 inches of travel, 20.28-inch extended length, 13.18-inch collapsed length, bar-pin upper mount, clevis lower mount, and an included aluminum reservoir clamp.

This shock is best suited for leveled or mildly lifted heavy-duty Silverado and Sierra builds used for towing, hauling, rough-road driving, and off-road travel. This part is sold individually, so 2x shocks are typically required for a complete front axle installation.
