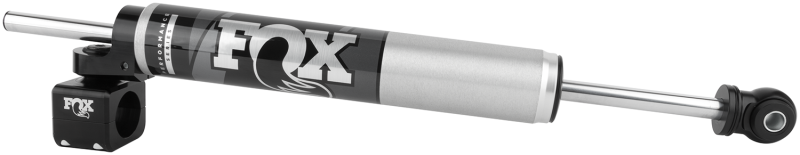

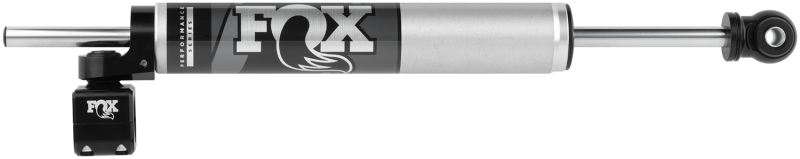

FOX 985-02-122 Perf. 2.0 TS Steering Stabilizer 1-5/8" for 07-18 Wrangler JK

Vehicle Fitment

• 2007-2018 Jeep Wrangler JK (All trims, 3.8L V6 / 3.6L Pentastar V6, 4WD)
• 2007-2018 Jeep Wrangler JK Unlimited (All trims, 3.8L V6 / 3.6L Pentastar V6, 4WD)

Fitment Notes

• 1-5/8" tie rod applications only
• For stock 1-3/8" tie rod, use FOX 985-02-121
• For 1-1/2" tie rod, use FOX 985-02-128
• Direct replacement for stock and aftermarket lift kits
• Sold individually
• Mounts to tie rod with included clamp and to track bar with included bolt
• Compatible with SteerSmarts 1-5/8" aftermarket tie rods
• Requires new track bar bolt -- included

Features

• Through Shaft (TS) architecture
• Eliminates shaft fluid displacement in both directions
• Neutral and consistent damping
• 2.0" impact-extruded and CNC-machined 6061-T6 aluminum body
• Clear-anodized for corrosion resistance
• Black-anodized CNC-machined 6061-T6 billet aluminum components
• 5/8" hard-chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving
• Internal Floating Piston (IFP) design
• Separates oil from high-pressure nitrogen gas
• Redundant sealing pack (main, wiper, scraper)
• Tames steering feedback from oversized tires
• Reduces stress on steering components
• Bolt-on installation
• Aluminum dissipates heat faster than steel
• Limited lifetime warranty

Specifications

• Series: Performance Series 2.0
• Type: Through-Shaft Steering Stabilizer
• Body size: 2.0"
• Body material: 6061-T6 aluminum, clear-anodized
• Shaft: 5/8" hard chrome plated alloy steel
• Reservoir type: Internal Floating Piston (IFP)
• Extended length: 23.27"
• Collapsed length: 15.08"
• Shock stroke: 8.19"
• Top mount: Eyelet
• Bottom mount: Tie rod clamp (1-5/8")
• UPC: 00611056861224
• Warranty: Limited lifetime

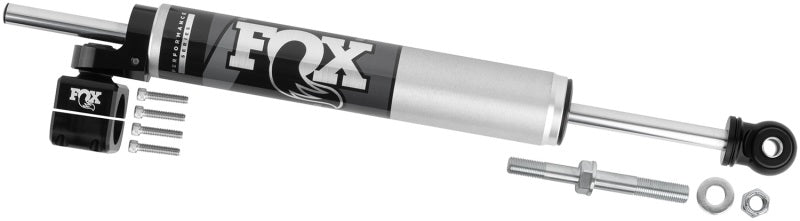

Included Components

• 1x FOX Performance Series 2.0 TS steering stabilizer
• 1x 1-5/8" tie rod clamp (top and bottom halves)
• 1x M14-1.5 track bar bolt
• 1x 1/2-20 lock nut
• 1x M14 washer
• 1x Mounting hardware kit
• 1x Installation instructions

Product Description

The FOX 985-02-122 Performance Series 2.0 TS Steering Stabilizer is engineered specifically for the 2007-2018 Jeep Wrangler JK and JK Unlimited equipped with a 1-5/8" tie rod (typical of aftermarket SteerSmarts and similar heavy-duty tie rod upgrades). Derived from FOX's original ATS stabilizer, the Through Shaft (TS) architecture is the breakthrough that eliminates shaft fluid displacement throughout the stabilizer's entire travel in both directions. Where conventional stabilizers push or pull steering back to a neutral state -- requiring dual opposing stabilizers to overcome -- the single TS unit delivers neutral and consistent damping of unwanted steering feedback in one compact bolt-on package.

The 2.0" impact-extruded 6061-T6 aluminum body is clear-anodized for corrosion resistance and dissipates heat far faster than steel, while inside, FOX's race-developed high-flow piston design pairs with application-specific valving tuned for the JK platform. The Internal Floating Piston (IFP) design separates oil from the high-pressure nitrogen gas charge to prevent cavitation under aggressive use. Black-anodized CNC-machined 6061-T6 billet aluminum components, a 5/8" hard-chrome plated heat-treated alloy steel shaft, and FOX's redundant sealing pack (main seal, wiper seal, scraper seal) ensure long-term reliability on oversized tires and demanding off-road conditions. Direct replacement for stock and aftermarket lift kits -- 1-5/8" tie rod required (use 985-02-121 for stock tie rods or 985-02-128 for 1-1/2" applications). Backed by FOX's limited lifetime warranty.
