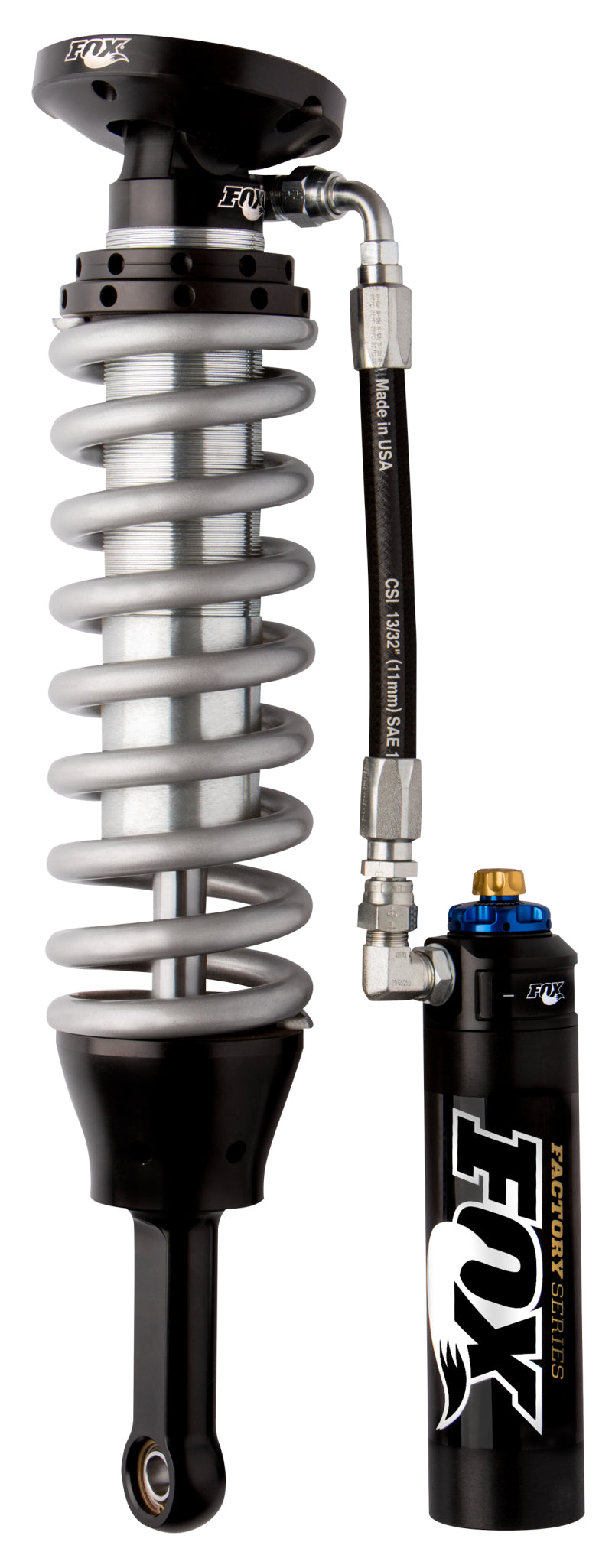

FOX 883-06-059 2.5 Factory Coilovers for 2007-2018 Silverado/Sierra 1500

Vehicle Fitment

• 2007-2018 Chevrolet Silverado 1500 (GMT900/K2XX, 4.3L V6, 4.8L V8, 5.3L V8, 6.0L V8, 6.2L V8; RWD/4WD where equipped)
• 2007-2018 GMC Sierra 1500 (GMT900/K2XX, 4.3L V6, 4.8L V8, 5.3L V8, 6.0L V8, 6.2L V8; RWD/4WD where equipped)
• 2007-2014 Chevrolet Suburban 1500 (GMT900; 5.3L V8, 6.0L V8; RWD/4WD where equipped)
• 2007-2015 Chevrolet Tahoe (GMT900; 4.8L V8, 5.3L V8, 6.0L V8; RWD/4WD where equipped)
• 2007-2014 GMC Yukon (GMT900; 4.8L V8, 5.3L V8, 6.0L V8; RWD/4WD where equipped)

Fitment Notes

• Front coil-over application for vehicles using a compatible 4-6.5 inch suspension lift configuration.
• Does not fit vehicles equipped with factory Magnetic Ride Control.
• Application requires the appropriate suspension/lift configuration and compatible mounting geometry.
• Trim availability varies by model year; verify the exact vehicle configuration before installation.

Features

• 2.5-inch Factory Series coil-over shock design
• Front application with remote reservoir
• Dual Speed Compression (DSC) adjuster
• Adjustable ride height through integrated coil-over assembly
• Adjustable preload for suspension tuning
• 4-6.5 inch lift application range
• 2.5-inch smooth-bore, honed seamless alloy shock body
• Application-specific valving for vehicle-specific damping performance
• 3.0-inch Eibach adjustable racing spring
• 7/8-inch hardened NitroSteel steel shaft
• External reservoir helps manage shock-fluid temperature
• Black-anodized CNC-machined aluminum components

Specifications

• Brand: FOX
• Part Number: 883-06-059
• Series: Factory Race Series
• Shock Size: 2.5 inches
• Application: Front
• Lift Height: 4-6.5 inches
• Collapsed Length: 18.350 inches
• Extended Length: 24.290 inches
• Shock Travel: 5.940 inches
• Top Mount: TM
• Bottom Mount: Eyelet
• Reservoir: Remote
• Adjustment: Dual Speed Compression (DSC)
• Body Material: Steel
• Body Finish: Zinc plated with double-clear coating

Included Components

• 2x Front Factory Series coil-over reservoir shocks

Product Description

The FOX 883-06-059 Factory Series 2.5 coil-over reservoir shock set is a front suspension upgrade engineered for compatible 2007-2018 GM 1500-platform applications using approximately 4-6.5 inches of lift. The integrated coil-over design combines the shock absorber and adjustable racing spring into a single assembly, providing adjustable preload and ride-height capability while delivering application-specific damping.

Each assembly uses a 2.5-inch seamless alloy shock body, remote reservoir, 7/8-inch hardened shaft, and application-specific valving. The Dual Speed Compression adjuster provides separate low- and high-speed compression tuning for adapting damping characteristics to different driving and terrain conditions.

This set is intended for the front of compatible Chevrolet Silverado 1500 and GMC Sierra 1500 configurations and selected GM SUV applications listed above. It is not intended for vehicles equipped with Magnetic Ride Control, and the vehicle's lift system and mounting configuration must be compatible with the FOX coil-over assembly before installation.
