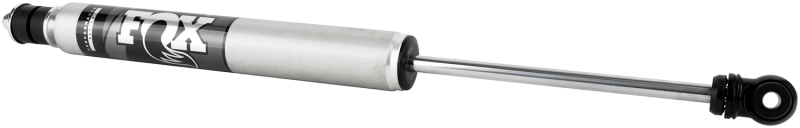

Fox 985-24-196 2.0 Perf Series Rear Shock for '05-21 Toyota Tacoma 4-6" Lift

Vehicle Fitment

• 2005-2021 Toyota Tacoma (Rear, 2WD/4WD, 4-6" Lift)

Features

• Fox 2.0 Performance Series smooth-body mono-tube rear shock
• Internal Floating Piston (IFP) separates shock oil from nitrogen gas for consistent damping
• Race-developed high-flow piston and application-specific valving
• 2.0" impact-extruded 6061-T6 aluminum body resists corrosion and dissipates heat
• Clear-anodized finish with CNC-machined billet aluminum components
• 5/8" hard chrome-plated, heat-treated alloy steel shaft for strength
• Redundant seal pack system enhances durability under harsh use

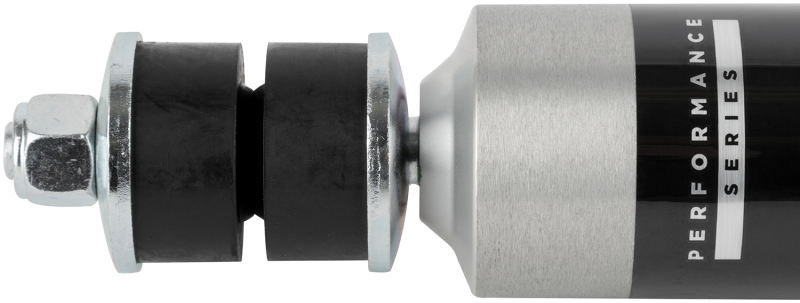

• Quiet nitrile rubber bushings for reduced noise and improved articulation

Specifications

• Part Number: 985-24-196
• Position: Rear (driver or passenger side)
• Extended Length: ~27.25"
• Compressed Length: ~16.65"
• Stroke/Travel: ~10.60"
• Body Diameter: 2.0"
• Reservoir Type: Internal Floating Piston (IFP)
• Compatible Lift Range: 4-6" rear lift applications

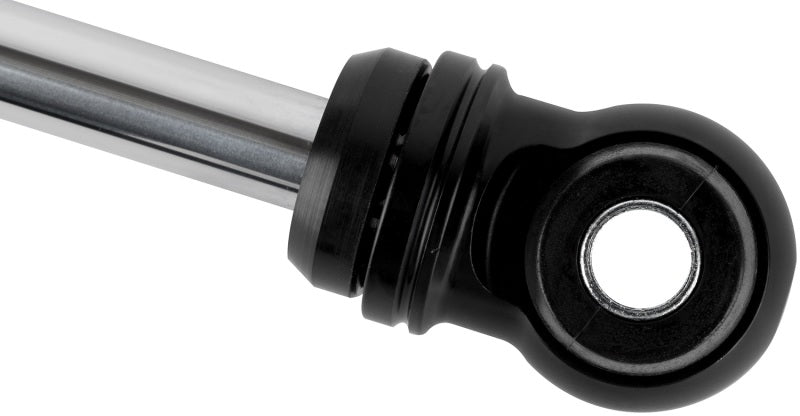

• Top Mount: Stem; Bottom Mount: Eyelet/Sleeve

Included Components

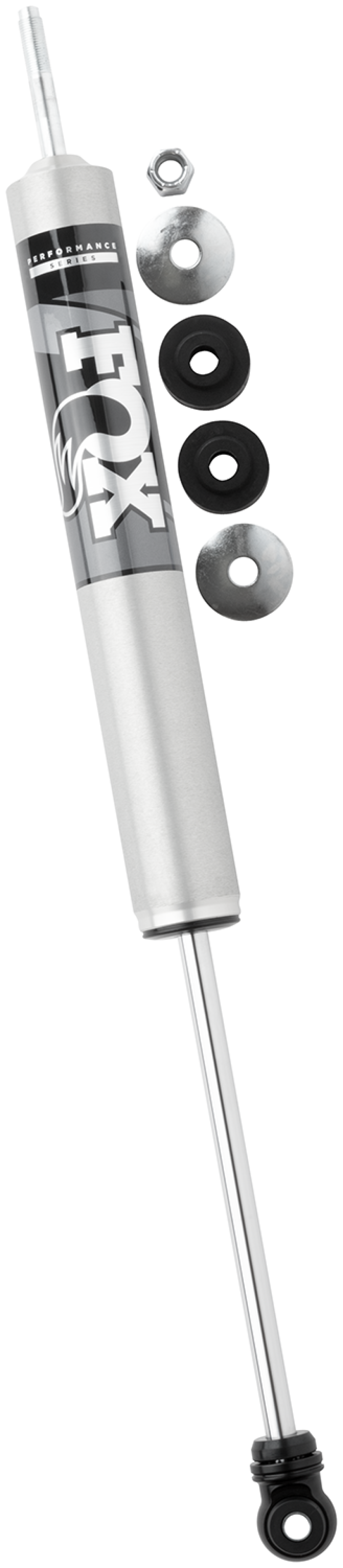

• 1x Fox 2.0 Performance Series rear shock (985-24-196)

Product Description

The Fox 985-24-196 2.0 Performance Series rear shock is engineered to enhance rear suspension performance on lifted Toyota Tacoma trucks from 2005 through 2021 with approximately 4-6" of lift. Featuring a smooth-body mono-tube design with an Internal Floating Piston (IFP), this shock keeps high-pressure nitrogen gas separate from the shock oil to reduce aeration and deliver consistent damping performance on varied terrain. The race-developed high-flow piston and vehicle-specific valving provide predictable rebound control and improved ride quality whether on-road or off-road.

Constructed with a rugged 2.0" impact-extruded 6061-T6 aluminum body and clear-anodized finish, the 985-24-196 resists corrosion and dissipates heat efficiently for long service life. Its durable shaft and redundant seal pack system enhance reliability under heavy loads and rough terrain, while quiet nitrile rubber bushings help reduce noise and support articulation. Sold individually as a direct-fit replacement or performance upgrade, this shock is ideal for Tacoma owners seeking improved rear suspension control and response in lifted applications.
