FOX 985-24-163 2.0 Perf. Front Shock w/Reservoir 4-5" Lift for 17-25 F250/F350

Vehicle Fitment

• 2017-2025 Ford F-250 Super Duty 4WD -- 4" to 5" Lift
• 2017-2025 Ford F-350 Super Duty 4WD -- 4" to 5" Lift
• 2017-2019 Ford F-450 Super Duty Cab & Chassis 2WD/4WD -- 4" to 5" Lift
• 2017-2019 Ford F-550 Super Duty Cab & Chassis 2WD/4WD -- 4" to 5" Lift

Fitment Notes

• Front position only
• 4WD models only for F-250 and F-350 pickup applications
• Designed for vehicles with 4" to 5" suspension lift
• Lift height is manufacturer-suggested -- measure for proper application
• Direct bolt-on replacement -- reuses factory shock mounting bolts
• Does NOT fit stock-height vehicles
• Shock boots, roost shields, and mounting plates sold separately
• Sold individually -- order 2 for a complete front pair

Features

• 2.0" smooth body with external reservoir design
• Impact-extruded 6061-T6 aluminum body resists rust and corrosion
• External reservoir increases oil and nitrogen capacity
• Heat-reducing aluminum body dissipates heat faster than steel
• Race-developed high-flow damping piston
• Application-specific valving for Ford Super Duty
• Internal floating piston separates oil from nitrogen gas
• Redundant sealing pack -- main seal, wiper seal, scraper seal
• JM92 Advanced Suspension Fluid for consistent performance
• Quiet nitrile rubber bushings for increased articulation
• CNC-machined billet aluminum reservoir clamp included

Specifications

• Part Number: 985-24-163
• Brand: FOX
• Product Line: 2.0 Performance Series Reservoir Smooth Body
• Type: Monotube Shock Absorber
• Position: Front
• Body Diameter: 2.0"
• Body Material: 6061-T6 Aluminum, Clear Anodized
• Reservoir: 2.0" Smooth Bore 6061-T6 Aluminum, Hard Anodized
• Shaft: Hard-Chrome Plated Heat-Treated Alloy Steel
• Fluid: JM92 Advanced Suspension Fluid
• Lift Range: 4" to 5"
• Shipping Weight: 8.0 lbs

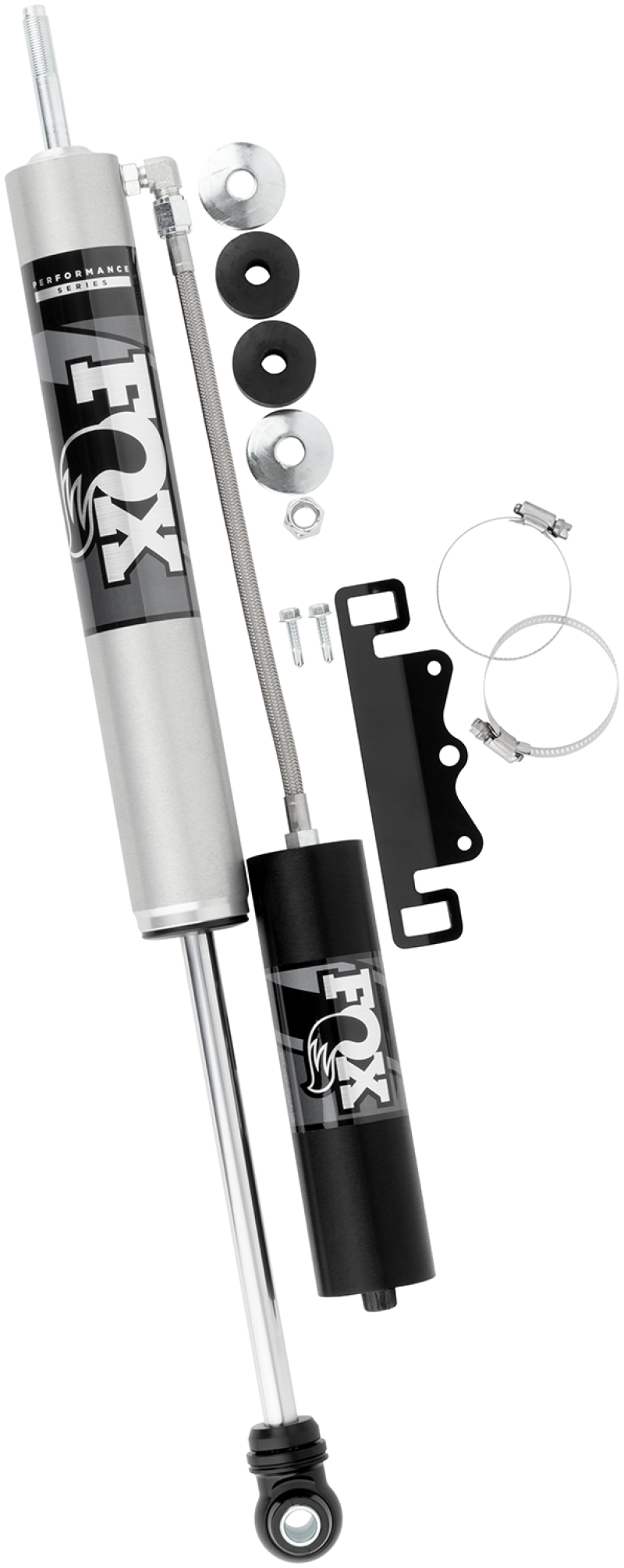

Included Components

• FOX 2.0 Performance Series front reservoir shock (1)
• Black anodized billet aluminum reservoir clamp
• Mounting bushings, washers, and nuts

Product Description

The FOX 985-24-163 is a 2.0 Performance Series smooth body front shock with external reservoir for 2017-2025 Ford F-250 and F-350 Super Duty 4WD trucks equipped with a 4" to 5" suspension lift. Also fits 2017-2019 F-450 and F-550 Super Duty Cab & Chassis models. The one-piece impact-extruded 6061-T6 aluminum body with clear anodized finish dissipates heat faster than conventional steel while resisting rust and corrosion. The external hard-anodized aluminum reservoir increases oil and nitrogen capacity for consistent damping performance under demanding conditions. Inside, a race-developed high-flow piston paired with Ford Super Duty application-specific valving delivers predictable ride quality across all terrain -- from daily highway driving to aggressive off-road use. The internal floating piston separates shock oil from high-pressure nitrogen gas, eliminating oil aeration for maximum performance. JM92 Advanced Suspension Fluid maintains consistent operation across a wide temperature range. A redundant triple-seal system prevents leaks and contamination. Nitrile rubber bushings allow increased suspension articulation while minimizing noise. Installs as a direct bolt-on using factory mounting points -- no modifications required. Sold individually. Backed by FOX's 1-year limited warranty.
