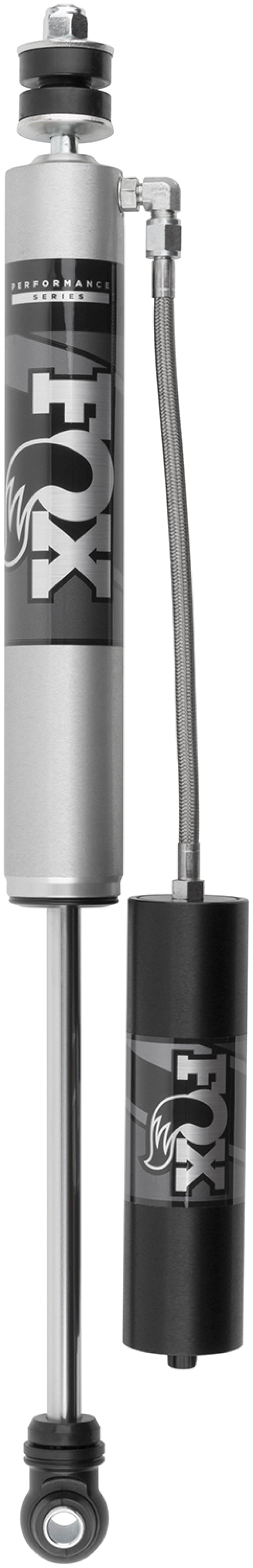

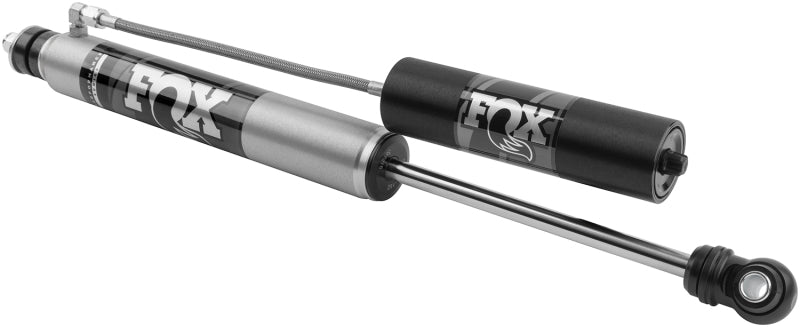

FOX 985-24-162 Front Resi Shock for 17-24 Ford F-250/F-350 4WD 2-3.5in

Vehicle Fitment

• 2017-2024 Ford F-250 Super Duty (4WD, front, 2-3.5in lift)
• 2017-2024 Ford F-350 Super Duty (4WD, front, 2-3.5in lift)
• Front application only
• Drive type: 4WD only
• Fitment confirmed through 2024. 2025 coverage unconfirmed at time of listing.

Features

• FOX 2.0 Performance Series smooth body reservoir shock
• External reservoir increases oil and nitrogen capacity for improved heat management
• Vehicle-specific tuning for 2017+ Ford Super Duty front suspension
• Monotube design supports consistent damping on-road and off-road
• 2.0in impact-extruded 6061-T6 aluminum body helps dissipate heat faster than steel-body shocks
• Clear-anodized body resists corrosion
• Race-developed high-flow piston design
• Application-specific valving maximizes ride control and comfort
• Designed for leveled and mildly lifted front suspension systems
• Sold individually for left or right front installation

Specifications

• Position: Front
• Shock type: 2.0 Performance Series reservoir smooth body shock
• Body diameter: 2.0in
• Reservoir type: External reservoir
• Travel: 9.25in
• Front lift compatibility: 2-3.5in
• Extended length: 24.35in
• Collapsed length: 14.70in
• Shaft diameter: 5/8in

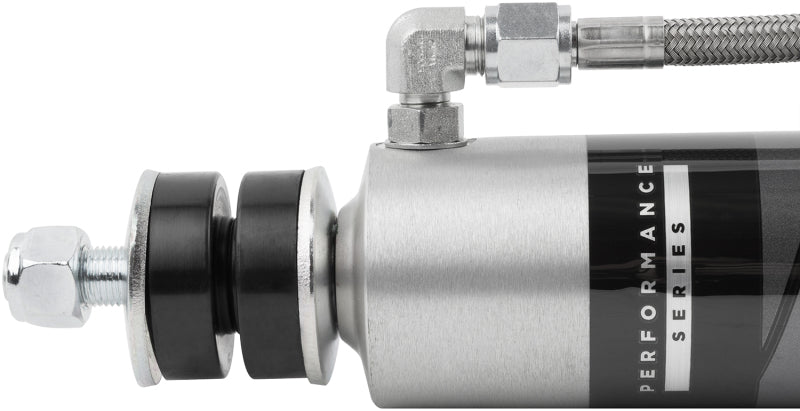

• Upper mount: Eyelet

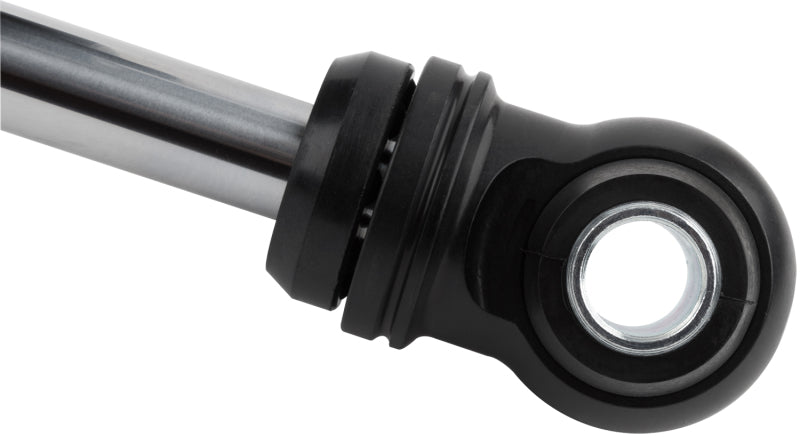

• Lower mount: Eyelet
• Quantity: 1x shock sold individually

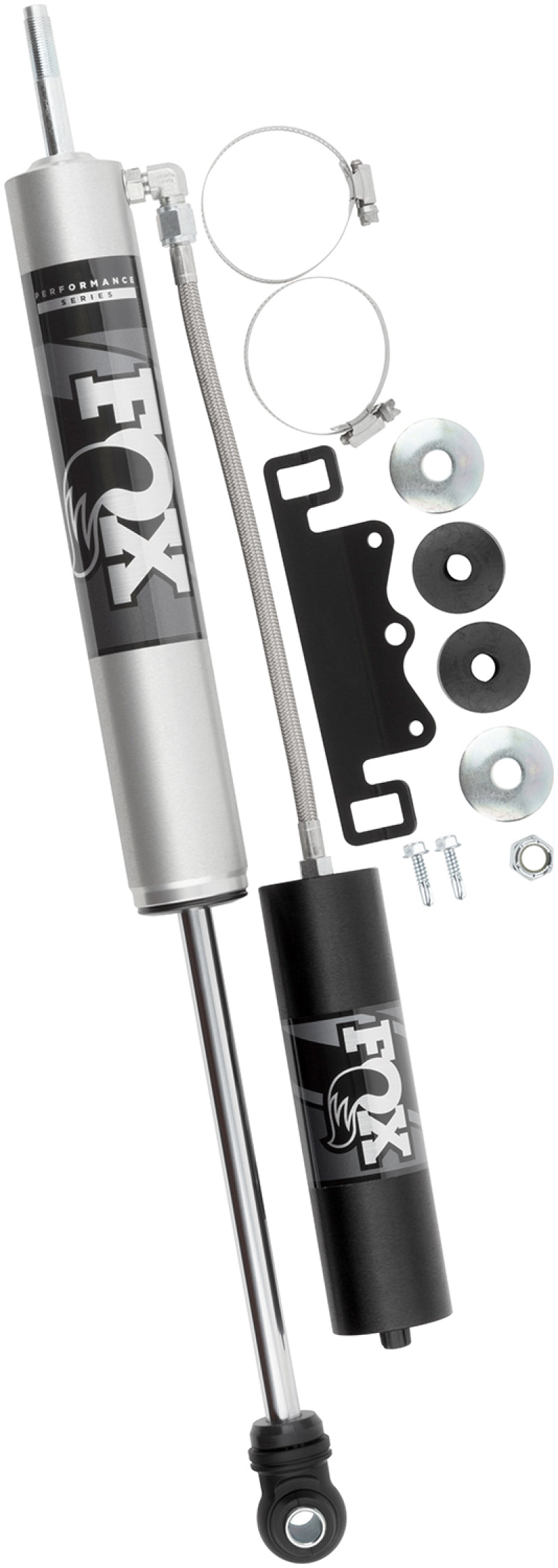

Included Components

• 1x Front reservoir shock
• 1x Reservoir assembly
• 1x Mounting hardware pack

Product Description

The FOX 985-24-162 is a 2.0 Performance Series front smooth body reservoir shock for 2017-2024 Ford F-250 and F-350 Super Duty 4WD trucks. It is designed for owners who want improved front-end damping control, better heat management, and more consistent ride quality than standard replacement shocks can provide, especially on trucks used for towing, hauling, rough-road driving, and off-road travel. The external reservoir increases oil and nitrogen capacity to help maintain damping consistency during repeated suspension cycling.

Verified FOX catalog data confirms front fitment for 2017-2024 Ford F-250 Super Duty 4WD and 2017-2024 Ford F-350 Super Duty 4WD with 2 to 3.5 inches of front lift. The stated lift amount applies to the front only; rear lift is not provided by this part number. Confirmed technical specs include 9.25 inches of travel, 24.35-inch extended length, 14.70-inch collapsed length, a 2.0-inch aluminum body, 5/8-inch shaft, and eyelet/eyelet mounting.

This part is sold individually, so 2x shocks are typically required for a complete front axle installation. I did not extend fitment to F-450 or F-550 because the trusted sources used in this validation pass consistently identified F-250 and F-350 coverage, but did not provide the same level of consistent confirmation for those heavier Super Duty models on this exact part number.
