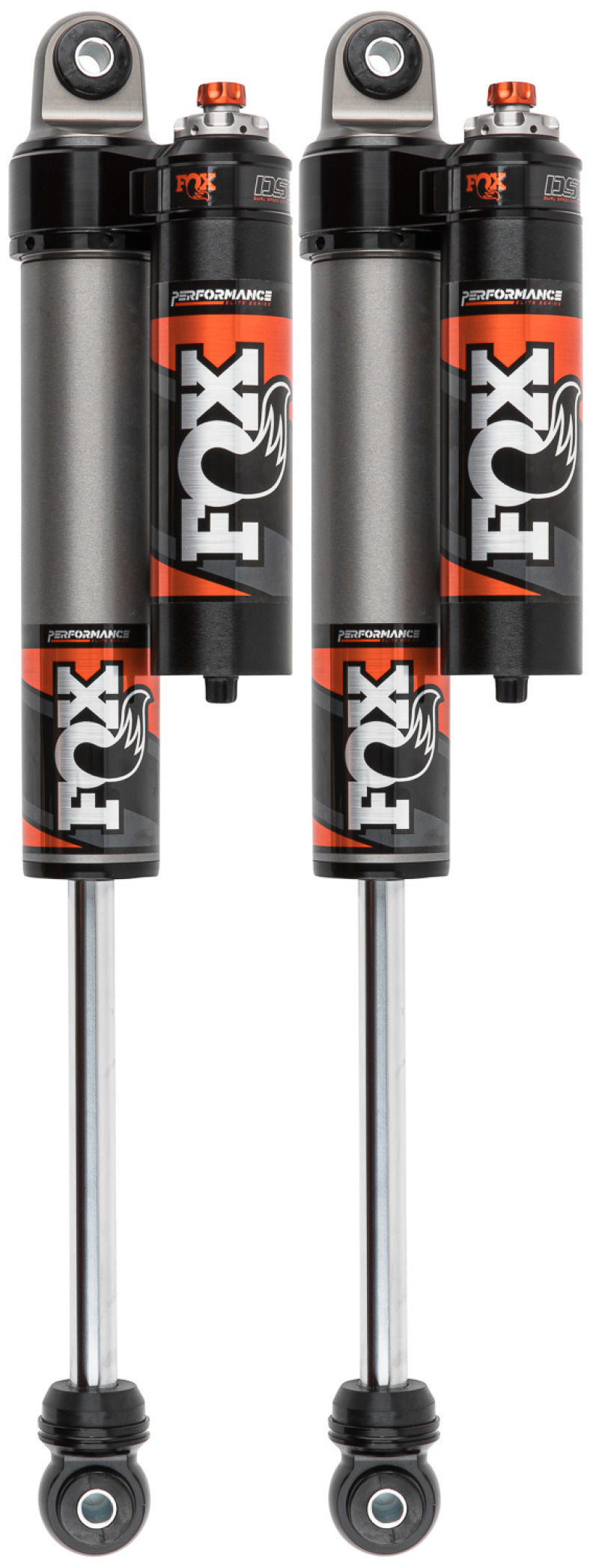

FOX 883-26-074 Performance Elite 2.5 Rear Shocks for 2020-25 Jeep Gladiator

Vehicle Fitment

• 2020-2025 Jeep Gladiator JT (Rear, 2-3" Lift, All Trims, 3.6L / 3.0L)

Features

• 2.5" diameter Performance Elite Series reservoir shocks
• Dual Speed Compression (DSC) adjustable valving
• External piggyback reservoir for increased oil/nitrogen capacity
• CNC-machined 6061-T6 hard-anodized aluminum body
• 7/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific tuning for improved control
• Redundant seal pack system for long life

Specifications

• Part Number: 883-26-074
• Position: Rear shocks (pair)
• Compatible Lift: 2-3" rear lift applications
• Extended Length: ~28.32"
• Compressed Length: ~17.35"
• Stroke: ~10.97"
• Body Diameter: 2.5"

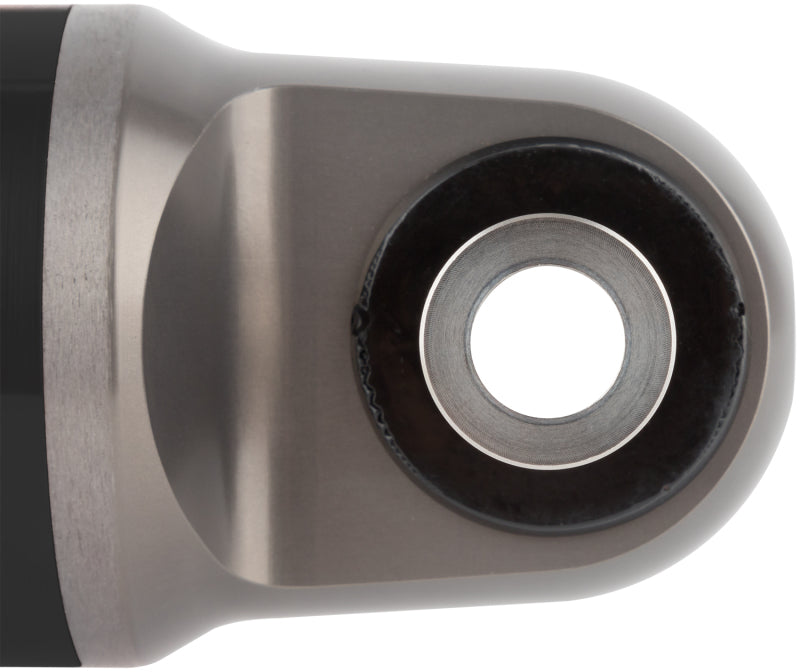

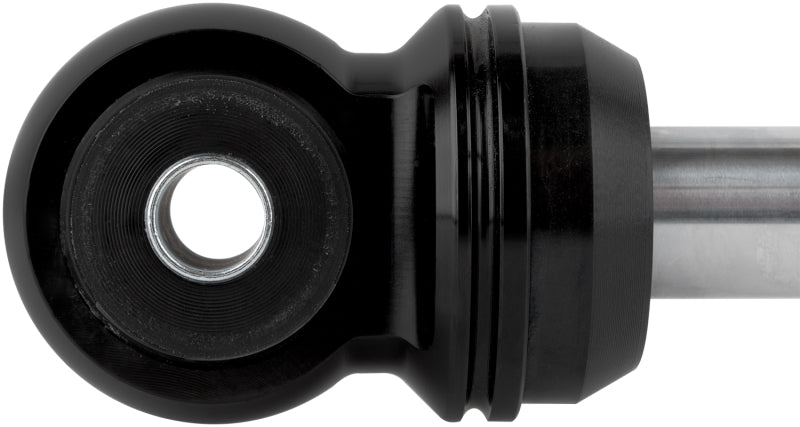

• Mounting: Eyelet top/bottom

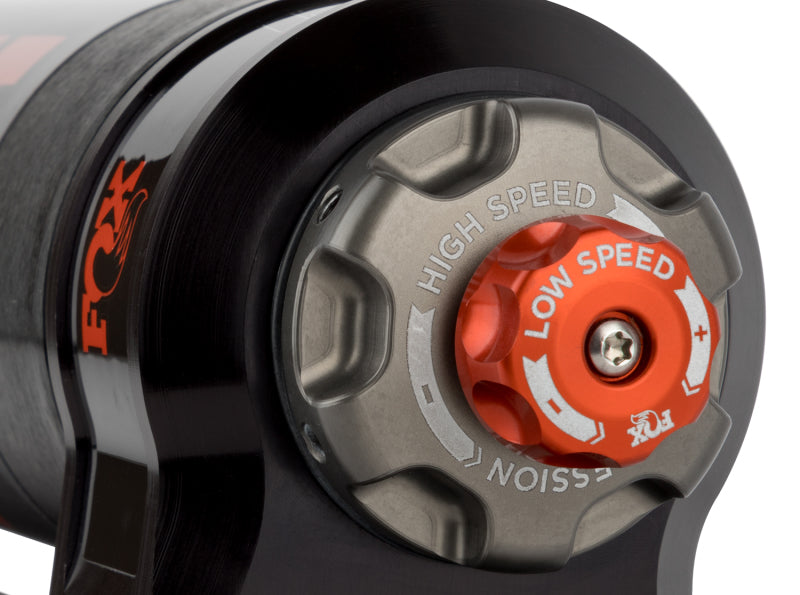

• Adjustability: DSC dual speed compression
• Reservoir Type: External piggyback

Included Components

• 2x Rear Performance Elite 2.5 Adjustable Reservoir Shocks (883-26-074)

Product Description

The FOX 883-26-074 Performance Elite Series 2.5 Rear Adjustable Reservoir Shocks are engineered specifically for lifted Jeep Gladiator JT trucks with 2-3" rear lift. Built from race-inspired materials and technology, these shocks deliver smoother ride quality, enhanced damping control, and superior performance both on paved roads and off-road terrain. The large external reservoir increases oil and nitrogen capacity, helping maintain consistent damping over extended use, especially in rugged conditions.

Adjustability comes via FOX's Dual Speed Compression (DSC) system, letting you fine-tune compression settings to match load, terrain, or driving style. The CNC-machined aluminum body with a hard-anodized finish resists corrosion while aiding heat dissipation, and the durable piston and shaft design ensure long service life. These shocks are ideal for Gladiator owners looking to upgrade their rear suspension for improved off-road handling, stability with cargo or accessories, and overall ride comfort.
