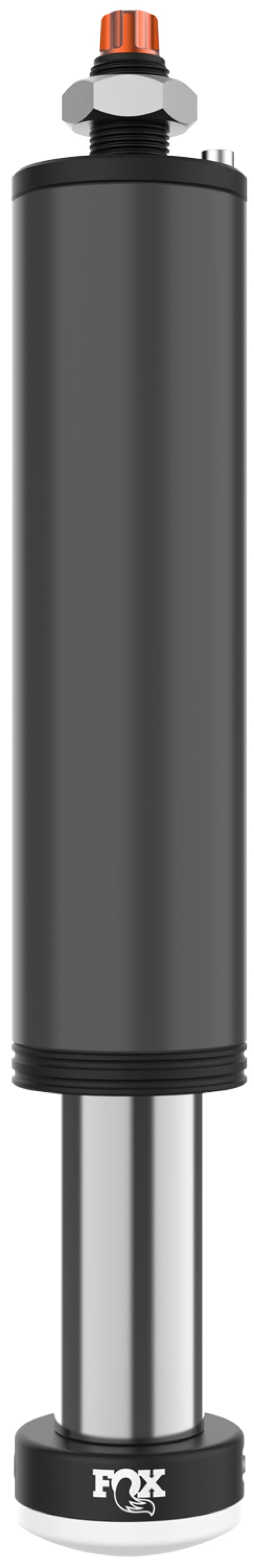

FOX 981-25-040 2.5 Factory Race 2.5" Stem-Mount Bump Stop (Universal)

Vehicle Fitment

• Universal off-road bump stop - requires vehicle-specific or custom mount
• Designed for use in high-travel off-road suspension systems

Features

• Factory Race Series 2.5" diameter hydraulic bump stop body

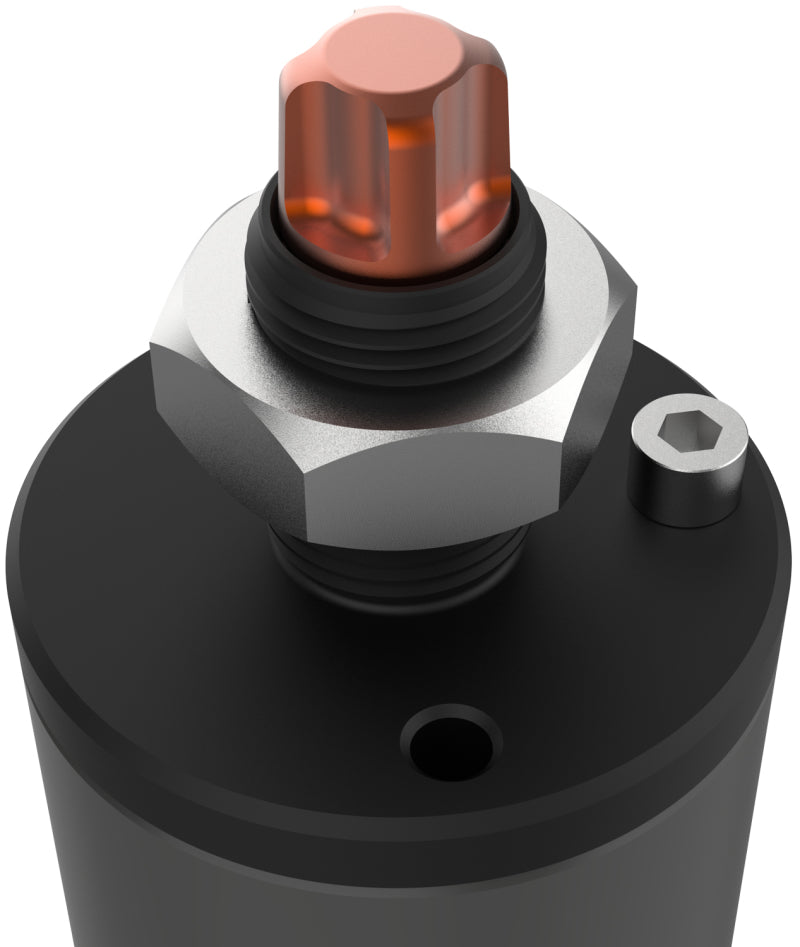

• FOX Air Valve (FAV) allows precise nitrogen pressure tuning
• Proprietary Cerakote® ceramic coating over zinc base for corrosion protection
• Hard chrome plated 4130 chromoly steel shaft for strength
• Owner serviceable and rebuildable design
• High-temperature JM92 MIL-SPEC oil for consistent damping
• Black anodized CNC-machined aluminum components
• Replaceable strike pad for quieter engagement and long life

Specifications

• Part Number: 981-25-040
• Series: FOX Factory Race
• Type: Hydraulic bump stop
• Body Diameter: 2.5"
• Travel: 2.45" (approx)
• Extended Length: ~10.80"
• Compressed Length: ~8.35"
• Top Mount: Stem
• Bottom Mount: None (mounting bracket required)
• Shaft: Chromoly steel (approx 1.625" diameter)

Included Components

• 1x FOX Factory Race 2.5" stem-mount hydraulic bump stop (981-25-040)
• Pre-installed replaceable Delrin® strike pad

Product Description

The FOX 981-25-040 Factory Race Series 2.5" bump stop is a premium off-road suspension accessory designed to improve bottom-out control and extend usable travel on high-performance vehicles. Its hydraulic design harnesses race-proven damping technology and a FOX Air Valve (FAV) for fine-tuned nitrogen charge adjustments so you can dial in suspension feel and bottoming resistance specific to your setup.

Constructed with a robust chromoly steel shaft, CNC-machined aluminum parts, and a proprietary Cerakote® finish for corrosion resistance, this Factory Race bump stop is both serviceable and rebuildable for long-term use. The stem-mount top allows flexible integration into custom or vehicle-specific brackets (not included), making it ideal for lifted trucks, desert buggies, rock crawlers, and other off-road builds where maximizing suspension travel and minimizing harsh bottom-outs are priorities. The replaceable strike pad improves quiet engagement and adds durability for repeated use in rugged terrain.
