FOX 985-24-056 2.0 Performance Series 8.1" Stem/Eyelet Remote Reservoir Shock

Vehicle Fitment

• Universal -- fits any application requiring a 2.0" stem/eyelet remote reservoir shock with 8.1" travel and 21.3" extended / 13.2" collapsed length

Fitment Notes

• Universal fit -- builder must verify travel, extended, and collapsed length against specific application requirements
• Top mount: Stem -- requires stem-compatible upper mount
• Mounting bolt: 1/2" x 1.480"
• Reservoir hose: -5 x 12.0"
• Replaces FOX PN 980-24-635
• Sold individually -- order 2 for a complete axle set

Features

• 2.0" remote reservoir -- increased oil and nitrogen capacity for improved heat dissipation and fade resistance
• IFP (Internal Floating Piston) -- separates oil from high-pressure nitrogen gas for consistent damping
• 2.0" impact-extruded 6061-T6 aluminum body -- dissipates heat faster than steel
• 5/8" hard chrome-plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving
• Redundant sealing pack -- main seal, wiper seal, scraper seal
• Black-anodized CNC-machined 6061-T6 billet aluminum components
• Teflon-lined heat-treated spherical bearings
• Quiet nitrile rubber bushings -- increased suspension articulation
• Billet reservoir clamp included
• 100% rebuildable and serviceable
• Made in USA

Specifications

• Part Number: 985-24-056
• Series: 2.0 Performance Series
• Body diameter: 2.0"
• Travel: 8.1"
• Extended length: 21.3"
• Collapsed length: 13.2"
• Top mount: Stem
• Bottom mount: Eyelet (ES3 -- PN 213-27-002-B)
• Mounting bolt: 1/2" x 1.480"
• Reservoir hose: -5 x 12.0"
• Body material: 6061-T6 clear-anodized aluminum
• Shaft: 5/8" chrome-plated alloy steel
• Reservoir: 2.0" hard-anodized 6061-T6 aluminum
• Replaces: FOX 980-24-635
• Quantity: Sold individually
• Warranty: 1 year limited

Included Components

• 1x FOX 2.0 Performance Series remote reservoir shock
• 1x Billet reservoir clamp

Product Description

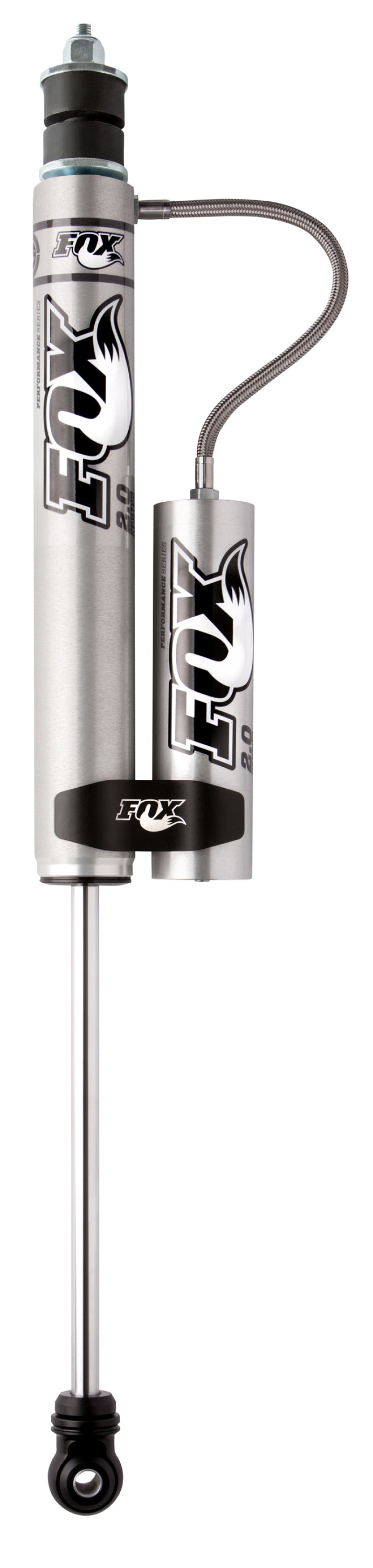

The FOX 985-24-056 is a 2.0 Performance Series remote reservoir shock with stem top mount and eyelet bottom mount, delivering 8.1" of travel with a 21.3" extended and 13.2" collapsed length. It is a universal application shock -- fitment is determined by the builder based on travel, mounting dimensions, and application requirements rather than a specific vehicle application. It replaces the prior FOX PN 980-24-635.

The 2.0" smooth-body design pairs with a remote reservoir connected via a -5 x 12.0" hose, increasing oil and nitrogen volume for improved heat dissipation and consistent damping under sustained use. An Internal Floating Piston (IFP) separates the oil charge from high-pressure nitrogen, maintaining stable damping throughout the stroke. The impact-extruded 6061-T6 aluminum body dissipates heat faster than steel. A race-developed high-flow piston, redundant triple-sealing pack, and Teflon-lined spherical bearings deliver the durability and performance of FOX's race program in a street and trail-capable package. The bottom eyelet mount (ES3, PN 213-27-002-B) is sold separately. Billet reservoir clamp included. Fully rebuildable and serviceable. Made in the USA. Backed by FOX's 1-year limited warranty.
