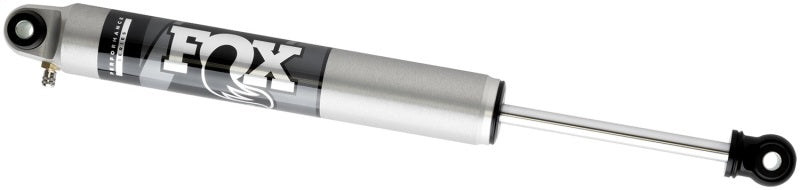

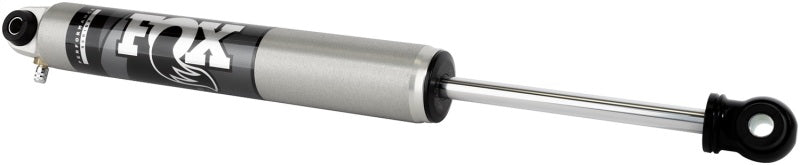

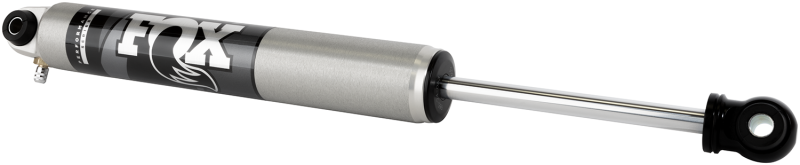

FOX 985-24-063 Perf. Series 2.0 IFP Steering Stabilizer 8" Travel -Universal

Vehicle Fitment

• Universal Fitment - Steering Stabilizer

Fitment Notes

• Universal steering stabilizer - NOT vehicle-specific application
• Eyelet-to-eyelet mounting configuration (both ends)
• Eyelet bore diameter: 0.625" (5/8")
• Extended length: 24.02" - Compressed length: 15.90"
• Verify existing steering stabilizer dimensions before ordering
• Compatible with trucks and SUVs equipped with factory or aftermarket steering stabilizer mounts
• May require aftermarket mounting bracket kit for vehicles without factory stabilizer

Features

• 2.0" impact extruded and CNC machined 6061-T6 aluminum one-piece body resists rust and corrosion
• Internal Floating Piston (IFP) mono-tube design separates shock oil from high-pressure nitrogen gas
• Race-developed high-flow piston with application-specific valving for predictable damping
• Eliminates oil aeration for maximum performance from precision valving
• Tames steering feedback from oversized off-road tires
• Reduces front-end wander caused by aggressive tread patterns
• Black-anodized CNC-machined 6061-T6 billet aluminum components
• Redundant sealing system: main seal, wiper seal, and scraper seal for long-lasting performance
• 100% serviceable and tunable for extended lifespan

Specifications

• Part Number: 985-24-063
• Series: Performance Series 2.0
• Type: Steering Stabilizer
• Reservoir Type: Internal Floating Piston (IFP)
• Body Diameter: 2.0" (50.8mm)
• Travel: 8.12"
• Extended Length: 24.02"
• Compressed Length: 15.90"

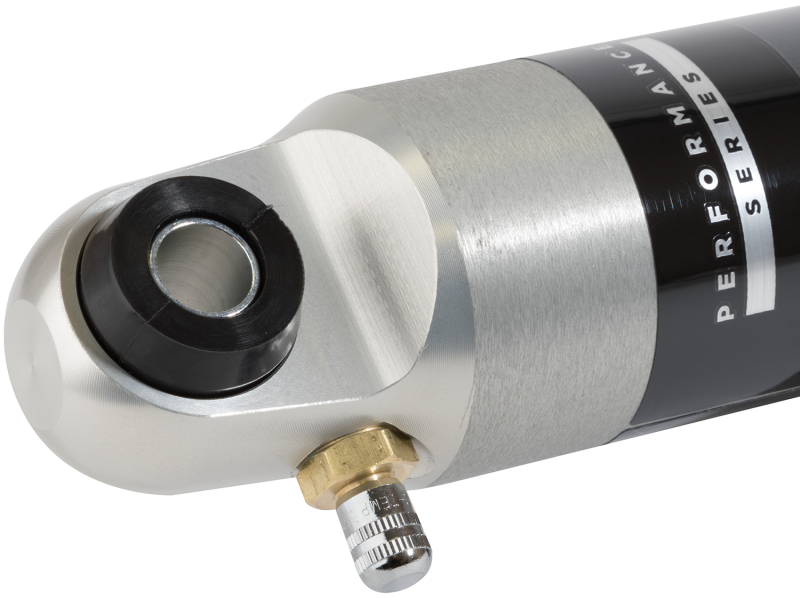

• Top Mount: Eyelet (0.625" Bore)
• Bottom Mount: Eyelet (0.625" Bore)
• Shaft Diameter: 1/2" Hard Chrome Plated
• Body Material: 6061-T6 Aluminum
• Body Finish: Clear Anodized
• Component Finish: Black Anodized
• Bushings: Nitrile Rubber
• Warranty: 1 Year Limited

Included Components

• FOX Performance Series 2.0 IFP Steering Stabilizer

Product Description

The FOX 985-24-063 Performance Series 2.0 IFP Steering Stabilizer delivers race-proven damping technology to reduce steering feedback and front-end wander on trucks and SUVs. Oversized off-road tires with aggressive tread patterns can cause your steering to hunt for traction, creating unpredictable handling both on and off the road. This stabilizer uses the same advanced Internal Floating Piston technology found in FOX Performance Series shocks to provide smooth, controlled steering response even with the most aggressive tire setups. The 2.0" aluminum body dissipates heat faster than steel while resisting rust and corrosion, and the race-developed high-flow piston paired with precision valving delivers consistent damping performance in demanding conditions. This universal stabilizer features eyelet mounting on both ends with 0.625" bore diameter and measures 24.02" extended by 15.90" compressed with 8.12" of travel - verify your existing stabilizer dimensions for proper fit.
