FOX 883-06-165 2.5 Elite Front Coil-Over Shocks w/Res, 2" Lift 19-25 Ram 1500

Vehicle Fitment

• 2019-2025 Ram 1500
  (Does not fit Classic, TRX, and Air Ride models; 2WD/4WD)

Features

• 2" front lift with integrated coil-over spring

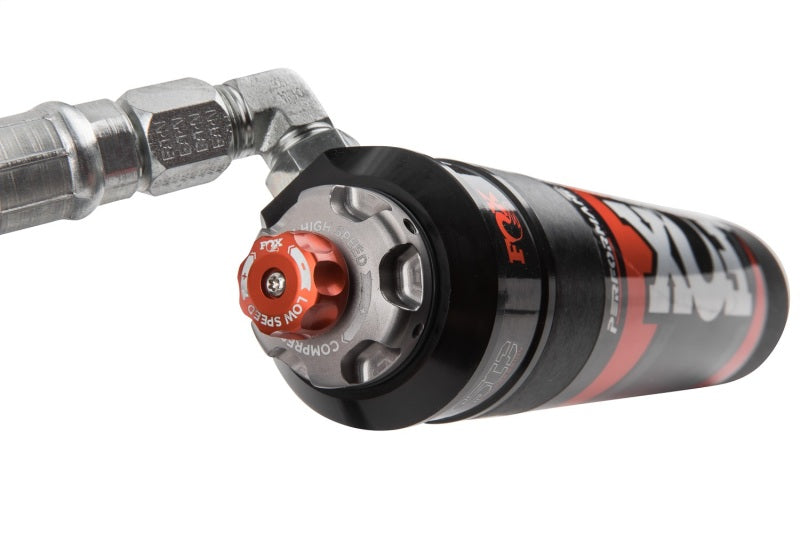

• Dual-Speed Compression (DSC) adjusters with high (12) and low (10) speed settings
• Oversized 2.5" CNC-machined 6061-T6 aluminum body and reservoir for heat dissipation
• Black-anodized billet aluminum components
• 7/8" hard-chrome plated steel shafts with redundant sealing system
• 6061-T6 high-flow piston with application-specific valving
• PTFE-lined, heat-treated spherical bearings
• Preload-adjustable coil spring for ride-height tuning

Specifications

• Part Number: 883-06-165
• Lift Height: 2" front
• Travel: ~5.49"
• Compressed Length: ~16.83"; Extended: ~22.32"
• Reservoir: Remote external, 2.5" honed alloy

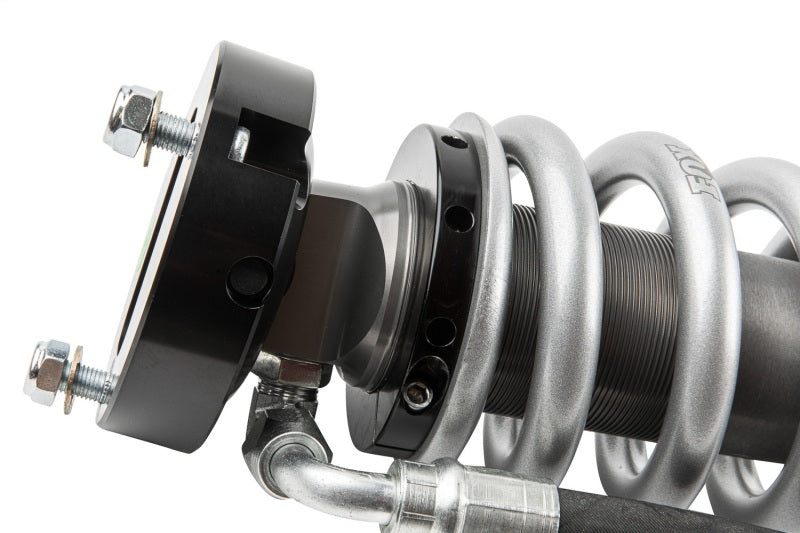

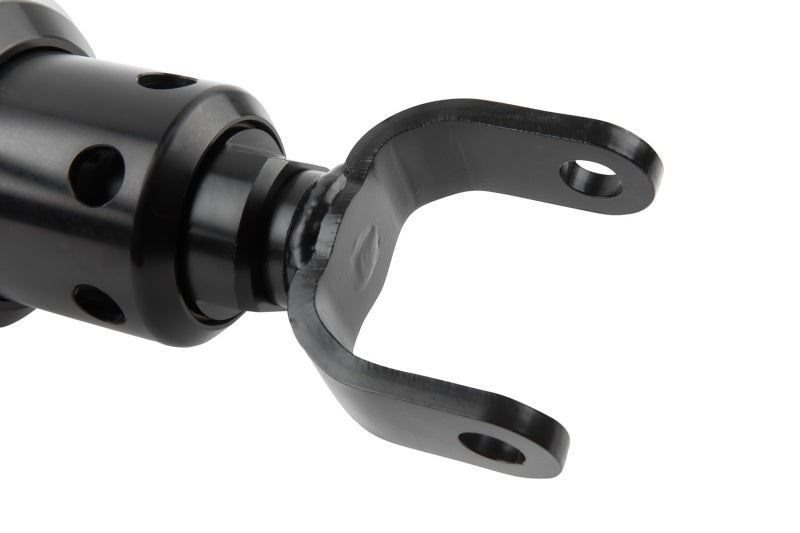

• Top Mount: OEM; Bottom Mount: Clevis
• Weight: Approx. 60 lb pair
• Warranty: 1-year limited; Prop 65 compliant

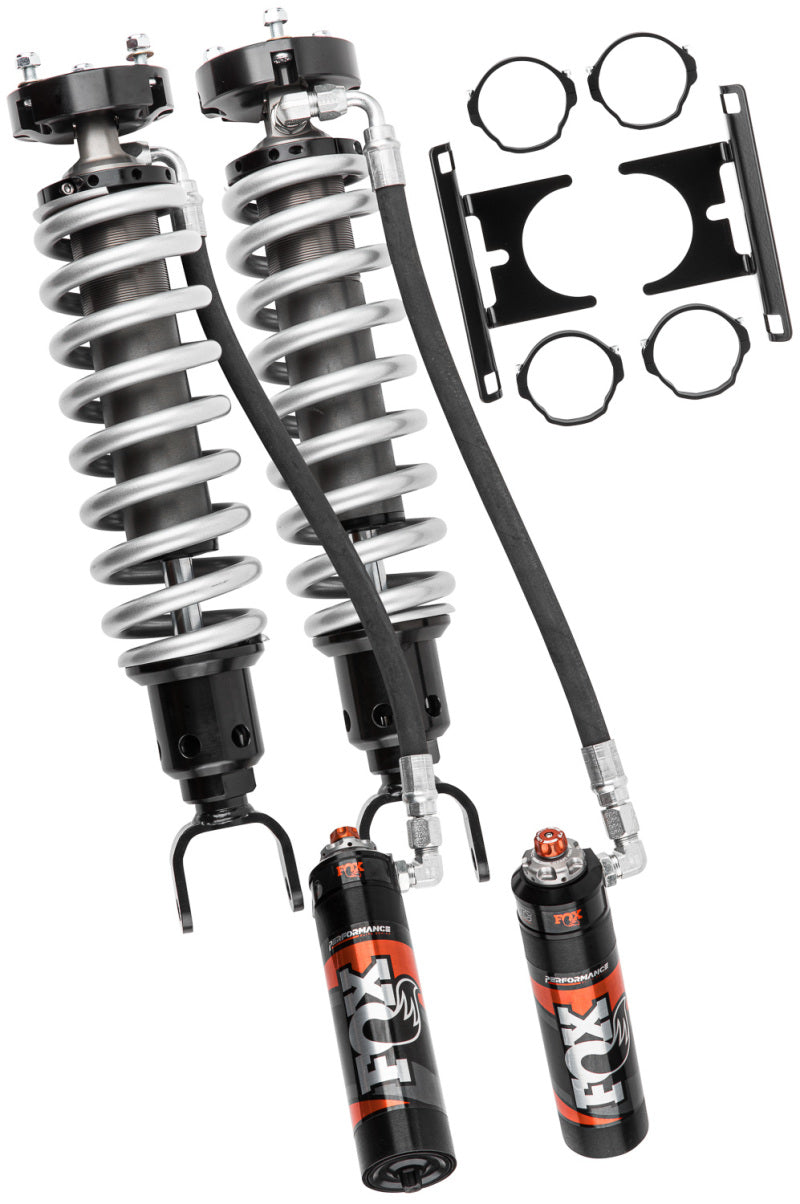

Included Components

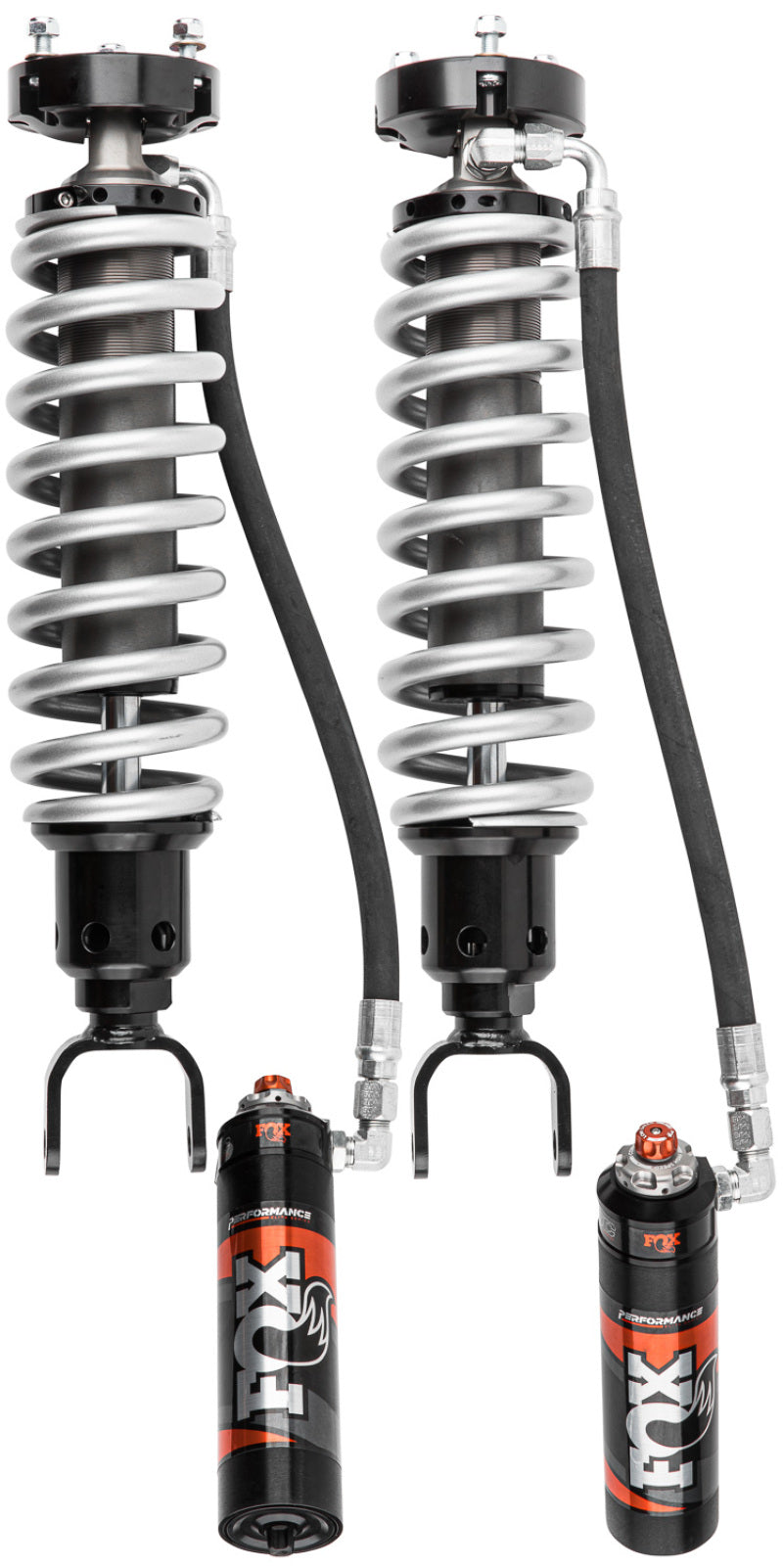

• 2x front coil-over assemblies w/ springs
• Reservoir hoses and mounting clamps
• Compression adjuster tool
• All required mounting hardware
• Installation instructions

Product Description

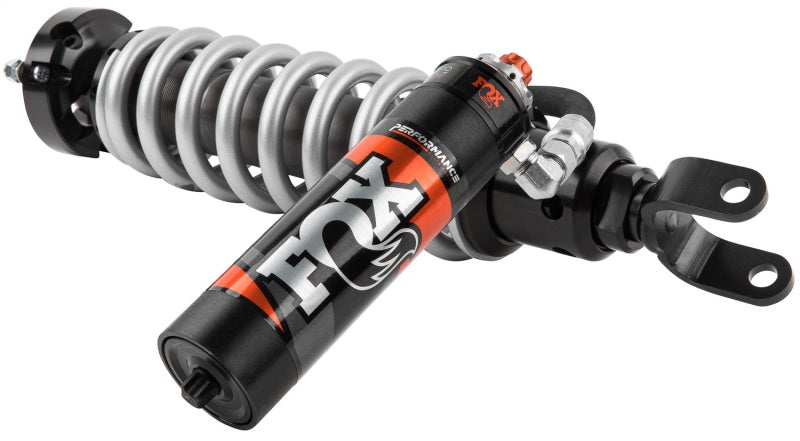

The FOX Performance Elite 2.5" coil-over system, Part 883-06-165, is designed specifically for 2019-2025 Ram 1500 trucks with factory suspension (excluding Classic, TRX, and Air Ride). With a precise 2" front lift, threaded body, and preload-adjustable spring, this bolt-on solution levels your stance while improving upward wheel travel and ride quality.

Featuring race-proven DSC adjusters (10 low-speed + 12 high-speed), redundant seals, hardened shafts, and CNC-machined aluminum construction, these shocks deliver consistent damping performance under extreme conditions. Backed by FOX's 1-year warranty and high-quality U.S. manufacturing, they are a premium, user-tunable upgrade ideal for daily driving, towing, and off-road use.
