FOX 803-35-008 Billet Upper Control Arms Black for 19-25 Silverado/Sierra 1500

Vehicle Fitment

• 2019-2025 Chevrolet Silverado 1500 (All Drive Types)
• 2022 Chevrolet Silverado 1500 LTD (All Drive Types)
• 2019-2025 GMC Sierra 1500 (All Drive Types)
• 2022 GMC Sierra 1500 Limited (All Drive Types)

Fitment Notes

• Front upper position only -- sold as a pair (left and right)
• Excludes models equipped with Adaptive Ride Control (ARC)
• Fits 2WD and 4WD configurations
• OE tires and wheels may contact the billet UCA at full suspension travel
• Bolt-on installation -- no drilling, cutting, or chassis modification required
• Professional alignment recommended after installation
• Orange finish version: FOX 803-35-009

Features

• CNC-machined 6061-T6 billet aluminum construction
• Type II anodized black finish with laser-etched FOX logos
• 1.25" hard chrome-plated uniballs with low carbon steel race
• PTFE-lined uniballs reduce noise for comfortable on-road driving
• 3/4" chromoly heim joints with Kevlar fiber-reinforced PTFE liner
• Fully adjustable heim joints for fine-tuning caster and camber
• Stainless steel taper misalignment spacers at steering knuckle
• 12-point bolts at the steering knuckle for precise fitment
• Optimized geometry corrects alignment on lifted trucks
• Maximizes droop travel for increased off-road articulation
• Added caster reduces high-speed steering wander

Specifications

• Part number: FOX 803-35-008
• Product type: Upper control arm kit (UCA)
• Position: Front upper
• Material: 6061-T6 billet aluminum
• Finish: Type II anodized black
• Uniball size: 1.25" hard chrome plated
• Heim joint size: 3/4" chromoly
• Heim joint liner: Kevlar fiber-reinforced PTFE
• Misalignment spacers: Stainless steel taper
• Knuckle hardware: 12-point bolts
• Quantity: Pair (left and right)
• Made in USA

Included Components

• FOX billet aluminum upper control arms (2)
• 1.25" hard chrome-plated uniballs (pre-installed)
• 3/4" chromoly heim joints (pre-installed)
• Stainless steel taper misalignment spacers
• 12-point mounting bolts
• Installation hardware
• Installation instructions

Product Description

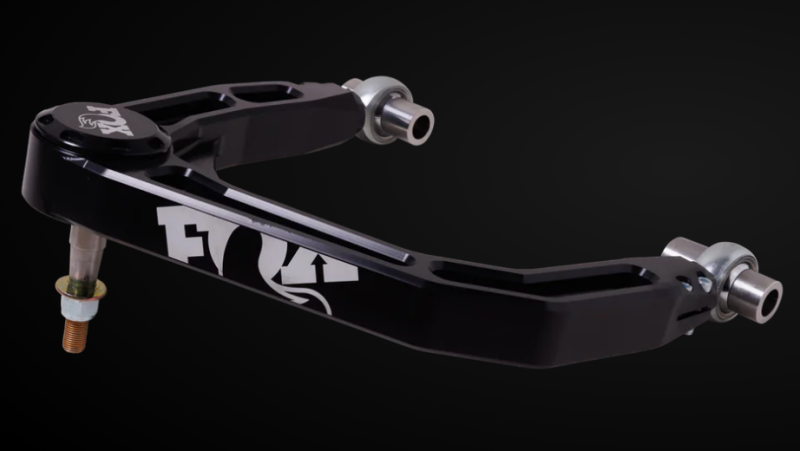

The FOX 803-35-008 is a pair of CNC-machined billet aluminum upper control arms designed for 2019-2025 Chevrolet Silverado 1500 and GMC Sierra 1500 trucks without Adaptive Ride Control. Upgrading the UCAs is the first step in building a mid-travel suspension system, unlocking off-road capability through rough and technical terrain. FOX engineers optimized the suspension geometry specifically for the T1XX platform, providing the alignment correction needed when lifting the truck while maximizing droop travel for greater articulation off-road. The added caster built into the design reduces steering wander at highway speeds, delivering more confident handling both on and off the trail.

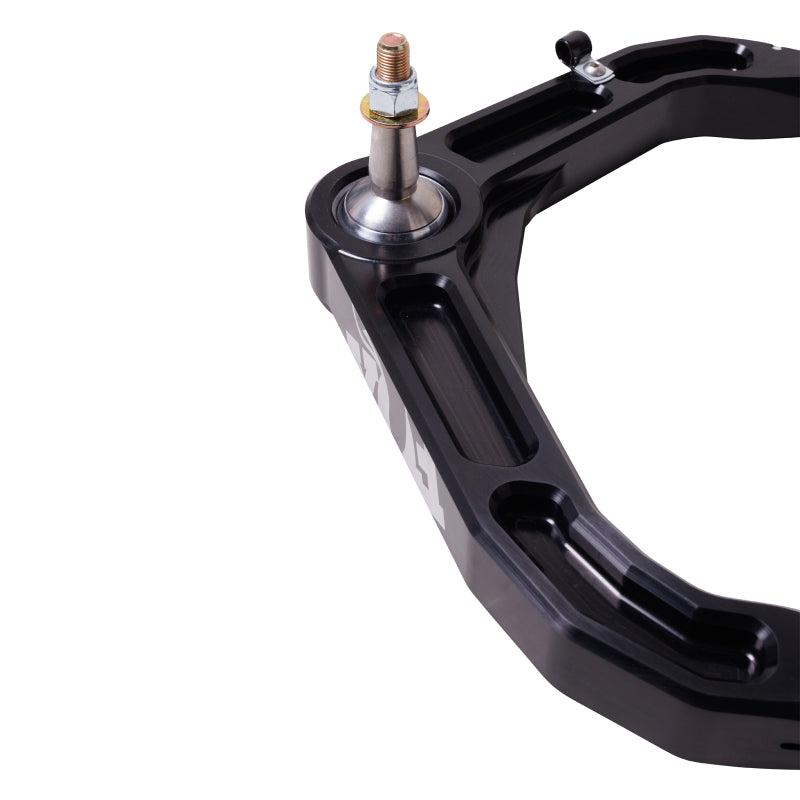

Each arm is machined from 6061-T6 billet aluminum with a Type II anodized black finish and laser-etched FOX branding. The 1.25" hard chrome-plated uniballs feature a low carbon steel race and PTFE liner to minimize noise, while the 3/4" chromoly heim joints use a Kevlar fiber-reinforced PTFE liner for bind-free operation and long-lasting precision. Fully adjustable heim joints allow fine-tuning of caster and camber for dialed-in alignment. Stainless steel taper misalignment spacers and 12-point bolts at the steering knuckle ensure a reliable and precise connection. Direct bolt-on installation requires no drilling or cutting. Also available with an orange finish as FOX 803-35-009. CNC machined in the USA.
