FOX 883-26-078 3.0 Factory Race Rear Bypass Shocks for 2018-25 Jeep Wrangler

Vehicle Fitment

• 2018-2025 Jeep Wrangler JL (Rear, 4WD, 3.5-4.5" Lift, All Trims, 2.0L / 3.6L / 3.0L / 6.4L)

Features

• Factory Race Series 3.0 internal bypass shocks
• Position-sensitive internal bypass damping technology
• Dual Speed Compression (DSC) adjusters for high & low speed tuning
• CNC-machined 3.0" aluminum body with hard-anodized finish
• Aluminum finned remote reservoir for enhanced heat dissipation
• High-flow race-developed piston design
• PTFE-lined spherical bearings for smooth operation
• Redundant seal pack system for leak resistance

Specifications

• Part Number: 883-26-078
• Position: Rear shocks (pair)
• Compatible Lift: 3.5-4.5" aftermarket suspension
• Extended Length: 29.78"
• Compressed Length: 18.93"
• Shock Travel: ~10.85"
• Body Diameter: 3.0"
• Mounting: Eyelet top and bottom
• Reservoir: Piggyback internal bypass reservoir
• Adjustability: DSC dual speed compression

Included Components

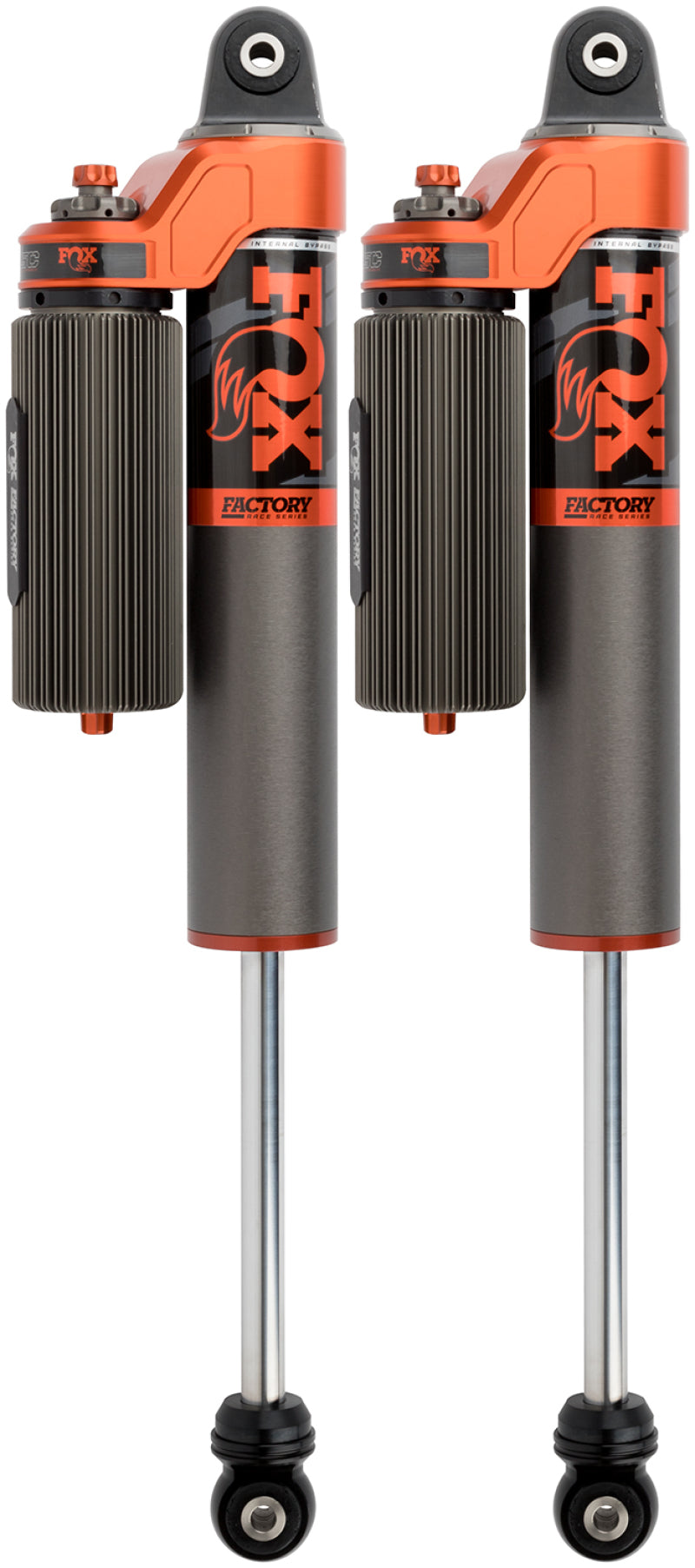

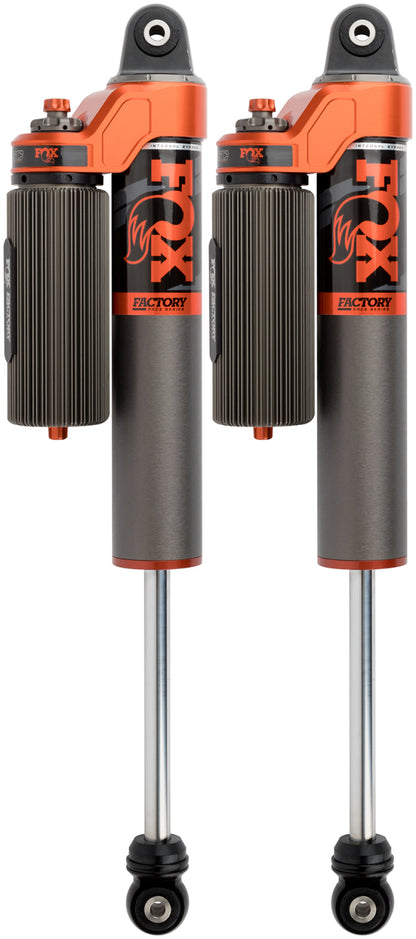

• 2x Rear Factory Race Series 3.0 Internal Bypass Shocks (883-26-078)

Product Description

The FOX 883-26-078 Factory Race Series 3.0 Internal Bypass Rear Shocks are engineered for lifted Jeep Wrangler JL models with 3.5-4.5" rear suspension lift. These race-inspired bypass shocks use position-sensitive internal bypass technology to modulate damping forces throughout the shock travel - providing plush compliance over typical terrain while delivering increased resistance at compression and rebound extremes for superior control on aggressive off-road trails. The large CNC-machined aluminum body and finned remote reservoir help dissipate heat rapidly, maintaining consistent damping performance.

Featuring Dual Speed Compression (DSC) adjusters, the 883-26-078 lets you fine-tune high-speed and low-speed compression settings independently, tailoring your ride to terrain, load, and driving style. Precision machining, race-bred piston design, and PTFE-lined spherical bearings ensure durability and smooth operation even under demanding conditions. This premium shock upgrade is ideal for Jeep Wrangler JL owners who want enhanced rear suspension performance, improved traction, and confidence-inspiring control during off-road adventures.
