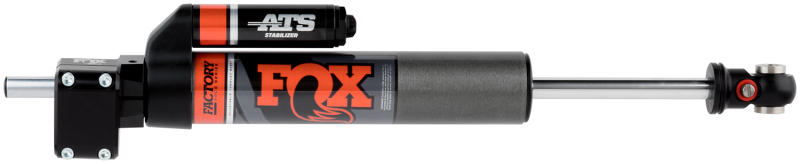

FOX 983-02-143 Factory Race ATS Steering Stabilizer for 17-26 Ford F250/F350

Vehicle Fitment

• 2017-2023 Ford F-250 Super Duty 4WD - Steering Stabilizer
• 2017-2023 Ford F-350 Super Duty 4WD - Steering Stabilizer

Fitment Notes

• Designed for stock height to 1.5" lift
• Trucks with greater than 1.5" lift require a drop bracket (not included)
• Stabilizer with drop bracket available as FOX 983-02-251
• Includes all gasoline and diesel engines (6.2L V8, 7.3L V8, 6.7L Power Stroke)
• Includes Cab Chassis and Utility models
• Mounts to 1-1/8" tie rod via clamp and eyelet at frame
• Replaces factory steering stabilizer
• Eliminates the need for dual opposing stabilizers
• Sold individually

Features

• Factory Race Series 2.0 Adjustable Through Shaft (ATS) steering stabilizer
• ATS architecture eliminates shaft fluid displacement in both directions
• 24-click external compression adjuster for fine-tuning
• External piggyback reservoir increases fluid capacity and reduces heat
• Internal Floating Piston (IFP) separates oil from nitrogen gas charge
• 2.0" impact extruded and CNC machined 6061-T6 aluminum body
• Clear anodized finish resists rust and corrosion
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving optimized for Super Duty steering
• Redundant sealing system: main seal, wiper seal, and scraper seal
• Black anodized CNC machined 6061-T6 billet aluminum components
• 100% rebuildable and serviceable

Specifications

• Part number: FOX 983-02-143
• Series: Factory Race
• Type: ATS steering stabilizer
• Body diameter: 2.0"
• Body material: 6061-T6 aluminum
• Body finish: Clear anodized
• Shaft diameter: 5/8"
• Shaft material: Hard chrome plated heat-treated alloy steel
• Extended length: 22.19"
• Collapsed length: 14.09"
• Travel: 8.11"
• Reservoir type: External piggyback
• Adjustment: 24-click external compression adjuster

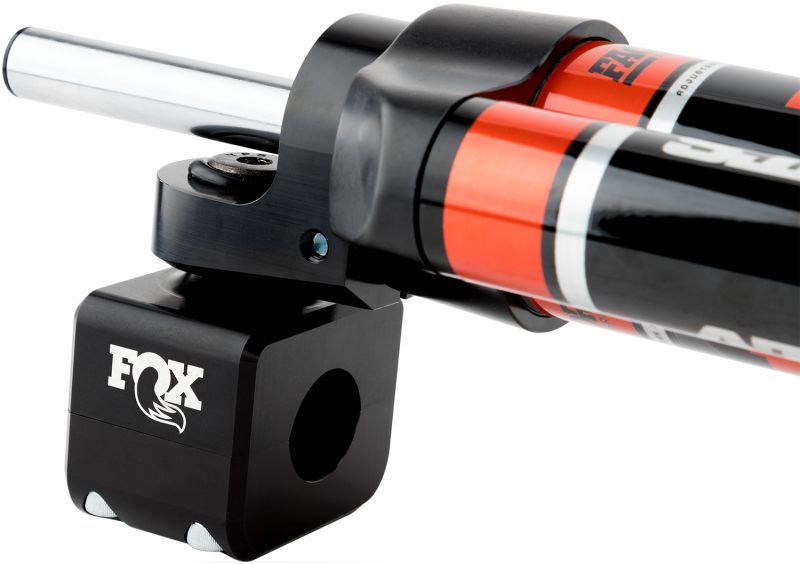

• Top mount: Tie rod clamp (1-1/8")
• Bottom mount: Eyelet
• Lift range: Stock to 1.5" (without drop bracket)
• UPC: 788000424032
• Warranty: Limited lifetime (original purchaser)

Included Components

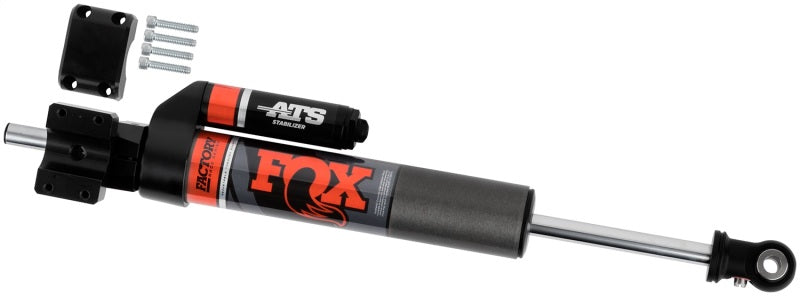

• (1) FOX 983-02-143 Factory Race 2.0 ATS steering stabilizer
• (1) Aluminum reservoir clamp
• Required mounting hardware, washers, bushings, and nuts

Product Description

The FOX 983-02-143 is a Factory Race Series 2.0 ATS steering stabilizer designed for 2017-2023 Ford F-250 and F-350 Super Duty 4WD trucks at stock height or with up to 1.5" of lift. The Adjustable Through Shaft design eliminates the oil displacement problem found in conventional stabilizers, where the shaft entering the body creates unequal pressure that pushes or pulls the steering in one direction. By running the shaft completely through the body, the ATS maintains equal fluid volume regardless of shaft position, delivering neutral and consistent damping in both directions without requiring dual opposing stabilizers. The external piggyback reservoir adds fluid capacity and uses an Internal Floating Piston to keep the nitrogen charge separated from the hydraulic fluid, preventing cavitation during repeated steering corrections. A 24-click external compression adjuster lets you dial in the damping feel to match your driving style, tire size, and trail conditions without removing the stabilizer. The 2.0" CNC machined 6061-T6 aluminum body is clear anodized for corrosion resistance, while the 5/8" chrome plated alloy steel shaft and redundant triple-seal system ensure long-term durability under aggressive steering inputs and off-road punishment. Trucks running greater than 1.5" of lift should use the 983-02-251, which includes the same stabilizer with a drop bracket for proper clearance.
