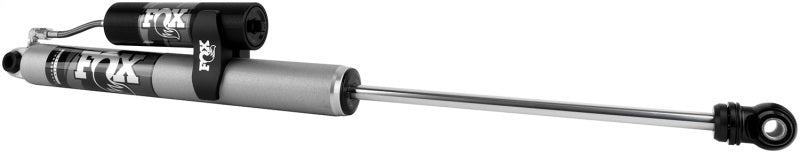

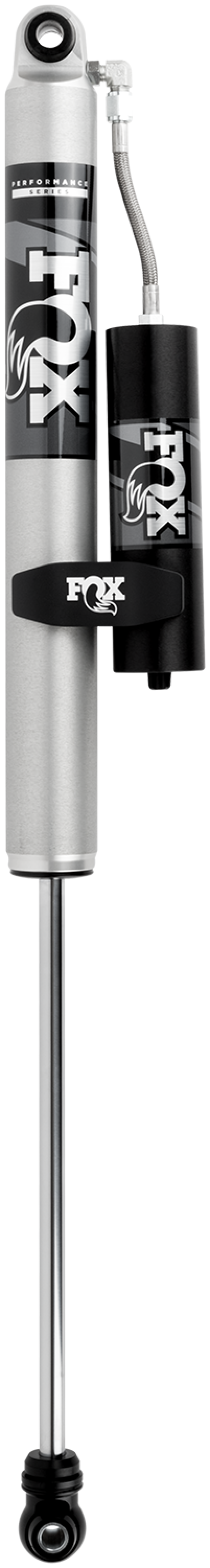

FOX 985-24-150 Rear 2.0 Performance Series Smooth Body Reservoir 2017-2024

Vehicle Fitment

• 2017-2024 Ford F-250 Super Duty (All trims, 4WD)
• 2017-2024 Ford F-350 Super Duty (All trims, 4WD)

Features

• 2.0" impact-extruded 6061-T6 aluminum body for superior heat dissipation
• Internal Floating Piston (IFP) design separates shock oil from high-pressure nitrogen
• Race-developed high-flow piston for improved damping performance
• Application-specific valving tailored for Ford Super Duty trucks
• CNC-machined billet aluminum components for durability
• Clear anodized finish for corrosion resistance
• Quiet nitrile rubber bushings reduce noise and increase articulation
• Easy bolt-on installation with factory hardware

Specifications

• Extended Length: 14.1 inches
• Collapsed Length: 8.0 inches
• Travel: 6.1 inches
• Top Mount: Eyelet

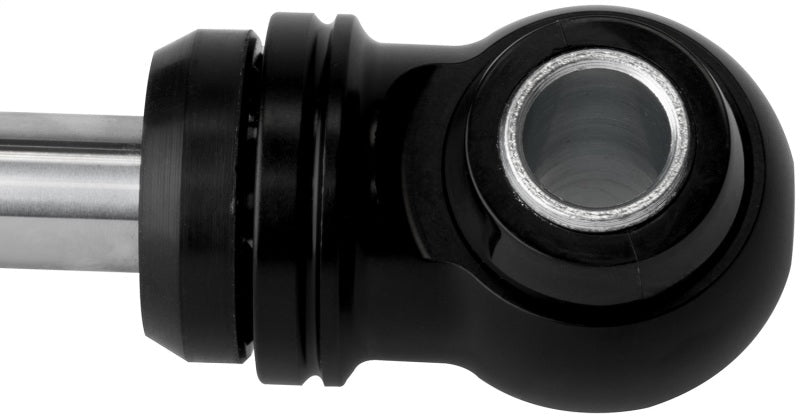

• Bottom Mount: Eyelet
• Reservoir Type: Smooth Body with Internal Floating Piston (IFP)
• Body Material: 6061-T6 aluminum
• Finish: Clear anodized
• Shaft: 1/2" hard chrome plated heat-treated alloy steel

Included Components

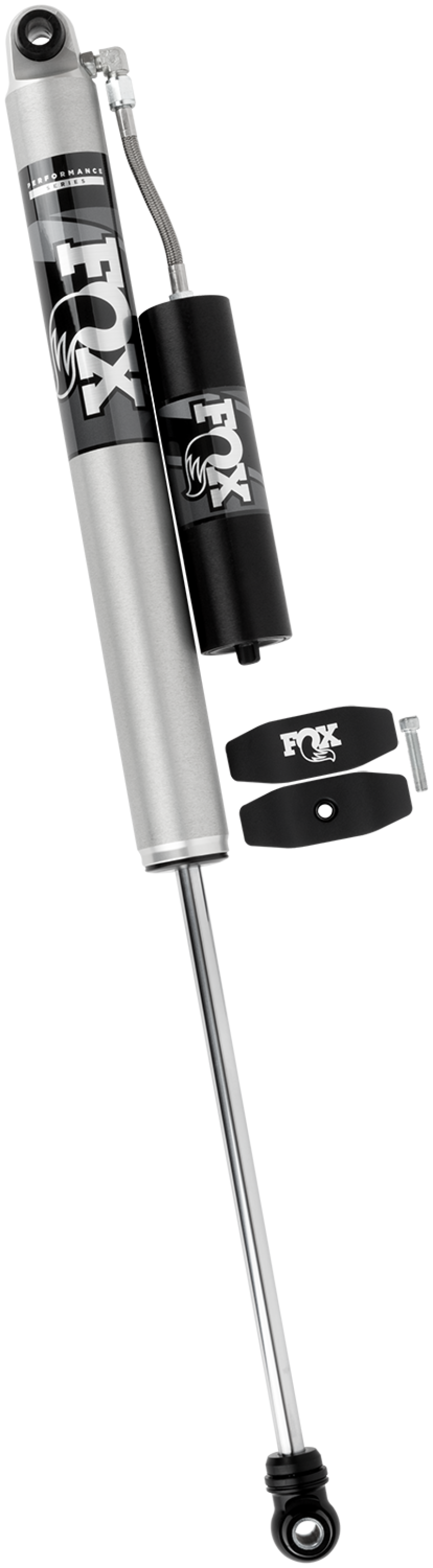

• 1x FOX 985-24-150 Rear 2.0 Performance Series Smooth Body Reservoir Shock
• 1x Installation hardware kit (washers, bushings, nuts)
• 1x Installation instructions

Product Description

The FOX 985-24-150 Rear 2.0 Performance Series Smooth Body Reservoir Shock is engineered to provide exceptional performance for 2017-2024 Ford F-250 and F-350 Super Duty trucks. Its 2.0" smooth body design enhances heat dissipation, while the Internal Floating Piston (IFP) technology ensures consistent damping performance by separating shock oil from high-pressure nitrogen gas.

Featuring a race-developed high-flow piston and application-specific valving, this shock effectively absorbs impacts and reduces body roll, delivering a smooth and controlled ride both on and off the road. The CNC-machined billet aluminum components, coupled with a clear anodized finish, offer superior durability and corrosion resistance. Installation is straightforward with the included hardware kit and instructions, making this shock a reliable choice for enhancing your Super Duty's suspension system.
