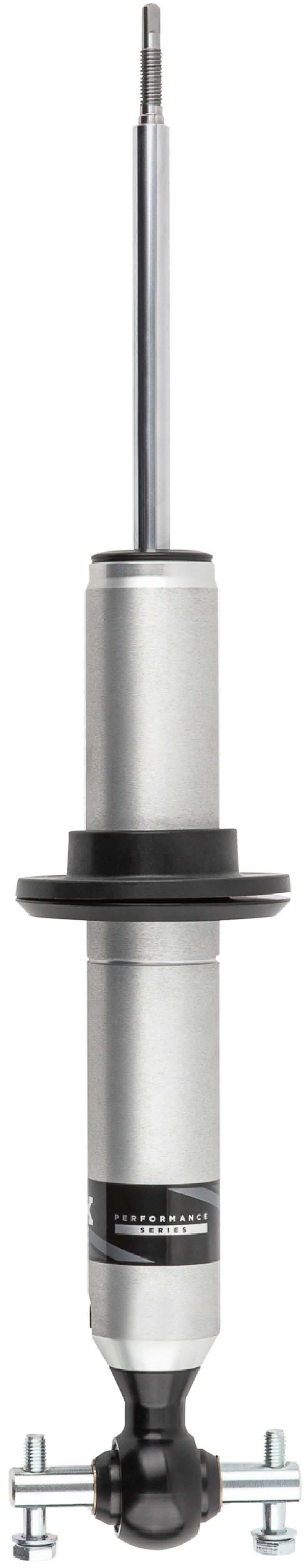

FOX 985-62-009 Perf. Series 2.0 Snap-Ring Coil-Over Strut for 15-20 Ford F-150

Vehicle Fitment

• 2015-2020 Ford F-150 (4WD, all trims, front strut, 0-2" lift)

Features

• Snap-ring coil-over offers preset 0", 1", or 2" ride height
• Tuned for lifted F-150 front suspension
• 2.0" impact-extruded 6061-T6 aluminum body (clear-anodized)
• Internal Floating Piston (IFP) mono-tube design for consistent damping
• Included spring seat uses factory coil spring and hardware
• Race-developed high-flow piston and valving
• 5/8" hard-chrome, heat-treated alloy steel shaft
• Black-anodized CNC billet lower mount with OE-style spherical bearing
• Redundant seals: main, wiper, scraper
• Durable zinc-plated finish and corrosion-resistant components

Specifications

• Position: Front
• Body diameter: 2.0" aluminum
• Compressed length: 16.85"
• Extended length: 22.50"
• Travel: 5.65"
• Top mount: Reuses stock stem mount
• Bottom mount: Bar-pin
• Lift range: 0-2" adjustable via snap-ring
• Reservoir: Internal Floating Piston (IFP)
• Spring: Uses factory coil (not included)

Included Components

• 1x FOX 985-62-009 Front Snap-Ring Coil-Over Strut
• 1x Custom spring seat (pre-installed)
• 1x Bar-pin lower mount (pre-installed)
• 1x Adjustment snap-ring (pre-installed)

Product Description

The FOX 985-62-009 Performance Series 2.0 Snap-Ring Coil-Over Strut transforms your 2015-2020 Ford F-150 4WD front end with easy, preset lift adjustments - 0", 1", or 2" - without needing new springs. The 2.0" aluminum body and internal floating piston technology ensure consistent damping and durability across various conditions.

Featuring race-developed valving, redundant sealing, and a balanced damping curve, this coil-over delivers precise control on road and trail. Installation is straightforward: simply reuse your factory spring and upper mount. The billet lower mount with OE-style spherical bearing adds reliability and performance under load.

Ideal for F-150 owners wanting performance and adjustability without a full coilover swap - backed by FOX's 1-year limited warranty. Note: does not fit Raptor models or 2WD trucks.
