FOX 885-24-234 2.0 Perf. Resi Front Shock Pair for 14-26 Ram 2500/3500 w/6" Lift

Vehicle Fitment

• 2014-2026 Ram 2500, 4WD, Front, 4-6 in lift
• 2014-2026 Ram 3500, 4WD, Front, 4-6 in lift

Fitment Notes

• Sold as a pair (left and right front)
• Lift height suggested by FOX; measure your specific aftermarket suspension system to confirm proper application

Features

• Internal Floating Piston (IFP) mono-tube design
• External reservoir increases oil and nitrogen capacity
• Race-developed high-flow piston design
• Application-specific valving
• 2.0" diameter, one-piece aluminum body
• Metal-impacted, clear anodized finish, corrosion-resistant
• Black anodized reservoir mounting clamp, CNC-machined 6061-T6 aluminum
• Reduces heat buildup during extended off-road use

Specifications

• Position: Front
• Extended length: 26.370 in
• Collapsed length: 16.750 in
• Travel: 9.620 in
• Top mount: Stem Top
• Body diameter: 2.0 in
• Reservoir type: External

Included Components

• 2x Front Shock, with Reservoir
• 2x Billet Reservoir Clamp
• Factory hardware for installation

Product Description

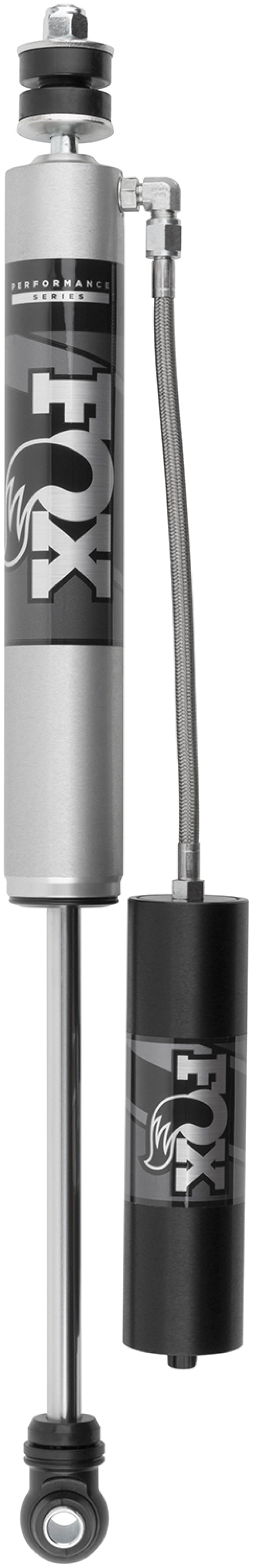

The FOX 885-24-234 is a pair of 2.0 Performance Series smooth body reservoir front shocks built for the 2014-2026 Ram 2500/3500 running a 4 to 6-inch lift. An Internal Floating Piston mono-tube design separates shock oil from a high-pressure nitrogen gas chamber, eliminating oil aeration so the race-developed, application-specific valving delivers predictable damping across everyday driving and rough off-road conditions.

An external reservoir adds oil and nitrogen capacity to reduce heat buildup during extended off-road use, backed by a 2.0-inch diameter, one-piece aluminum body that's metal-impacted and clear anodized for corrosion resistance. The included billet reservoir clamp and other components are CNC-machined from 6061-T6 aluminum, matching FOX's race-proven build quality.

This pair covers both front shocks; factory-reusable mounting hardware is included. Lift height compatibility is FOX's suggested range -- since aftermarket suspension systems vary, it's worth measuring your specific setup to confirm proper fit before ordering.
