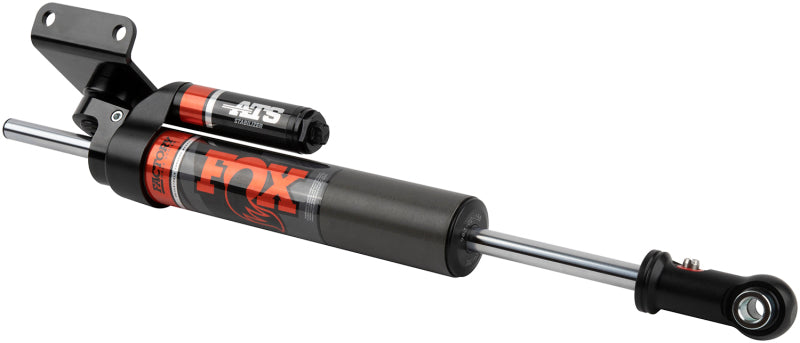

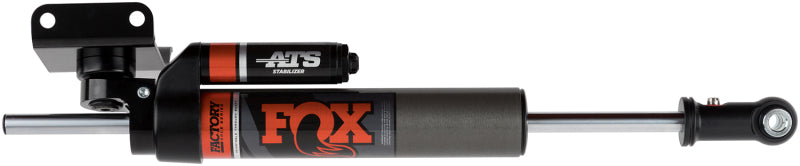

FOX 983-02-158 Factory Race 2.0 ATS Steering Stabilizer for 14-25 RAM 2500/3500

Vehicle Fitment

• 2014-2025 RAM 2500 4WD
• 2014-2025 RAM 3500 4WD

Features

• Adjustable Through Shaft (ATS) design for enhanced steering control
• 24-click external adjustment to fine-tune steering feel
• Integrated piggyback reservoir for additional fluid capacity and improved cooling
• 2.0" diameter CNC-machined 6061-T6 aluminum body for rust resistance
• Hard-anodized finish for durability
• Black-anodized CNC-machined billet aluminum components
• 5/8" hard chrome-plated heat-treated alloy steel shaft for strength
• Redundant sealing pack system (main, wiper, and scraper seals) for reliability

Specifications

• Extended Length: 23.27 inches
• Compressed Length: 15.07 inches
• Travel: 8.20 inches
• Top Mount: Axle Mount
• Bottom Mount: Eyelet
• Reservoir Type: Piggyback
• Body Material: 6061-T6 Aluminum
• Shaft Diameter: 5/8"
• Finish: Clear Anodized

Included Components

• 1x FOX 983-02-158 ATS Steering Stabilizer
• Mounting hardware
• Installation instructions

Product Description

The FOX 983-02-158 Factory Race 2.0 ATS Steering Stabilizer is engineered to provide superior steering control and stability for 2014-2025 RAM 2500 and 3500 4WD models. Its Adjustable Through Shaft (ATS) design eliminates shaft fluid displacement, ensuring consistent damping and reducing unwanted steering feedback, particularly beneficial when using oversized tires.

Featuring a 24-click external adjustment, this stabilizer allows for precise tuning of steering feel to match driving preferences and conditions. The integrated piggyback reservoir increases fluid capacity, enhancing cooling efficiency during extended use. Constructed with a 2.0" diameter CNC-machined 6061-T6 aluminum body, the stabilizer offers excellent rust resistance and durability. The hard-anodized finish and black-anodized billet aluminum components further contribute to its longevity and performance.

Installation is straightforward, utilizing existing mounting points and included hardware. The stabilizer's design ensures a direct fit for the specified RAM models, providing an effective solution for enhancing steering control and stability in demanding driving conditions.
