Fox 980-24-968 2.0 Front Shock w/Res for 11-19 Silverado/Sierra 2500 w/7-9" Lift

Vehicle Fitment

• 2011-2019 Chevrolet Silverado 2500HD (2WD/4WD, Front, 7-9" lift)
• 2011-2019 Chevrolet Silverado 3500HD (2WD/4WD, Front, 7-9" lift)
• 2011-2019 GMC Sierra 2500HD (2WD/4WD, Front, 7-9" lift)
• 2011-2019 GMC Sierra 3500HD (2WD/4WD, Front, 7-9" lift)

Features

• 2.0" impact-extruded 6061-T6 aluminum body for superior heat dissipation and corrosion resistance
• External reservoir increases oil and nitrogen capacity, reducing shock fade
• Race-developed high-flow piston design for predictable ride quality
• Application-specific valving tailored for lifted GM HD trucks
• Clear-anodized aluminum finish with black-anodized CNC-machined billet aluminum components
• 5/8" hard chrome-plated heat-treated alloy steel shaft for durability
• Quiet nitrile rubber bushings allow increased suspension articulation
• Includes billet reservoir clamp; factory mounting bolts reused for installation
• Not compatible with lift kits that alter OE mounting points

Specifications

• Part Number: 980-24-968
• Position: Front
• Lift Height: 7-9 inches
• Extended Length: 25.89 inches
• Compressed Length: 16.28 inches
• Travel: 9.62 inches

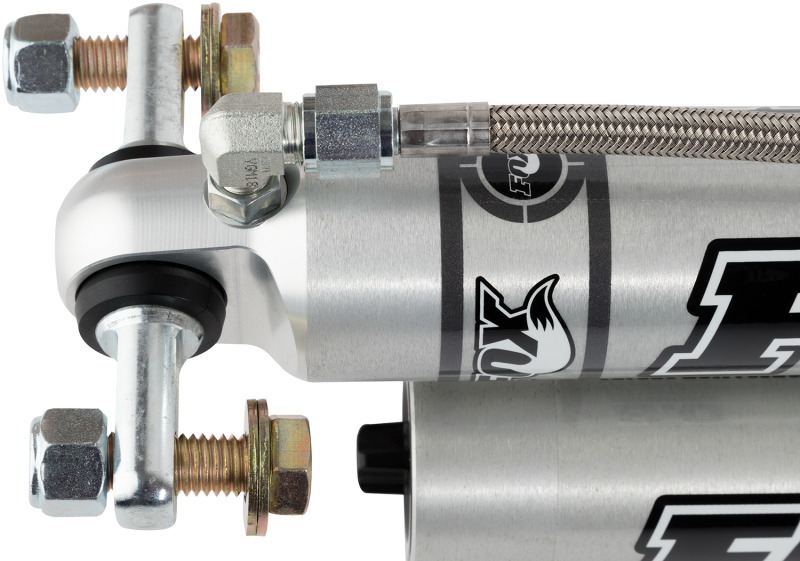

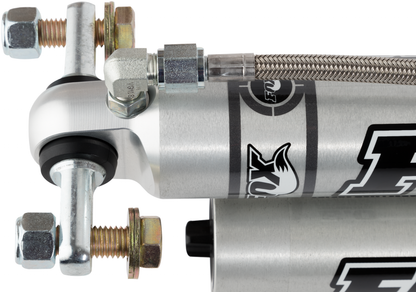

• Top Mount: Bar Pin

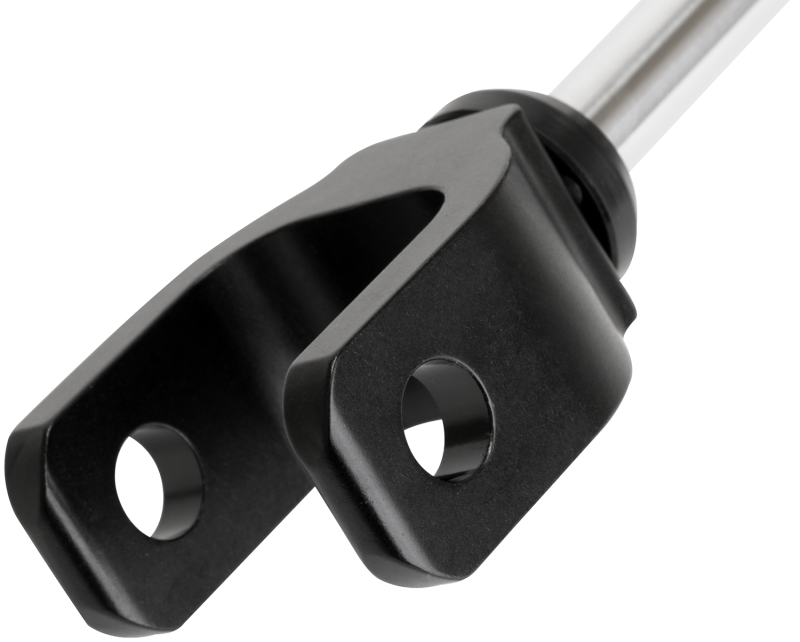

• Bottom Mount: Clevis
• Reservoir Type: Remote
• Body Diameter: 2.0 inches
• Weight: Approximately 8.2 lbs

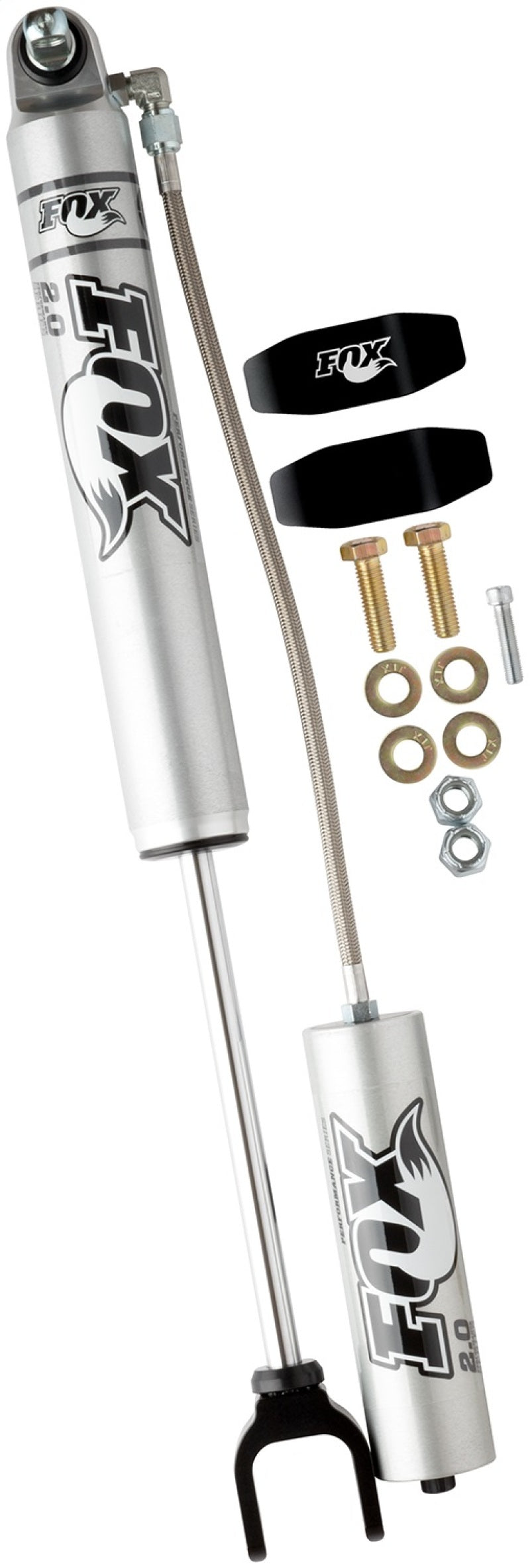

Included Components

• 1x Fox 980-24-968 2.0 Performance Series Reservoir Shock Absorber
• Billet reservoir clamp
• Installation instructions

Product Description

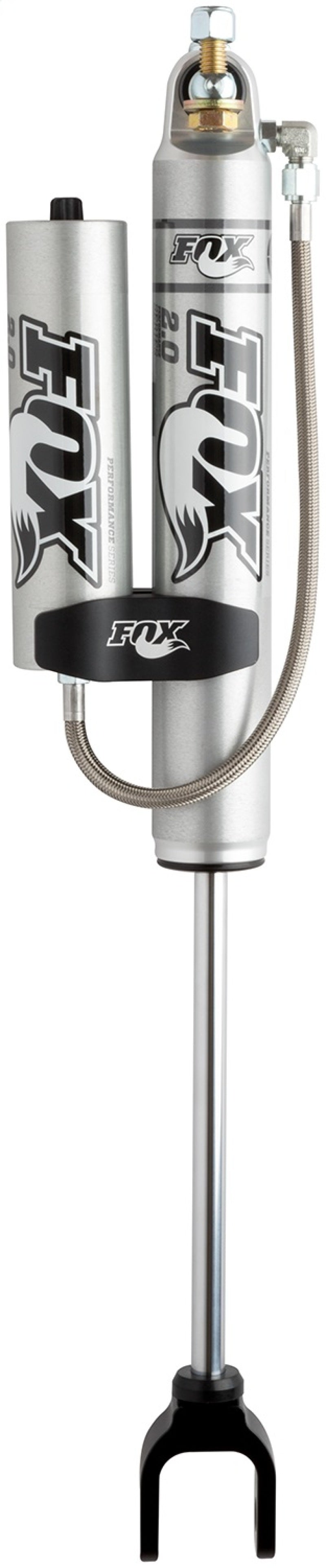

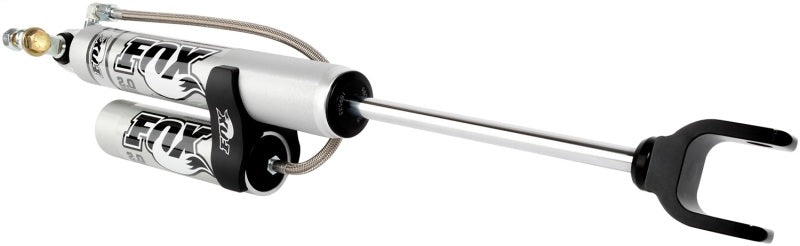

The Fox 980-24-968 2.0 Performance Series Reservoir Shock Absorber is engineered to enhance the suspension performance of your lifted 2011-2019 GM 2500HD/3500HD truck. Designed for vehicles with a 7-9 inch front lift, this shock absorber features a 2.0-inch impact-extruded 6061-T6 aluminum body that dissipates heat more efficiently than conventional steel bodies, ensuring consistent performance under demanding conditions.

Its external reservoir increases oil and nitrogen capacity, reducing shock fade during extended use. The race-developed high-flow piston design and application-specific valving deliver a predictable and comfortable ride, both on and off-road. The shock's construction includes a 5/8-inch hard chrome-plated heat-treated alloy steel shaft and black-anodized CNC-machined billet aluminum components for durability and longevity.

Installation is straightforward, utilizing factory mounting bolts and including a billet reservoir clamp. Please note that this shock is not compatible with lift kits that modify the original equipment mounting points.
