FOX 985-24-016 2.0 Performance Reservoir Rear Shock for 07-18 Jeep Wrangler JK

Vehicle Fitment

• 2007-2018 Jeep Wrangler JK (2-Door & 4-Door, Rear, 4WD, 1.5-3.5" lift)

Features

• 2.0" impact-extruded 6061-T6 aluminum smooth body for rapid heat dissipation and corrosion resistance
• External reservoir design increases oil and nitrogen capacity for consistent performance
• High-flow race-developed piston with application-specific valving for balanced on-road comfort and off-road control
• 5/8" hard chrome-plated heat-treated alloy-steel shaft with redundant seal pack (main, wiper, scraper)
• CNC-machined clear and black-anodized billet aluminum components, including reservoir clamp
• Quiet nitrile rubber bushings reduce noise and improve articulation
• Bolt-on OEM fitment with bar pin top mount and eyelet bottom mount
• Rebuildable and serviceable design extends shock lifespan

Specifications

• Position: Rear
• Lift Range: 1.5-3.5"
• Body Diameter: 2.0"
• Extended Length: 24.52"
• Compressed Length: 14.90"
• Travel: 9.62"
• Top Mount: Bar Pin

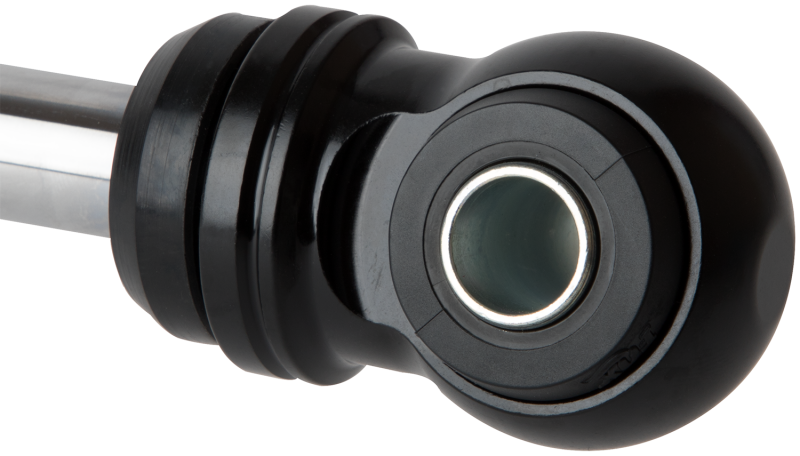

• Bottom Mount: Eyelet
• Reservoir: Remote external reservoir, clamp-mounted
• Material: 6061-T6 aluminum body; chromed alloy-steel shaft

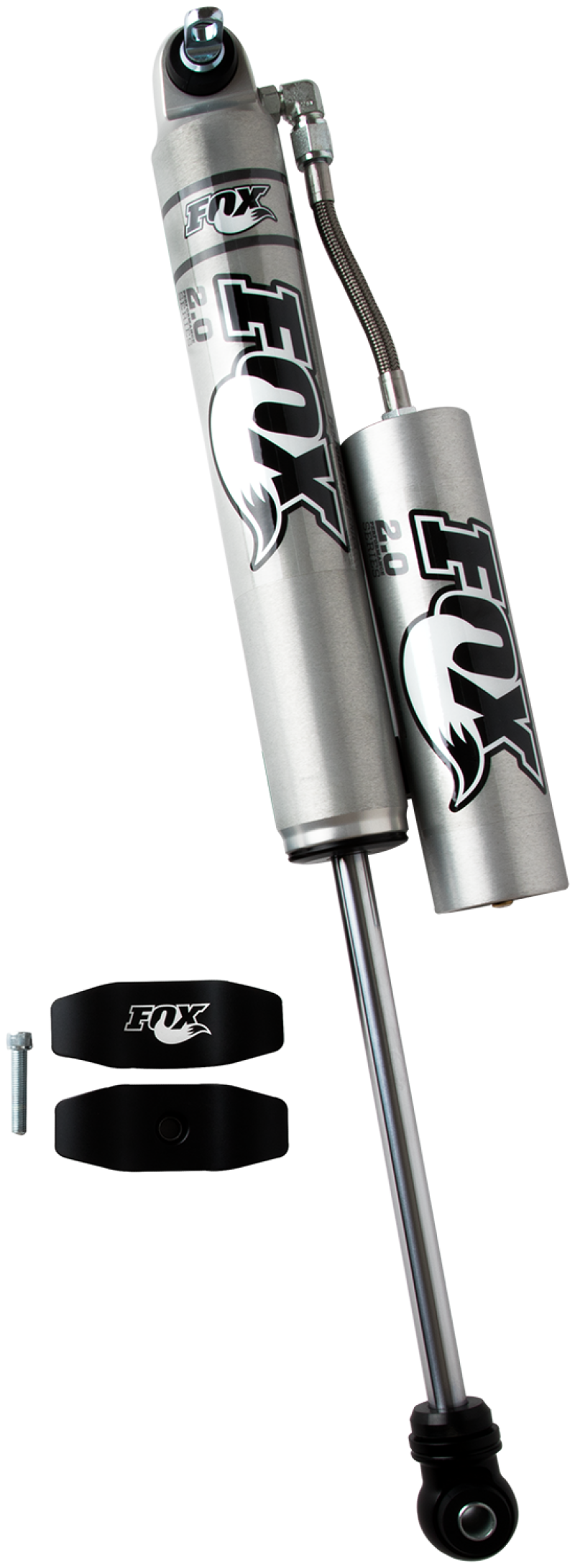

Included Components

• 1x FOX 985-24-016 Performance Series 2.0 reservoir rear shock
• 1x External reservoir with mounting clamp
• 2x Mounting bushings
• 2x Retaining washers
• 1x Top lock nut

Product Description

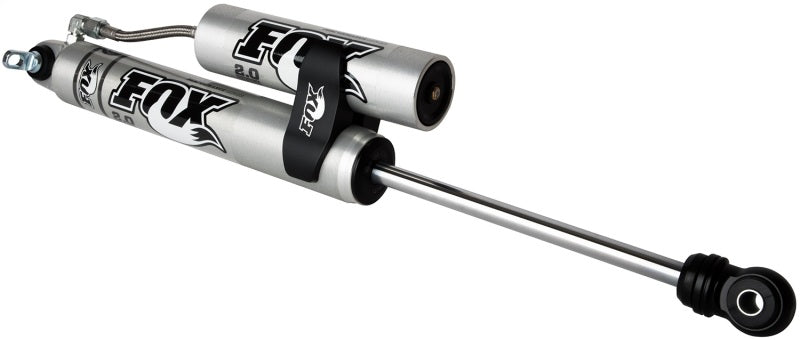

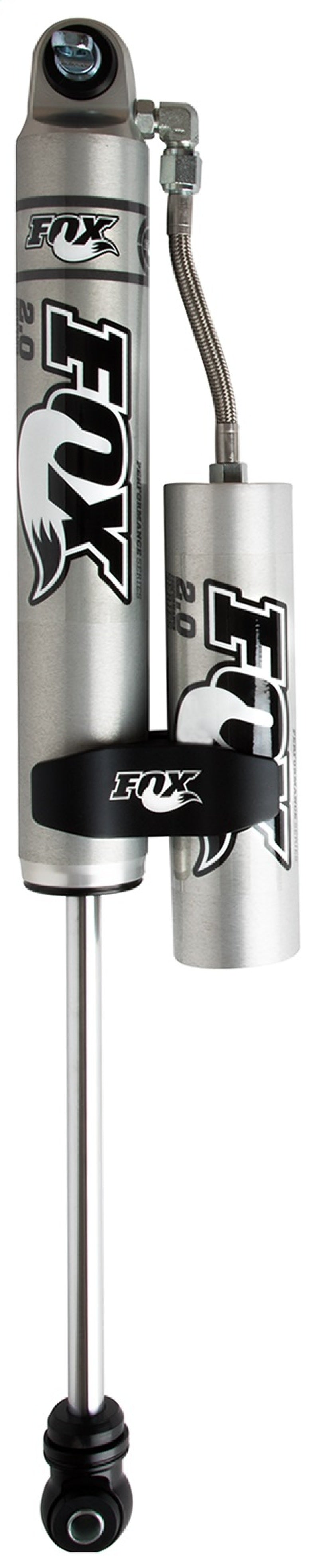

The FOX 985-24-016 Performance Series 2.0 reservoir rear shock is designed for lifted Jeep Wrangler JK models from 2007 through 2018 with 1.5" to 3.5" of suspension lift. Featuring a heat-efficient 2.0" aluminum body and external reservoir, this bolt-on upgrade enhances oil and gas capacity, ensuring consistent damping and fade-resistance on long trail runs or rugged terrain.

Equipped with race-tuned high-flow piston, application-specific valving, and a rugged 5/8" chrome shaft, the shock delivers responsive control without sacrificing ride comfort. The bar pin/eyelet mount configuration guarantees direct OEM fitment, while nitrile bushings reduce noise and improve suspension articulation. Serviceable and rebuildable, it's a smart long-term investment for JK owners seeking robust performance and durability.
