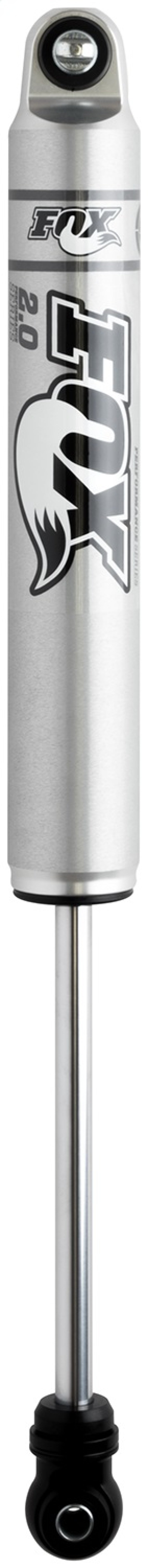

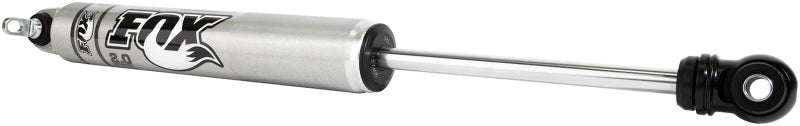

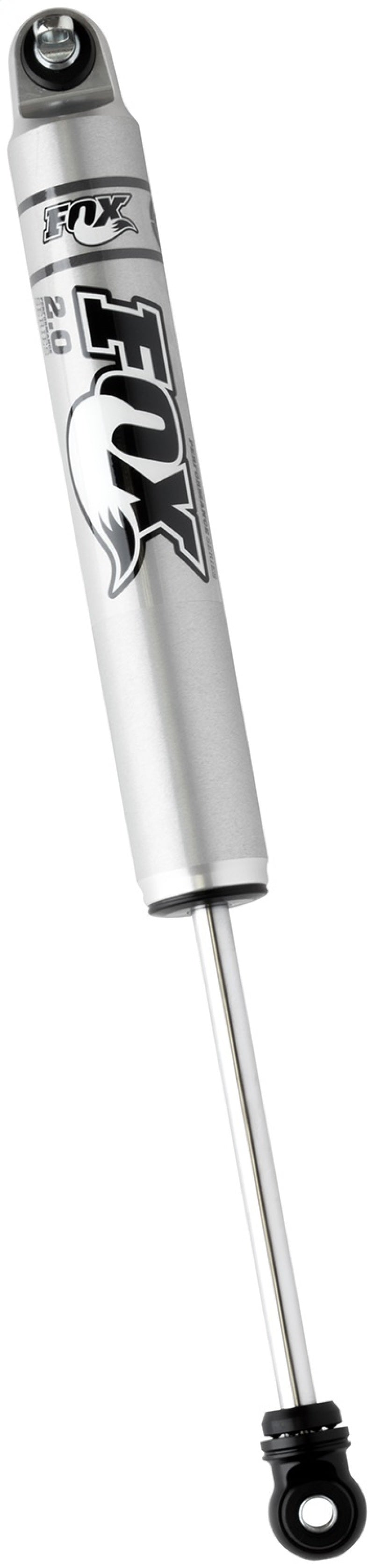

FOX 985-24-028 2.0 Perf. IFP Rear Shock for 07-18 Jeep Wrangler JK w/0-1" Lift

Vehicle Fitment

• 2007-2018 Jeep Wrangler JK 2WD/4WD (Rear, 0-1" Lift)

Features

• 2.0" impact-extruded and CNC-machined 6061-T6 aluminum body
• Clear anodized finish for enhanced durability and corrosion resistance
• Internal Floating Piston (IFP) mono-tube design for consistent performance
• High-flow damping piston matched with application-specific valving
• Redundant sealing pack system (main seal, wiper seal, scraper seal)
• Black-anodized, CNC-machined 6061-T6 billet aluminum components
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Easy bolt-on installation with no modifications required

Specifications

• Extended Length: 22.65 inches
• Collapsed Length: 14.55 inches
• Travel: 8.10 inches
• Top Mount: BP4
• Bottom Mount: ES3
• Reservoir Type: Internal Floating Piston (IFP)
• Body Material: 6061-T6 aluminum
• Reservoir Material: Smooth bore 6061-T6 aluminum
• Reservoir Finish: Clear anodized
• Shaft: 5/8" hard chrome plated heat-treated alloy steel

Included Components

• 1x FOX 985-24-028 2.0 Performance Series IFP Shock
• 1x Hardware kit (washers, bushings, nuts)
• 1x Installation instructions

Product Description

The FOX 985-24-028 2.0 Performance Series IFP Shock is engineered to enhance the suspension performance of your 2007-2018 Jeep Wrangler JK 2WD/4WD with a 0-1" rear lift. Featuring a 2.0" impact-extruded and CNC-machined 6061-T6 aluminum body, this shock dissipates heat more effectively than conventional steel shocks, ensuring consistent performance under demanding conditions.

The Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber, eliminating oil aeration and allowing maximum performance from the factory-tuned precision valving. The race-developed high-flow damping piston and application-specific valving provide improved damping performance, delivering a smooth and controlled ride both on and off the road. Installation is straightforward, utilizing factory mounting locations with no modifications required.
