FOX 980-24-641 2.0 Performance Series IFP Front Shock for 07-18 Jeep Wrangler JK

Vehicle Fitment

• 2007-2018 Jeep Wrangler JK, Front -- 4"-6" lift
• 2007-2018 Jeep Wrangler JK Unlimited, Front -- 4"-6" lift

Fitment Notes

• Front axle only -- fits 4"-6" suspension lift range
• Matching rear shock: FOX 980-24-642
• Sold individually -- 2 required for a complete front axle set
• Bolt-on -- installs at factory front mounting locations
• Top mount: SM3 (Stem) / Bottom mount: ES3 (Eyelet)
• Factory shock mounting bolts reused -- all necessary washers, bushings, and nuts included

Features

• 2.0" body diameter -- increased oil and nitrogen capacity vs. OEM shocks
• IFP monotube design -- Internal Floating Piston separates oil from nitrogen for consistent damping
• Eliminates oil aeration -- maximum performance from precision factory valving
• Impact-extruded 6061-T6 aluminum body -- dissipates heat faster than steel
• Black-anodized CNC-machined 6061-T6 billet aluminum components
• 5/8" hard chrome-plated shaft
• Race-developed high-flow damping piston
• Application-specific valving -- tuned for JK weight and geometry at 4"-6" lift
• Fully rebuildable
• Made in USA

Specifications

• Part Number: 980-24-641
• Series: 2.0 Performance Series
• Position: Front
• Body diameter: 2.0"
• Travel: 11.1"
• Extended length: 28.57"
• Compressed length: 17.45"
• Top mount: SM3 (Stem)
• Bottom mount: ES3 (Eyelet)
• Body material: Impact-extruded 6061-T6 aluminum
• Shaft: 5/8" hard chrome
• Reservoir: IFP (Internal Floating Piston) monotube
• Lift range: 4"-6"
• Matching rear: FOX 980-24-642
• Quantity: Sold individually
• Warranty: 1-year limited

Included Components

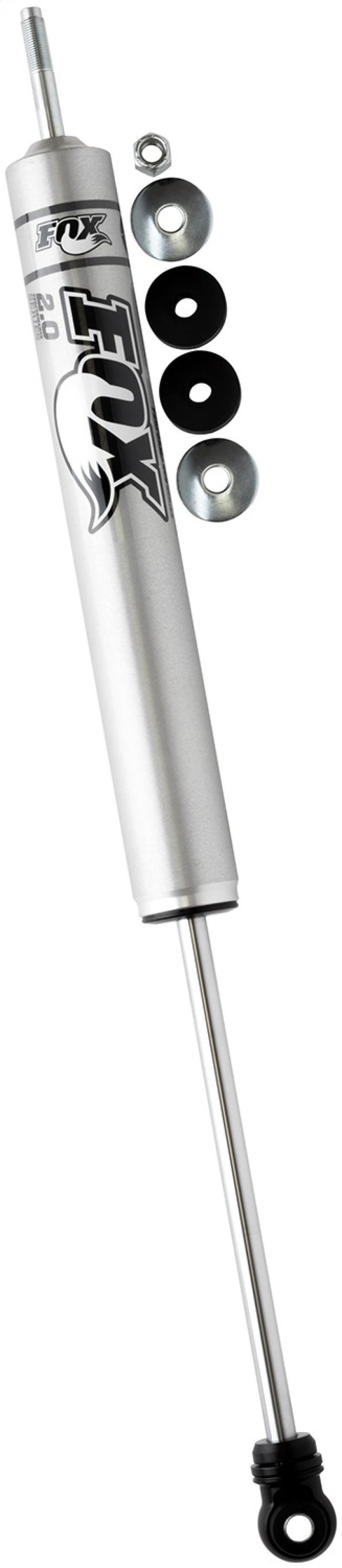

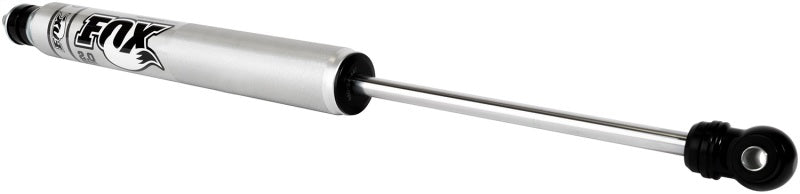

• 1x FOX 2.0 Performance Series IFP front shock
• All necessary washers, bushings, and nuts

Product Description

The FOX 980-24-641 is a 2.0 Performance Series IFP front shock for the 2007-2018 Jeep Wrangler JK and JK Unlimited, tuned for applications with 4"-6" of suspension lift. It bolts directly onto the factory front mounting locations -- sold individually, two are required for a complete front axle set. Matching rear shock is FOX 980-24-642.

The 2.0" impact-extruded 6061-T6 aluminum body carries an Internal Floating Piston (IFP) monotube design that separates the shock oil from the high-pressure nitrogen charge, eliminating oil aeration and maintaining consistent, fade-resistant damping under sustained hard off-road use. Application-specific valving is tuned for the JK's weight and geometry at the 4"-6" lift height, delivering a controlled, predictable ride on-road and off-road without the harshness common in lifted applications running OEM or entry-level shocks. 5/8" hard chrome shaft. Fully rebuildable. Made in the USA. Backed by FOX's 1-year limited warranty.
