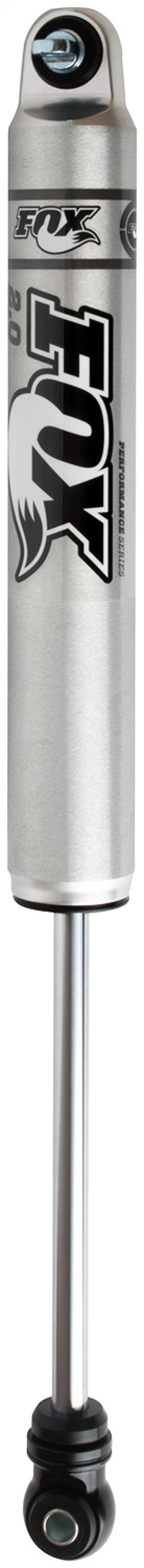

Fox Factory 985-24-048 2.0 Perf IFP Rear Shock for 06-10 Hummer H3/H3T

Vehicle Fitment

• 2006-2010 Hummer H3 (4WD) - Rear - 0-1" Lift Compatible
• 2009-2010 Hummer H3T (4WD) - Rear - 0-1" Lift Compatible

Features

• Fox Performance Series 2.0" smooth body shock with Internal Floating Piston (IFP)
• IFP design keeps shock oil and nitrogen separated to reduce aeration and improve consistency
• CNC-machined 6061-T6 clear anodized aluminum body for heat dissipation and corrosion resistance
• Race-developed high-flow piston for superior damping control
• Application-specific valving tuned for Hummer H3/H3T rear suspension dynamics
• 5/8" hard chrome plated, heat-treated alloy steel shaft for durability
• Black anodized billet aluminum components for strength
• Quiet nitrile rubber bushings reduce vibration and improve ride articulation

Specifications

• Part Number: 985-24-048
• Position: Rear (driver or passenger side)
• Shock Type: Fox 2.0 Performance Series smooth body with Internal Floating Piston
• Extended Length: ~24.75"
• Compressed Length: ~15.65"
• Stroke/Travel: ~9.1"
• Body Material: Clear-anodized 6061-T6 aluminum
• Mount Type: Eyelet/Eyelet
• Recommended Lift Range: 0-1" rear suspension lift

Included Components

• 1x Fox 2.0 Performance Series rear shock absorber (985-24-048)
• Bushings and sleeves preinstalled as required

Product Description

The Fox Factory 985-24-048 Performance Series 2.0 Smooth Body IFP Rear Shock is engineered as a direct-fit performance upgrade for 2006-2010 Hummer H3 and 2009-2010 Hummer H3T models with standard ride height or up to about 1" of rear lift. It features an Internal Floating Piston (IFP) design that separates shock oil from high-pressure nitrogen gas, which helps reduce aeration and delivers consistent damping performance across changing terrain and driving conditions.

Built around a precision CNC-machined 6061-T6 aluminum body with a clear anodized finish, this rear shock dissipates heat more effectively than traditional steel shocks while resisting corrosion. The race-developed high-flow piston and application-specific valving provide enhanced control and balanced ride quality, making it suitable for drivers seeking improved handling and comfort. Quiet nitrile rubber bushings help reduce vibration and noise, and the bolt-on design makes installation straightforward on compatible H3 and H3T rear suspension setups.
