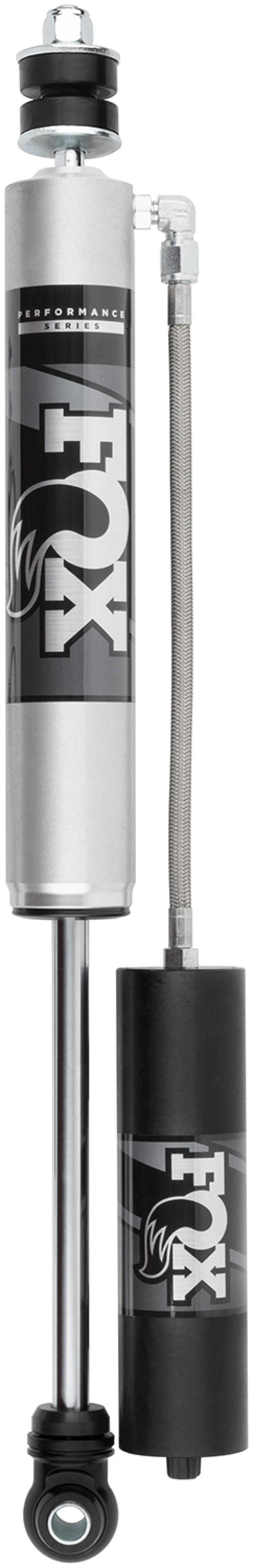

FOX 985-24-116 Rear Remote-Reservoir Shock for 05-23 Toyota Tacoma 8.6" 0-1.5"

Vehicle Fitment

• 2005-2023 Toyota Tacoma (All Trims including Pre-Runner/TRD, 2WD/4WD, 0-1.5" rear lift)

Features

• 2.0 Performance Series monotube shock with IFP (internal floating piston)
• External remote reservoir for increased oil/nitrogen capacity
• 6061-T6 billet aluminum body and reservoir clamp
• Race-developed high-flow piston & vehicle-specific valving
• 8.6" travel, ideal for matched suspension dynamics
• Clear - anodized finish resists corrosion and dissipates heat
• Factory hardware included - direct bolt-on installation
• One-year FOX limited warranty

Specifications

• Position: Rear
• Travel: 8.62"
• Extended Length: 22.3" / Compressed Length: 13.7"
• Body Diameter: 2.0" • Shaft: 5/8" hard-chrome steel
• Top Mount: SM1 (stem) • Bottom Mount: ES5 eyelet/sleeve
• Reservoir Type: Remote external (billet clamp included)
• Lift Range Compatibility: 0-1.5" (rear) with calibrated damping

Included Components

• 1x FOX 985-24-116 Rear Remote-Reservoir Shock
• 1x Billet aluminum reservoir clamp
• Factory washers, bushings & nuts
• Installation instructions

Product Description

The FOX 985-24-116 Performance Series rear shock is engineered for Toyota Tacoma trucks from 2005 through 2023 equipped with up to 1.5" rear lift. Its 2.0" monotube body and external reservoir deliver superior damping, heat control, and consistency over rough terrain.

Featuring FOX's internal floating piston (IFP) and race-tuned valving, this shock delivers responsive suspension performance while reducing fade under heavy use. The 8.6" stroke is optimized for Tacoma rear geometry and lifted applications. With high-strength 6061-T6 aluminum construction and a durable finish, installation is direct bolt-on using factory mounts.

Ideal for off-road enthusiasts, commuter-daily drivers, and TRD/Pre-Runner owners alike, the FOX 985-24-116 balances rugged performance and ride comfort. Includes factory-grade hardware and backed by FOX's one-year warranty. Precise tuning ensures predictable control throughout its range of lift, while resisting corrosion and heat for reliable, long-term use.
