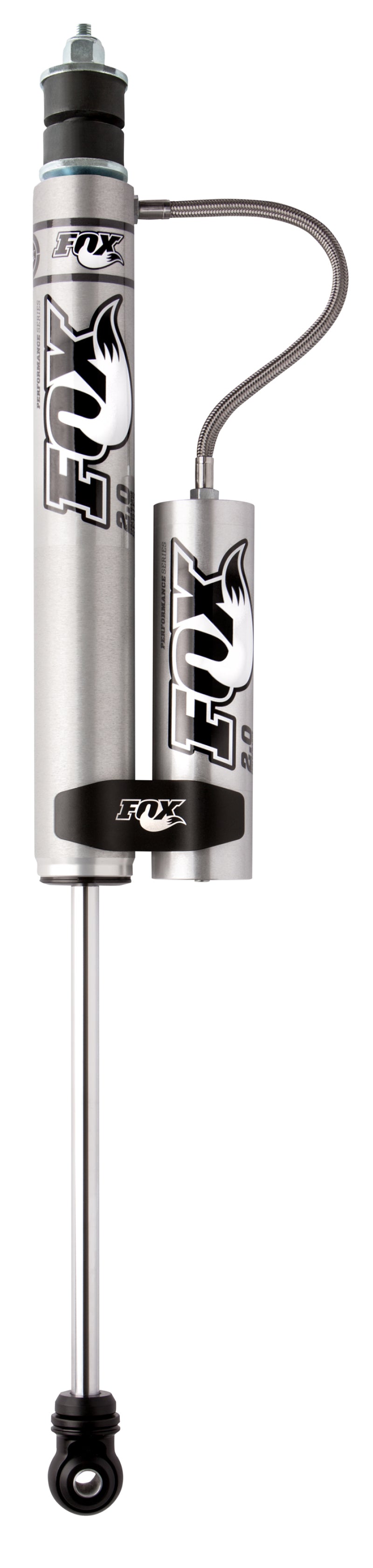

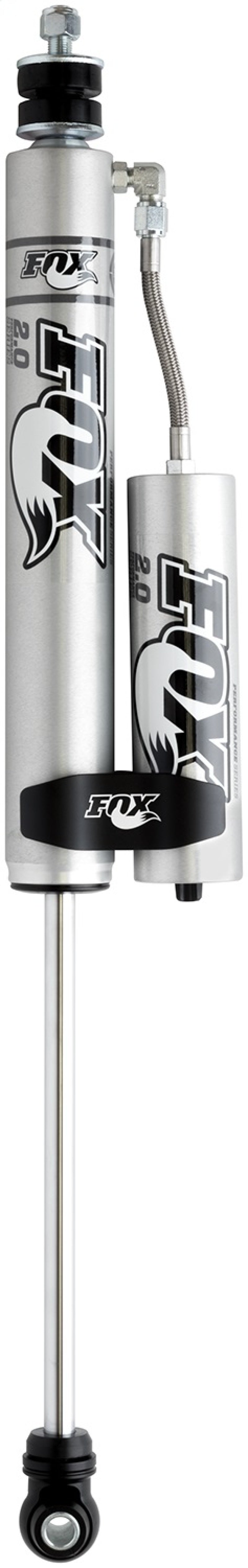

Fox 985-24-120 2.0 Perf Series Front Reservoir Shock for 05-16 Ford Super Duty

Vehicle Fitment

• 2005-2016 Ford F-250 Super Duty (Front, 4WD, 0-1.5" Lift)
• 2005-2016 Ford F-350 Super Duty (Front, 4WD, 0-1.5" Lift)
• 2005-2016 Ford F-450 Super Duty (Front, 4WD, 0-1.5" Lift)
• 2005-2016 Ford F-550 Super Duty (Front, 4WD, 0-1.5" Lift)

Features

• Fox 2.0 Performance Series smooth-body shock with external reservoir
• External smooth reservoir increases oil & nitrogen capacity for enhanced cooling
• Internal Floating Piston (IFP) separates gas from oil to reduce aeration
• Race-developed high-flow damping piston for smooth control
• Application-specific valving tuned for Super Duty front suspension
• 2.0" impact-extruded aluminum body resists corrosion and improves heat dissipation
• Clear-anodized finish and CNC-machined billet components for durability
• 5/8" chrome-plated heat-treated steel shaft with nitrile rubber bushings

Specifications

• Part Number: 985-24-120
• Position: Front (driver or passenger side)
• Extended Length: ~22.30"
• Compressed Length: ~13.70"
• Stroke: ~8.6"
• Body Diameter: 2.0"
• Reservoir Type: External smooth reservoir
• Compatible Lift Range: 0-1.5" front lift applications
• Mount Type: Top stem / bottom eyelet

Included Components

• 1x Fox 2.0 Performance Series front reservoir shock (985-24-120)
• 1x CNC-machined aluminum reservoir clamp

Product Description

The Fox 985-24-120 2.0 Performance Series front reservoir shock is designed for lifted Ford Super Duty trucks from 2005 through 2016. Featuring an external reservoir that increases oil and nitrogen capacity, this shock provides improved heat management and consistent damping performance on rough terrain or everyday driving. The internal floating piston (IFP) design helps separate gas from shock oil to minimize aeration and maintain smooth control under varied conditions.

Constructed with a durable 2.0" impact-extruded aluminum body and clear-anodized finish, the 985-24-120 stands up to corrosion and efficiently dissipates heat for long service life. Precision-tuned valving and a race-developed high-flow piston work together to enhance ride quality and stability whether you're towing, hauling, or off-road. Sold individually with a billet aluminum reservoir clamp, this front shock is ideal for owners with 0-1.5" of front lift seeking a performance-oriented suspension upgrade.
