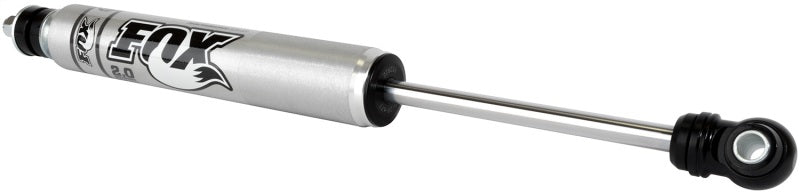

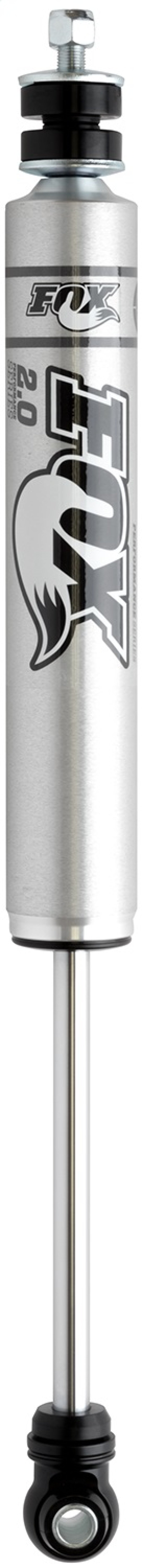

FOX 980-24-677 2.0 IFP Front Shock for 05-16 Ford F-250/F-350 Super Duty 4WD

Vehicle Fitment

• 2005-2016 Ford F-250 Super Duty (4WD, Front, 0-1.5" lift)
• 2005-2016 Ford F-350 Super Duty (4WD, Front, 0-1.5" lift)

Features

• 2.0" smooth-body 6061-T6 aluminum for improved cooling & corrosion resistance
• Internal Floating Piston (IFP) mono-tube design prevents oil aeration
• Race-developed high-flow piston and factory-tuned valving
• 5/8" hard chrome-plated heat-treated alloy-steel shaft with redundant seals
• CNC-machined black-anodized billet aluminum top (SM3) and lower (ES7) mounts
• High-pressure nitrogen charge for fade-free performance
• Direct-fit OEM hardware included for easy installation
• Fully serviceable/rebuildable for extended life

Specifications

• Position: Front
• Lift Range: 0-1.5"
• Extended Length: 22.28"
• Compressed Length: 14.15"
• Travel: 8.13"
• Body Diameter: 2.0"
• Top Mount: SM3 stem
• Bottom Mount: ES7 eyelet
• Material: 6061-T6 aluminum body, chrome-plated alloy shaft
• Reservoir Type: Internal Floating Piston (IFP)

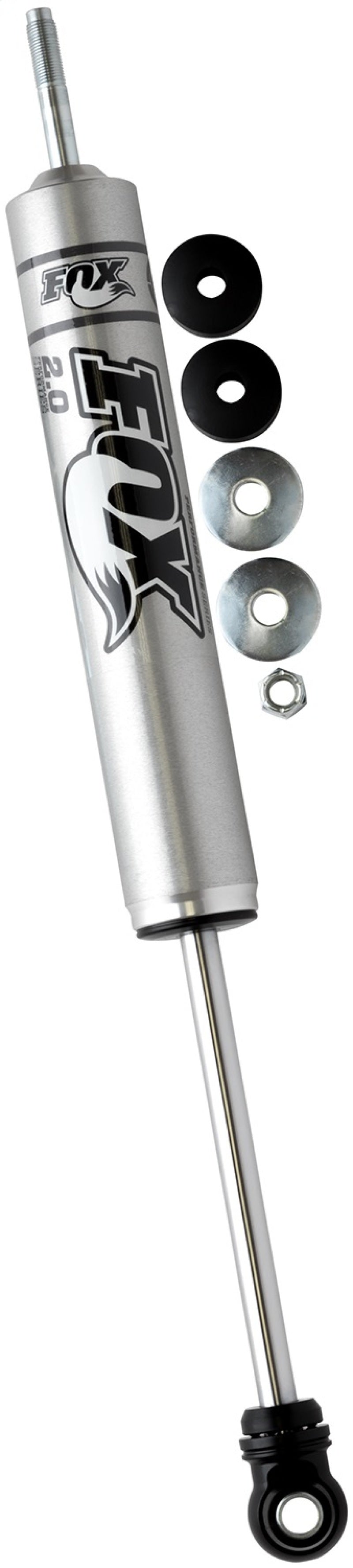

Included Components

• 1x FOX 980-24-677 Performance Series 2.0 IFP front shock
• 2x Mounting bushings
• 2x Retaining washers
• 1x Top lock nut

Product Description

The FOX 980-24-677 Performance Series 2.0 IFP front shock is built for 2005-2016 Ford F-250 and F-350 Super Duty trucks with up to 1.5" of front lift. Featuring a durable 2.0" aluminum smooth-body and Internal Floating Piston, it delivers consistent, fade-resistant damping even under heavy loads or rough terrain.

With a precision-machined high-flow piston, factory-tuned valving, and redundant seals, this shock enhances ride comfort, steering control, and articulation. Measuring 8.13" stroke and direct-fit SM3/ES7 mounting, it installs with OEM hardware for a hassle-free upgrade. Fully rebuildable and backed by FOX's limited one-year warranty, it's the ideal upgrade for owners seeking performance and durability.
