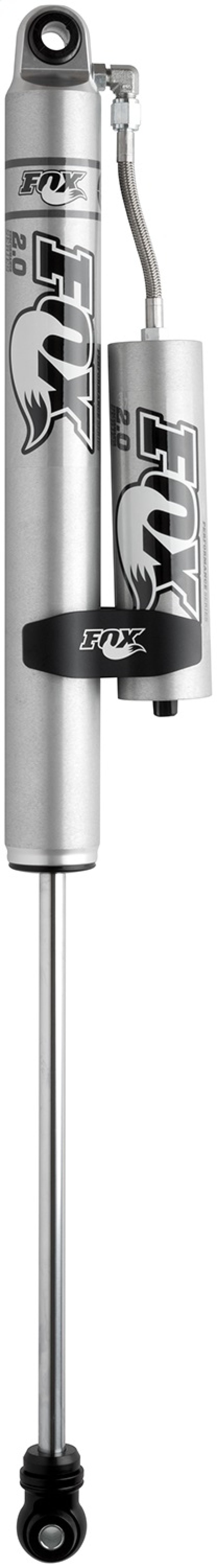

FOX 985-24-105 Rear Reservoir Shock 1.5-3.5" Lift for 99-16 Ford F-250/F-350 4WD

Vehicle Fitment

• 1999-2016 Ford F-250 4WD (rear axle, 1.5-3.5" lift)
• 1999-2016 Ford F-350 4WD (rear axle, 1.5-3.5" lift)

Fitment Notes

• Rear shock only
• Designed for suspension lifts between 1.5 and 3.5 inches
• Requires matching spring lift and proper ride height geometry
• Sold individually--two shocks required for full rear installation

Features

• 2.0" smooth body Performance Series aluminum reservoir design for enhanced heat dissipation
• High-flow damping piston and application-specific valving tuned for Ford Super Duty rear loads
• 5/8" hard chrome plated alloy steel shaft for strength and smooth operation

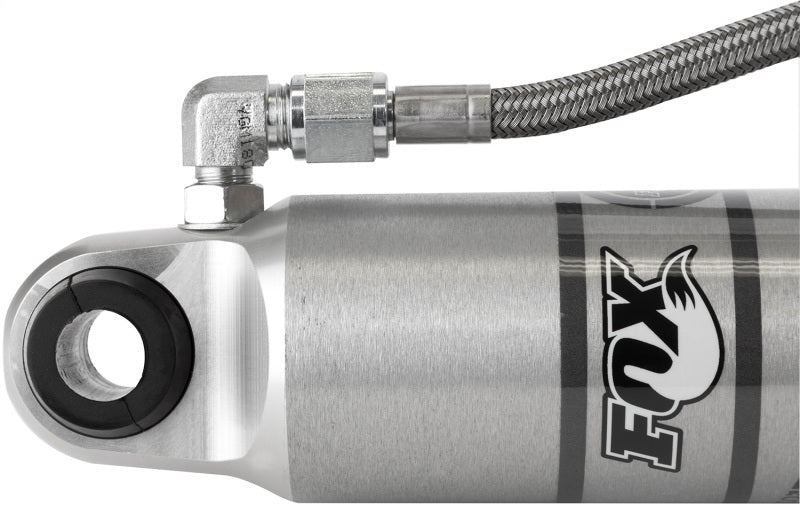

• External reservoir system with billet mounting clamp to manage heat and oil capacity
• Redundant seal package (wiper, scraper, main seal) for durability in off-road / heavy use
• Clear anodized aluminum body finish; billet aluminum components for lightweight yet strong build

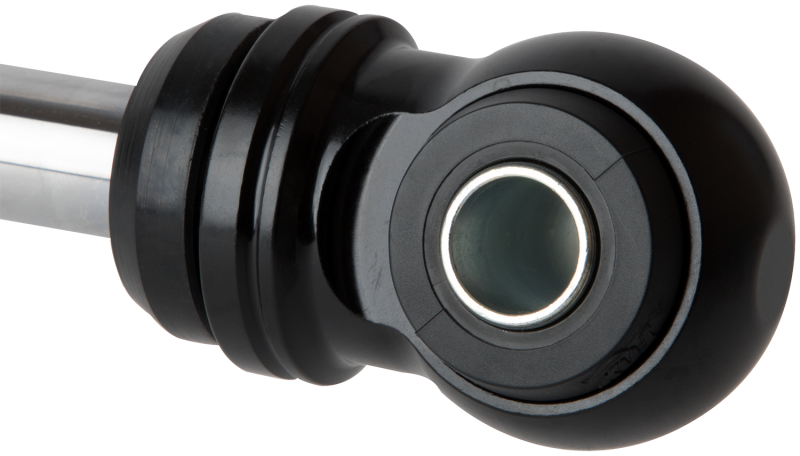

• Quiet nitrile rubber bushings at mounts for reduced vibration and noise
• Limited lifetime structural warranty from FOX on shock housing and reservoir; standard warranty on finish/seal components

Specifications

• Position: Rear axle
• Extended length: ~33.52 in
• Compressed length: ~19.90 in
• Shock travel: ~13.62 in
• Top mount: Eyelet (EB3 or equivalent)
• Bottom mount: Eyelet/Sleeve (ES1 or equivalent)
• Lift range compatibility: 1.5-3.5 inches
• Material: Extruded 6061-T6 aluminum body; 2.0" diameter

Included Components

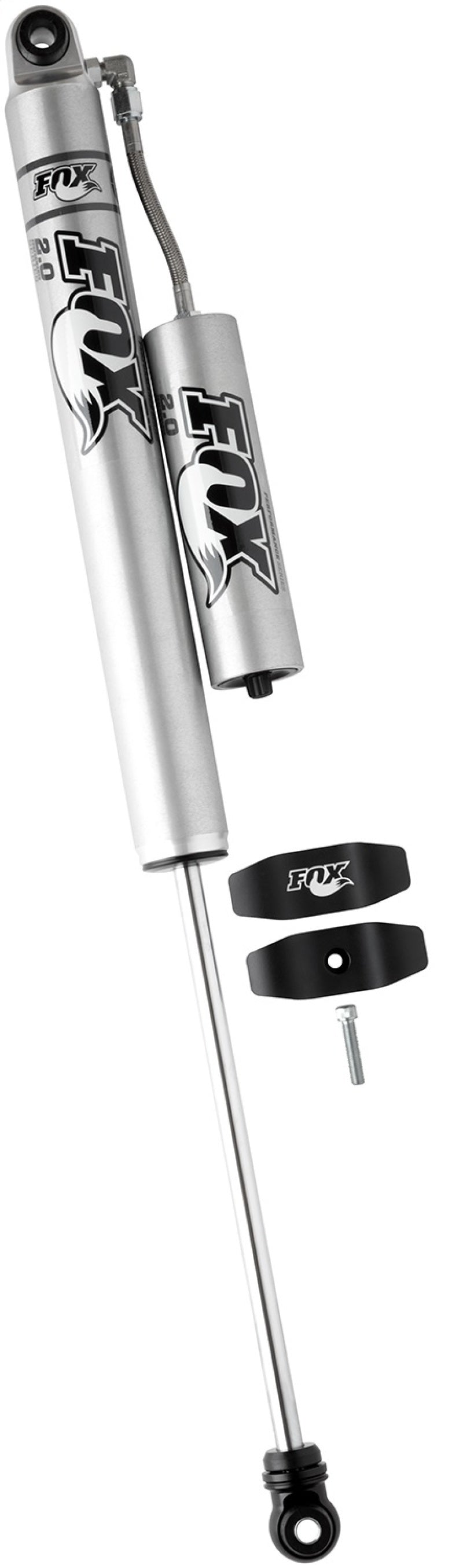

• 1x Rear FOX 985-24-105 reservoir shock
• Billet reservoir clamp and related mounting hardware
• All required bushings and washers for eyelet and bottom mounting
• Install instructions

Product Description

The FOX 985-24-105 Performance Series 2.0 Smooth Body Reservoir Rear Shock is built for 1999-2016 Ford F-250/F-350 4WD trucks lifted **1.5-3.5 inches**. It's designed as the "smaller lift" counterpart to the 985-24-106, retaining the same build quality -- a smooth-body 2.0" extruded aluminum housing, remote reservoir, high-flow piston, and durable finishing. The shorter stroke is tuned for lower lift heights to preserve ride quality and geometry.

Installation is bolt-on at the rear using OEM or compatible mounting points, with the necessary hardware included. The external reservoir allows greater fluid capacity and better cooling under load, ensuring consistent damping performance. Ideal for owners who want improved off-road or lifted ride behavior without going to full 4-6" shocks (covered by 24-106).
