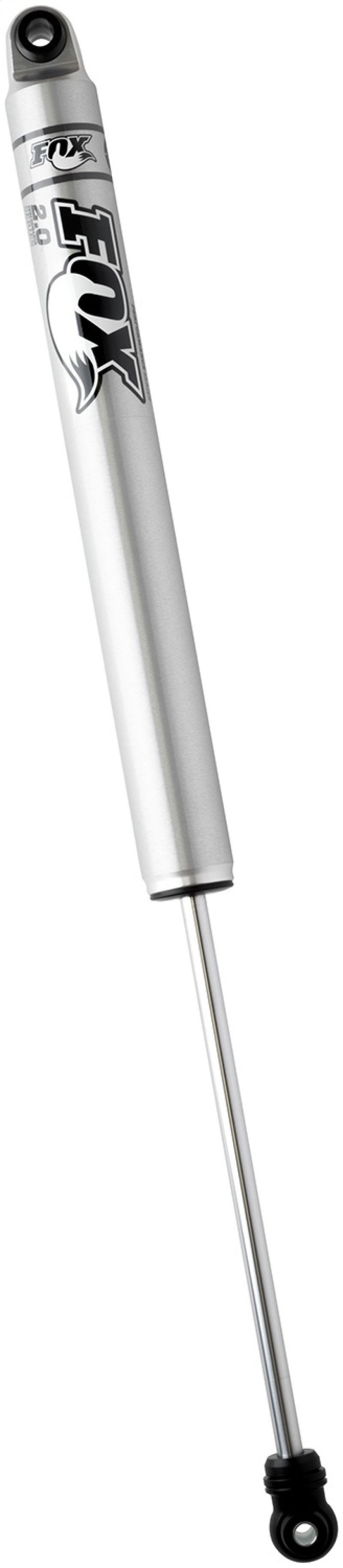

Fox 980-24-665 2.0 IFP Rear Shock for 05-16 Ford Super Duty 4-6" Lift

Vehicle Fitment

• 2005-2016 Ford F-250 Super Duty (4WD/RWD, Various Engines)
• 2005-2016 Ford F-350 Super Duty (4WD/RWD, Various Engines)

Features

• FOX 2.0 Performance Series smooth body design for upgraded rear suspension
• Internal Floating Piston (IFP) mono-tube technology for consistent damping
• Application-specific valving tuned for lifted Ford Super Duty rear suspension
• Impact-extruded 2.0" 6061-T6 aluminum body resists corrosion and improves heat dissipation
• Black-anodized CNC-machined aluminum components for strength
• 5/8" hard chrome plated, heat-treated alloy steel shock shaft
• Race-developed high-flow piston design for smooth travel and control
• Redundant sealing pack system for extended service life

Specifications

• Part Number: 980-24-665
• Position: Rear (Driver or Passenger Side)
• Shock Type: Non-Adjustable, IFP Mono-Tube
• Extended Length: ~35.02"
• Compressed Length: ~21.40"
• Travel: ~13.62"
• Body Diameter: 2.0"
• Mounts: Eyelet Top / Eyelet Bottom
• Recommended Rear Lift Height: 4"-6"

Included Components

• 1x FOX 980-24-665 2.0 IFP Rear Shock
• Factory-installed bushings
• Mounting hardware reused from OE units (mount bolts not included)

Product Description

The FOX 980-24-665 2.0 Performance Series Rear Shock is engineered to significantly enhance rear suspension performance on lifted Ford Super Duty trucks. Featuring FOX's proven Internal Floating Piston (IFP) technology, this mono-tube shock maintains separation of shock oil and nitrogen gas to prevent aeration and deliver consistent damping over varied terrain and loads. The impact-extruded aluminum body dissipates heat effectively and resists corrosion, ensuring reliable long-term service.

Designed as a direct-fit performance replacement for select 2005-2016 Ford F-250 and F-350 Super Duty models equipped with approximately 4"-6" of rear lift, the 980-24-665 improves stability, ride control, and rear suspension articulation without sacrificing comfort. Its application-specific valving and high-flow piston deliver a controlled and predictable ride whether you're on-road or off-road.
