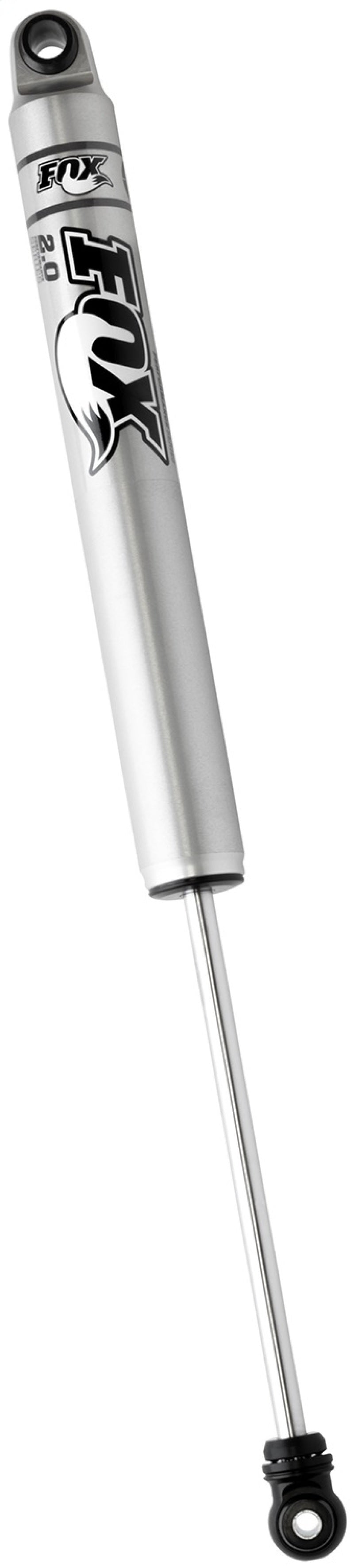

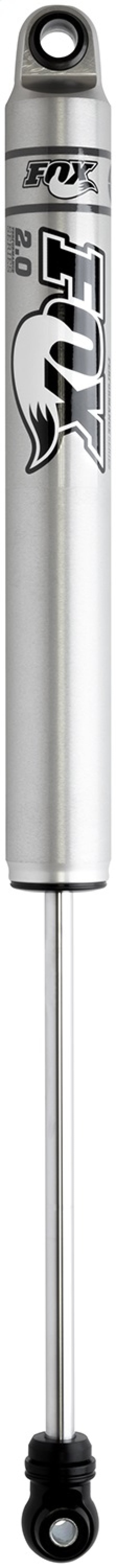

Fox 980-24-647 2.0 IFP Rear Shock for 99-16 Ford Super Duty 0-1" Lift

Vehicle Fitment

• 1999-2016 Ford F-250 Super Duty (4WD/RWD, Various Engines)
• 1999-2016 Ford F-350 Super Duty (4WD/RWD, Various Engines)
• 2005-2016 Ford F-450 Super Duty (4WD/RWD, Various Engines)
• 2005-2016 Ford F-550 Super Duty (4WD/RWD, Various Engines)

Features

• FOX 2.0 Performance Series smooth body design tuned for rear suspension performance
• Internal Floating Piston (IFP) mono-tube technology for consistent damping
• Vehicle-specific valving for predictable on- and off-road handling
• 6061-T6 CNC-machined aluminum body for heat dissipation and corrosion resistance
• 5/8" hard chrome plated, heat-treated alloy steel shaft
• Race-developed high-flow piston for smooth travel control
• Redundant sealing system with main, wiper, and scraper seals
• Quiet nitrile rubber bushings to improve articulation and reduce noise

Specifications

• Part Number: 980-24-647
• Position: Rear (Driver or Passenger Side)
• Shock Type: Non-Adjustable, IFP Mono-Tube
• Extended Length: ~30.12"
• Compressed Length: ~18.50"
• Travel: ~11.62"
• Body Diameter: 2.0"

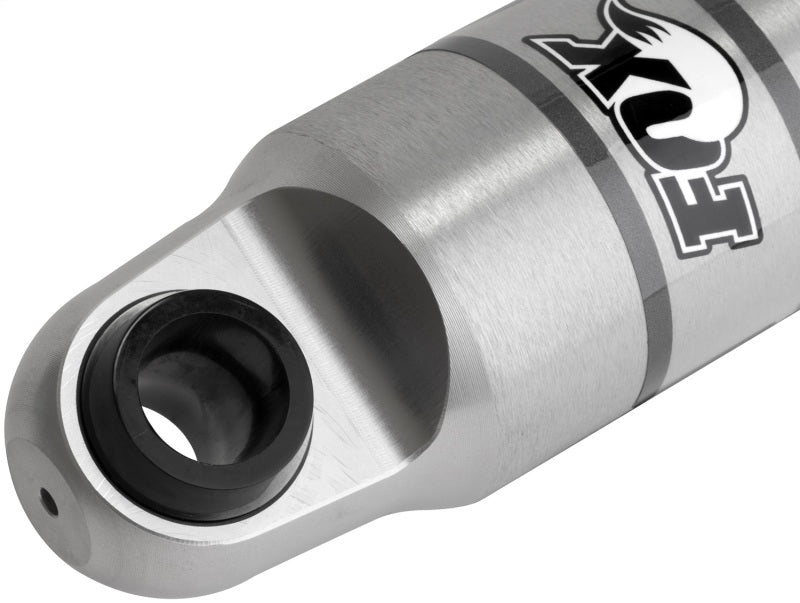

• Mounts: Eyelet Top & Eyelet Bottom
• Recommended Lift Height: 0-1" Rear

Included Components

• 1x FOX 980-24-647 2.0 IFP Rear Shock
• Factory bushings installed
• Mounting hardware reused from OE units (shock bolts not included)

Product Description

The FOX 980-24-647 2.0 Performance Series Rear Shock is engineered to upgrade the rear suspension performance on Ford Super Duty trucks equipped with stock or slight rear lift (0-1"). Utilizing FOX's Internal Floating Piston (IFP) technology, this mono-tube shock maintains separation of high-pressure nitrogen gas and oil, providing consistent damping performance across varied terrain and load conditions. The 6061-T6 CNC-machined aluminum body resists corrosion and improves heat dissipation, extending shock life and reliability.

Designed as a direct-fit replacement for select 1999-2016 Ford F-250 and F-350 Super Duty models as well as 2005-2016 F-450 and F-550 trucks, the 980-24-647 enhances ride control, rear suspension articulation, and stability without sacrificing comfort. Its valving is tuned specifically for rear applications with up to 1" of lift, making it ideal for mild lifted trucks used both on- and off-road.
