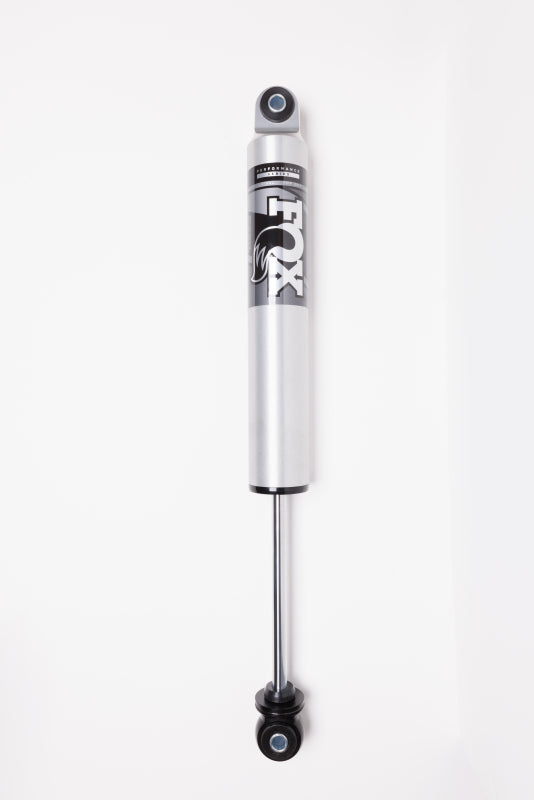

FOX 987-24-057 -2.5 IFP HTO Rear Shock for 05-16 Ford F250/F350 w/6-8" Lift

Vehicle Fitment

• 2005-2016 Ford F-250 Super Duty 4WD -- 6-8" lift
• 2005-2016 Ford F-350 Super Duty 4WD -- 6-8" lift

Fitment Notes

• Rear shock -- 6-8" lift applications only
• Sold individually -- order quantity needed per vehicle (typically 2 rear)
• Direct bolt-on to factory mounting points
• Factory shock mounting bolts reused for installation
• Shock boots and roost shields sold separately
• IFP monotube design -- no external reservoir

Features

• Performance Series 2.5 Smooth Body IFP with HTO technology
• Internal Floating Piston separates oil from high-pressure nitrogen
• IFP eliminates oil aeration for consistent fade-free damping
• Hydraulic Top Out (HTO) -- position-sensitive rebound damping control
• HTO reduces harsh top-outs after heavier tires or higher-than-OEM lifts
• Race-developed high-flow aluminum piston
• Application-specific valving tuned for Ford Super Duty rear
• Type II anodized aluminum body dissipates heat faster than steel
• Fully rebuildable and serviceable

Specifications

• Part Number: 987-24-057
• Series: Performance Series
• Body Diameter: 2.5"
• Body Material: Aluminum, Type II anodized
• Shaft: 7/8" hard chrome plated heat-treated alloy steel
• Piston: 6061-T6 hard-anodized high-flow aluminum
• Components: Black-anodized CNC-machined 6061-T6 billet aluminum
• Reservoir Type: Internal Floating Piston (IFP)
• Technology: HTO (Hydraulic Top Out)
• Extended Length: 35.88"
• Compressed Length: 22.19"
• Travel: 13.69"
• Bottom Mount: ES1 (eyelet/stem)
• Position: Rear
• Lift Range: 6-8"
• UPC: 00692878900669

Included Components

• 1x FOX 2.5 Performance Series IFP HTO rear shock
• Washers, bushings, and nuts
• Installation hardware

Product Description

The FOX 987-24-057 is a Performance Series 2.5 Smooth Body IFP rear shock with Hydraulic Top Out technology for the 2005-2016 Ford F-250 and F-350 Super Duty with 6-8 inches of lift. The 2.5-inch monotube design features an Internal Floating Piston that separates the shock oil from the high-pressure nitrogen gas chamber, eliminating oil aeration and allowing maximum performance from the factory-tuned precision valving. The HTO system provides position-sensitive rebound damping control that reduces harsh top-outs -- particularly beneficial after installing heavier aggressive tires and running lift heights above OEM specification.

The Type II anodized aluminum body efficiently dissipates heat to prevent fade during sustained off-road use, while the 7/8-inch hard chrome plated heat-treated alloy steel shaft resists pitting and wear. All internal components are CNC-machined from 6061-T6 billet aluminum with black anodize for durability and precision. Application-specific valving is tuned for the Ford Super Duty rear suspension at 6-8 inches of lift, delivering a comfortable on-road ride with predictable off-road handling in the roughest conditions. Fully rebuildable and serviceable. Sold individually. Backed by FOX's 1-year limited warranty.
