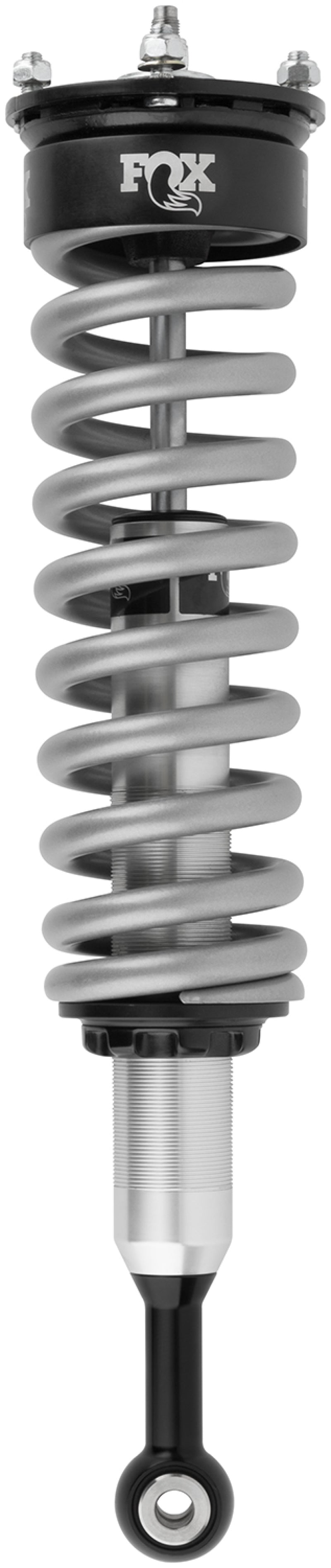

FOX 985-02-005 2.0 Performance Series Coilover IFP Shock for 00-06 Toyota Tundra

Vehicle Fitment

2000-2006 Toyota Tundra 2WD
2000-2006 Toyota Tundra 4WD

Fitment Notes

• Front axle position only
• Compatible with 0-2 inch lift
• Fits both 2WD and 4WD models
• Direct bolt-on replacement - no modifications required
• Sold individually - two required per vehicle
• Designed to level truck front-to-rear at maximum preload setting
• Reuses factory shock mounting hardware

Features

• 2.0-inch impact extruded 6061-T6 aluminum body resists rust and corrosion
• Clear anodized finish for durability in wet and salty environments
• Internal Floating Piston (IFP) monotube design separates oil from nitrogen gas
• High-pressure nitrogen charged for consistent damping performance
• Application-specific valving tuned for Toyota Tundra
• Race-developed high-flow piston design for smooth damping
• Vehicle-specific upper mount with composite bushing isolates noise and vibration
• Locking spring preload rings for easy ride height adjustment
• Top-quality racing coil spring with optimal spring rate
• CNC-machined black anodized aluminum components

Specifications

• Brand: FOX
• Part Number: 985-02-005
• Product Line: Performance Series 2.0
• Type: Coilover IFP Shock
• Position: Front
• Body Diameter: 2.0 inches
• Body Material: 6061-T6 Aluminum
• Finish: Clear Anodized
• Reservoir Type: Internal Floating Piston (IFP)
• Compressed Length: 13.6 inches
• Extended Length: 18.19 inches
• Travel: 4.625 inches
• Lift Range: 0-2 inches
• Bottom Mount: Eyelet
• Quantity: Sold Individually
• Warranty: 1 Year Limited
• UPC: 714686858731

Included Components

• FOX 2.0 Performance Series coilover assembly
• Pre-installed coil spring
• Vehicle-specific upper mount
• Mounting hardware (bushings, washers, nuts)
• Installation instructions

Product Description

The FOX 985-02-005 Performance Series 2.0 Coilover IFP shock delivers race-proven suspension technology in a direct bolt-on package for 2000-2006 Toyota Tundra trucks. The 2.0-inch impact-extruded 6061-T6 aluminum body provides superior heat dissipation compared to steel while resisting rust and corrosion. FOX's Internal Floating Piston (IFP) monotube design separates shock oil from high-pressure nitrogen gas, eliminating aeration for consistent damping performance in demanding conditions. Locking spring preload rings allow easy ride height adjustment from stock to 2 inches of lift, with the maximum setting designed to level the truck front-to-rear. Application-specific valving tuned for the Tundra platform delivers comfortable on-road driving with predictable off-road handling. The vehicle-specific upper mount features a composite bushing that isolates noise and vibration for a refined ride quality.
