Ford Racing M-18000-B2 Wildtrak HOSS 3.0 FOX Lift Kit 2021-2025 Bronco 4-Door

Vehicle Fitment

• 2021-2025 Ford Bronco 4-Door (Base, Big Bend, Black Diamond, Outer Banks, Wildtrak, Badlands, Everglades, Lariat, Limited - all engines, 4WD)

Fitment Notes

• Fits 4-Door Bronco only - for 2-Door, see M-18000-B2A
• Does NOT fit Bronco Raptor
• Provides approximately 2" of lift on Non-Sasquatch models; Sasquatch-equipped models already ride higher from the factory and lift gain will vary
• Pre-2022 (MY2021) models: verify sway bar endlink attachment brackets are present on the rear frame rail - not included on all early production units
• Warranty valid for 3 years / 36,000 miles from new vehicle in-service date when installed by a Ford Dealer or ASE/Red Seal certified technician

Features

• HOSS 3.0 system engineered around a Prerunner mindset - the same platform found on factory Wildtrak models
• FOX 2.5" internal-bypass shocks with 5-zone progressive, rate-sensitive damping for superior control over varied terrain
• Remote reservoirs on all four shocks provide increased fluid capacity and heat dissipation during sustained off-road use
• Improves front approach angle from 35.5° to 44.3° and rear departure angle from 29.7° to 37°
• Direct bolt-in replacement - no cutting or drilling required
• Validated through Ford's full vehicle durability testing program, including competition at the NORRA 1000

Specifications

• Lift Height: Approximately 2" (Non-Sasquatch models)
• Shock Diameter: FOX 2.5"
• Damping Zones: 5-zone progressive, rate-sensitive with internal bypass
• Reservoir Type: Remote reservoir (front and rear)
• Front Approach Angle: 44.3° (vs. 35.5° stock)
• Rear Departure Angle: 37° (vs. 29.7° stock)
• Position: Front and Rear
• Warranty: 3 Years / 36,000 Miles (certified install)
• Package Weight: 145 lbs
• Package Dimensions: 25" x 21" x 41"

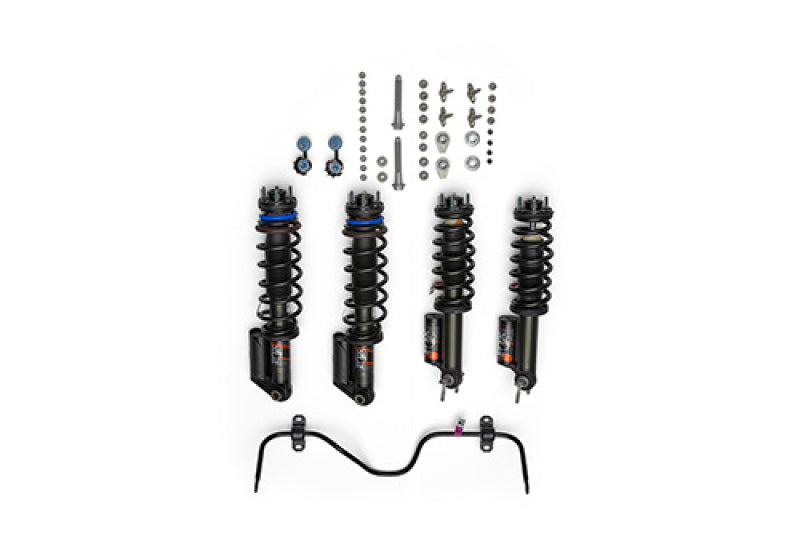

Included Components

• 4x HOSS 3.0 FOX 2.5" Internal-Bypass Shocks with Remote Reservoirs (front and rear)
• 1x HOSS 3.0 Rear Stabilizer Bar
• 2x Sway Bar Endlinks
• 1x Mounting Hardware and Fasteners Kit

Product Description

The Ford Racing M-18000-B2 is the HOSS 3.0 Wildtrak Suspension Kit for the 2021-2025 Ford Bronco 4-Door - the same suspension package engineered into factory Wildtrak models, now available as a bolt-on upgrade. At the heart of the kit are four FOX 2.5" internal-bypass coilover shocks with remote reservoirs and 5-zone progressive damping, delivering confident control on everything from dirt roads to technical off-road trails without requiring any manual adjustment.

The kit delivers approximately 2 inches of lift on non-Sasquatch Broncos, significantly improving approach and departure angles for better obstacle clearance. It has been validated through Ford's rigorous durability testing, including running and podium finishes at the NORRA 1000. When installed by a Ford dealer or certified technician, it qualifies for Ford Performance's 3-year/36,000-mile warranty. Bronco 2-Door owners should reference M-18000-B2A; this kit does not fit the Bronco Raptor.
