Firestone 2176 Ride-Rite Air Helper Spring Kit for 99-25 Ford F-350/F-450/F-500

Vehicle Fitment

• 1999-2008 Ford F-350 Super Duty -- Cab & Chassis, 2WD/4WD
• 2017-2025 Ford F-350 Super Duty -- Cab & Chassis, 2WD/4WD
• 1999-2025 Ford F-450 Super Duty -- Cab & Chassis, 2WD/4WD
• 2011-2012 Chevrolet Silverado 3500HD -- Cab & Chassis, Wide Track, 2WD/4WD
• 2011-2012 GMC Sierra 3500HD -- Cab & Chassis, Wide Track, 2WD/4WD

Fitment Notes

• CAB AND CHASSIS ONLY -- NOT for models with factory pickup bed
• F-350 with factory pickup bed: use Firestone 2550 instead
• F-450 with factory pickup bed (08+): use Firestone 2583 instead
• NOT for E-450 van cab/chassis -- use Firestone 2377
• NOT compatible with in-bed hitches
• Minimum tire-to-frame clearance: 7.5" (measure both sides before purchase)
• Drilling required -- 4 holes per side for upper brackets
• GM fitment is Wide Track models only

Features

• Ride-Rite double convoluted air helper springs (pair)
• 3,200-5,000 lbs load leveling capacity per set
• Adjustable 5-100 PSI
• Individual inflation valves -- level side-to-side or front-to-rear
• Reduces inter-leaf friction for improved ride quality
• Improves steering control and braking effectiveness
• Reduces suspension sag, bottoming out, and body roll
• Levels headlight beams under load

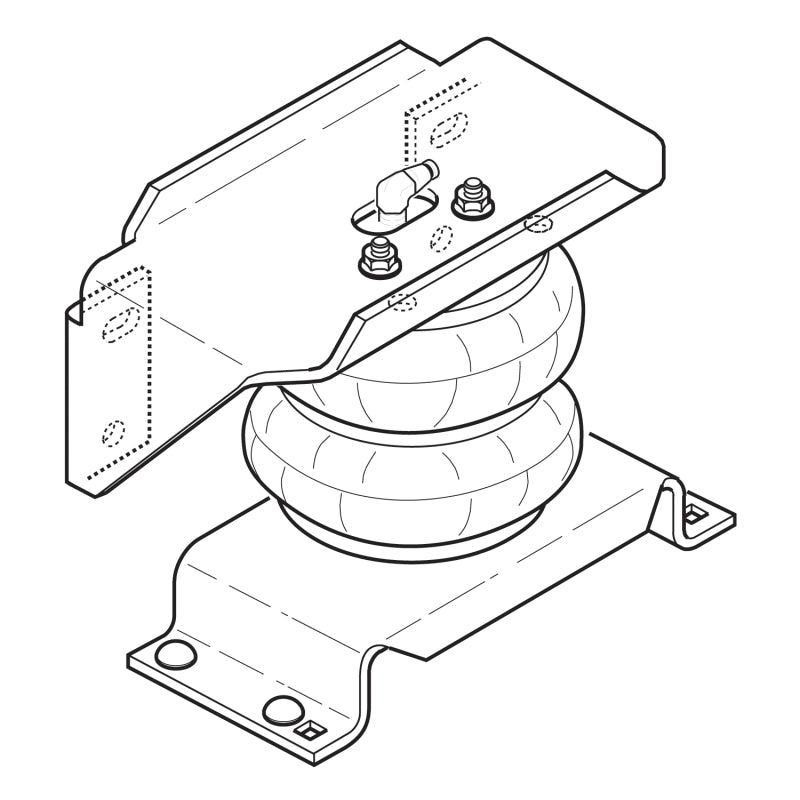

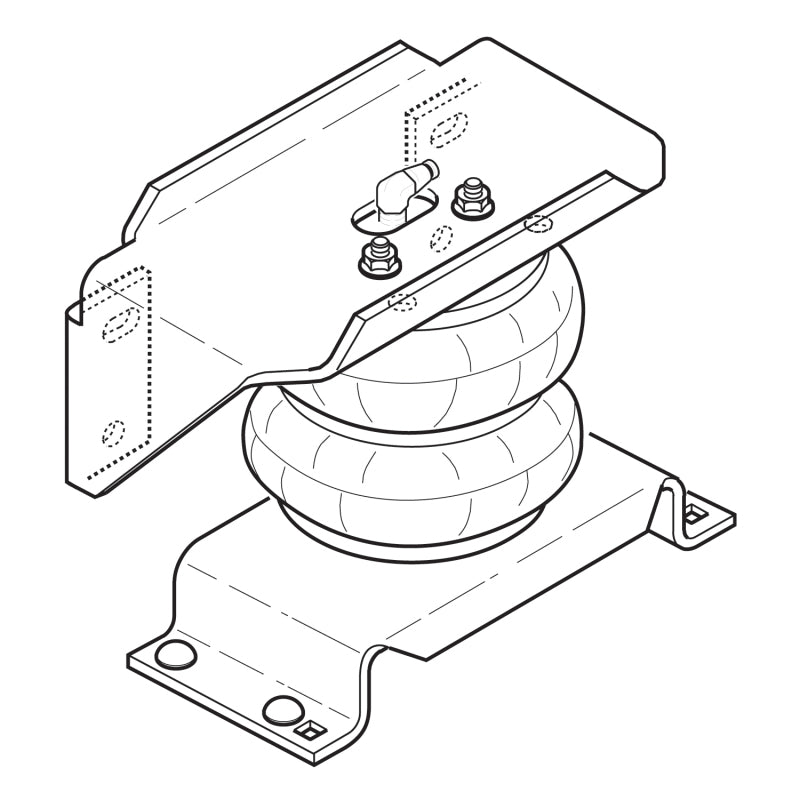

• Upper brackets mount to outside of frame
• Lower brackets mount on top of leaf spring pack
• Each air spring pressure tested before leaving factory
• Compatible with Firestone Air Command wireless and analog systems

Specifications

• Part Number: 2176 (W21-760-2176)
• Brand: Firestone Ride-Rite
• Type: Rear air helper spring kit
• Position: Rear axle
• Air Spring Style: Double convoluted
• Load Capacity: 3,200-5,000 lbs per set
• Operating Pressure: 5-100 PSI
• Inflation: Manual (Schrader valves included)
• Installation: Drilling required
• UPC: 767555095232
• Warranty: Lifetime air spring / 2-year components

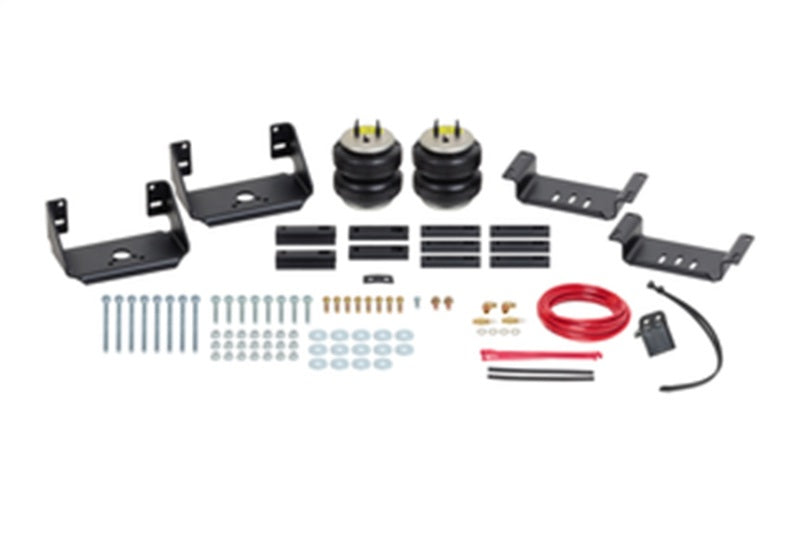

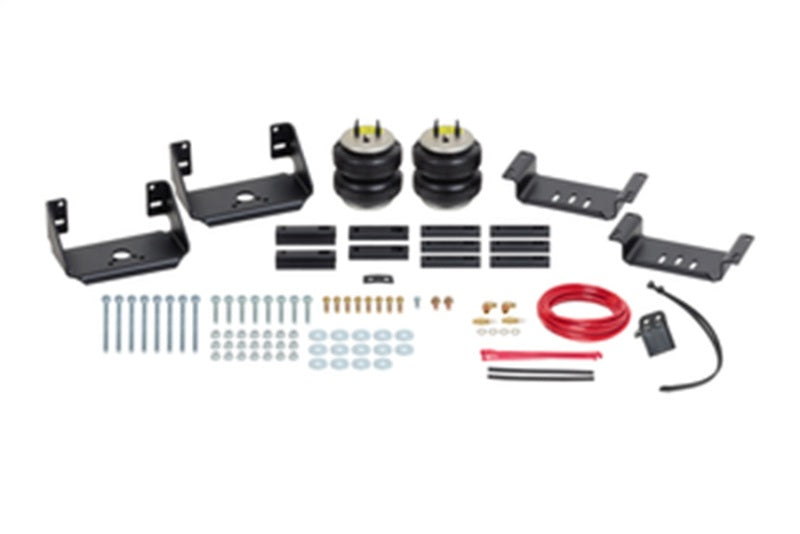

Included Components

• 2x Double convoluted air springs
• Upper and lower mounting brackets
• Air line tubing
• Individual inflation valves (Schrader)
• Mounting hardware (bolts, nuts, spacers)
• Installation instructions

Product Description

The Firestone 2176 Ride-Rite rear air helper spring kit is designed for Ford F-350/F-450 Super Duty and GM Silverado/Sierra 3500HD cab and chassis models. These heavy-duty double convoluted air springs mount between the frame and leaf spring suspension, providing 3,200 to 5,000 lbs of adjustable load leveling capacity per set. Individual inflation valves allow independent side-to-side and front-to-rear adjustment from 5 to 100 PSI, keeping the truck level under off-center or variable loads. The system reduces inter-leaf friction for a smoother ride, improves braking effectiveness and steering control under load, and helps prevent suspension sag and bottoming out.

This kit is specifically engineered for cab and chassis configurations -- flatbeds, service bodies, utility trucks, and similar upfit applications. It will NOT fit F-350 or F-450 models with a factory pickup bed (use Firestone 2550 or 2583 respectively). Installation requires drilling and typically takes 1-2 hours. Minimum tire-to-frame clearance of 7.5 inches is required on both sides. The kit includes everything needed for installation; optional Firestone Air Command compressor and wireless control systems are available separately. Backed by Firestone's lifetime air spring warranty and 2-year component warranty.
