Firestone 2863 Ride-Rite All-In-One Analog Air Spring Kit for 1999-04 Ford F-250

Vehicle Fitment

• 1999-2004 Ford F-250 Super Duty (2WD/4WD, excluding 6.8L V10 SuperCab with 8' bed)
• 1999-2004 Ford F-350 Super Duty (2WD/4WD, excluding 6.8L V10 SuperCab with 8' bed)
• 2008-2010 Ford F-250 Super Duty (2WD/4WD)
• 2008-2010 Ford F-350 Super Duty (2WD/4WD)

Features

• Provides up to 5,000 lbs of load-leveling capacity
• Adjustable air pressure from 5 to 100 PSI
• Helps reduce sag and bottoming out when towing or hauling
• Improves ride quality by absorbing road shock
• Enhances braking effectiveness and steering control
• Compatible with in-bed hitches
• No-drill installation utilizing existing factory holes
• Includes analog air compressor for easy air pressure adjustment

Specifications

• Location: Rear axle
• Load Capacity: Up to 5,000 lbs
• Max Air Pressure: 100 PSI
• Min Air Pressure: 5 PSI
• Installation: No drilling required
• Compatibility: 2WD and 4WD models
• Compressor Type: Analog
• Compressor Mounting: No-drill mounting plate included

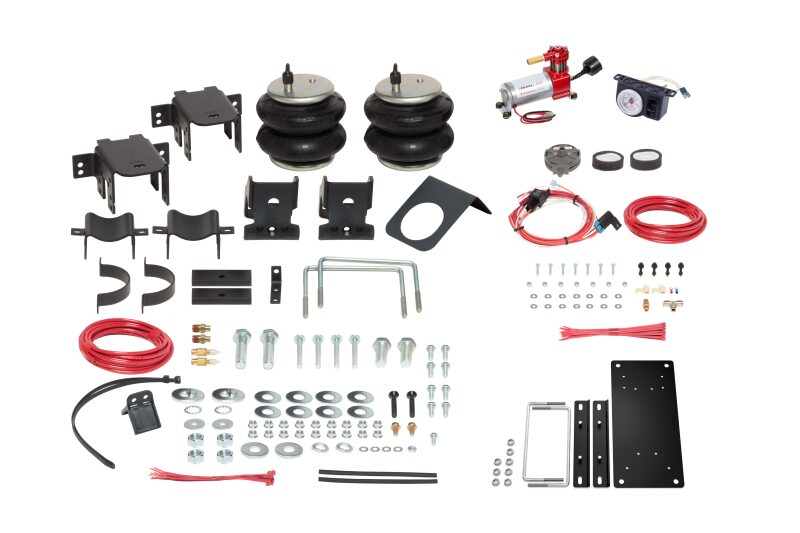

Included Components

• 2x Firestone Ride-Rite air springs
• Upper and lower mounting brackets
• Axle clamp bracket
• Heat shield
• Air line tube
• Inflation valve
• Installation hardware
• Firestone Level Command analog air compressor
• Compressor mounting plate
• Relay harness
• Air line fittings
• Air filter
• Compressor control switch
• Single analog gauge

Product Description

The Firestone 2863 Ride-Rite All-In-One Analog Air Spring Kit is designed to enhance the rear suspension of 1999-2004 Ford F-250 and F-350 Super Duty trucks, as well as 2008-2010 models. This comprehensive kit provides up to 5,000 lbs of load-leveling capacity, significantly improving ride quality and handling when towing or carrying heavy loads.

The kit includes adjustable air springs that can be inflated from 5 to 100 PSI, allowing you to fine-tune your suspension to match varying loads and road conditions. This adjustability helps reduce sag, bottoming out, and improves braking effectiveness and steering control. The included analog air compressor makes it easy to adjust the air pressure from the convenience of your truck.

Designed for easy installation, the kit utilizes existing factory holes, eliminating the need for drilling. The included no-drill compressor mounting plate simplifies the installation process, making it accessible for those with some mechanical experience.
